Detail: | Catalyst 9200 48-port Data Switch, Network Essentials |
Model: | C9200-48T-E |
Condition: | Factory Sealed New; DNA-E-48-3Year Included |
Related: | |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
16.0
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

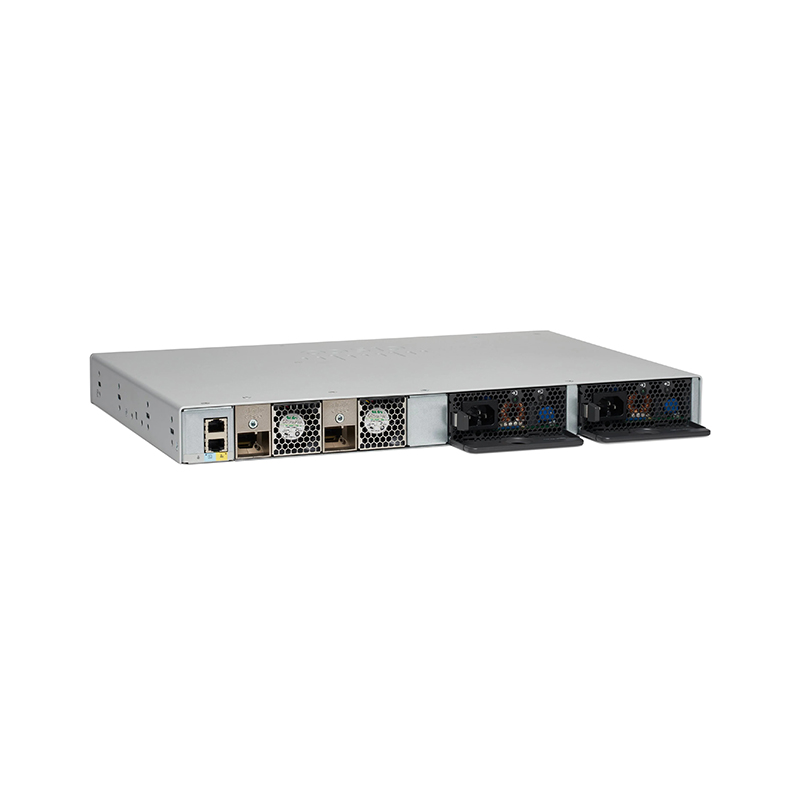

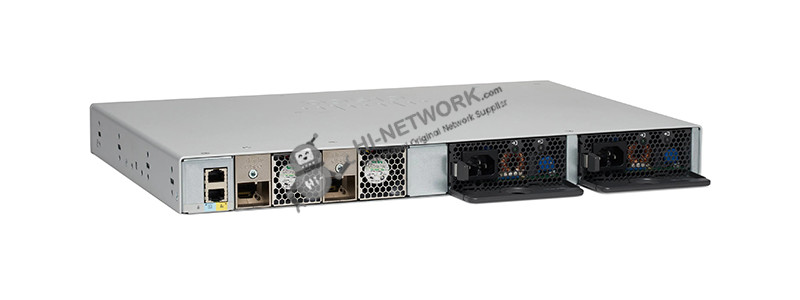

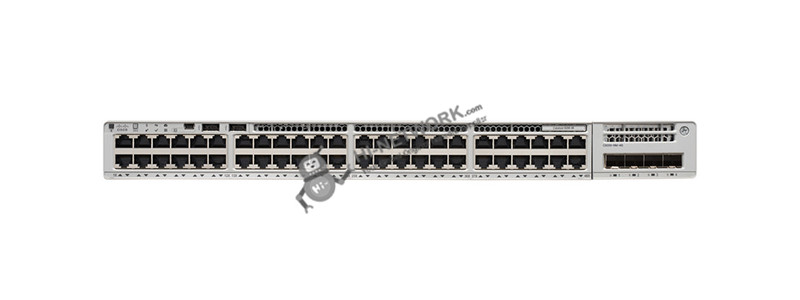

C9200-48T-E is the Catalyst 9200L 48-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise it is secure, always on, and IT simplified.
Product Code | C9200-48T-E |
Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data |
Uplink configuration | Modular uplink options |
Default primary AC power supply | PWR-C6-125WAC |
Fans | FRU redundant |
Software | Network Essentials |
Stack bandwidth | 160 Gbps |
DRAM | 4 GB |
Flash | 4G |
Switching capacity | 176 Gbps |
Forwarding rate | 261.9 Mpps |
Dimensions | 1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
●Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability
and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, AccessControl Lists (ACLs), and Quality of Service (QoS) entries
Model | Description |
Catalyst 9200 4 x 1GE Network Module | |
Catalyst 9200 4 x 10GE Network Module, spare | |
C9200-NM-BLANK | Catalyst 9200 BLANK Network Module |
C9200-STACK-KIT= | C9200 Stack Kit Spare |
C9200L Stack Kit Spare | |
STACK-T4-50CM | 50CM Type 3 Stacking Cable |
STACK-T4-1M | 1M Type 3 Stacking Cable |
STACK-T4-3M | 3M Type 3 Stacking Cable |
PWR-C6-125WAC/2= | 125WAC power supply spare |
Product number | Product description |
Catalyst 9200 48-port Data Switch, Network Advantage | |
Catalyst 9200 48-port Data Switch, Network Essentials | |
Catalyst 9200 48-port PoE+ Switch, Network Advantage | |
Catalyst 9200 48-port PoE+ Switch, Network Essentials |
Do you have any question about the C9200-48T-E?
Contact us now via [email protected]
Model | C9200-48T-E |
Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data |
Uplink configuration | Modular uplink options |
Default primary AC power supply | PWR-C6-125WAC |
Fans | FRU redundant |
Software | Network Essentials |
Chassis Dimensions | 1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Virtual Networks | 4 |
Stacking bandwidth | 160 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
IPv4 routing entries | 4,000 |
IPv6 routing entries | 2,000 |
Multicast routing scale | 1,000 |
QoS scale entries | 1,000 |
ACL scale entries | 1,600 |
Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
DRAM | 4 GB |
Flash | 4 GB |
VLAN IDs | 4096 |
Total Switched Virtual Interfaces (SVIs) | 1000 |
Jumbo frames | 9198 bytes |
Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
Switching capacity | 176 Gbps |
Forwarding rate | 261.9 Mpps |
Mean time between failures (hours) | 571,440 |
