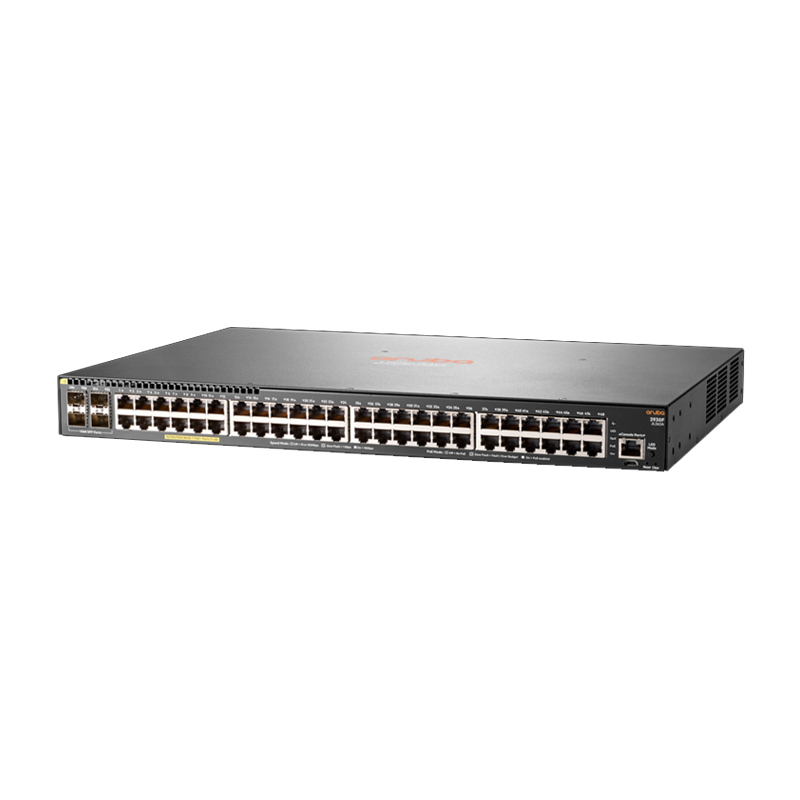

Aruba JL262A 2930F 48G PoE+ 4SFP Switch

1645
5
5/5.0
Q/A
21 Sold/Mon
Detail: Aruba 2930F 48G PoE+ 4SFP Switch
Model: Aruba 2930F JL262A
Condition: Factory Sealed New
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
7.6
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Aruba JL262A 2930F 48G PoE+ 4SFP Switch


Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL262A has 48 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.



Quick Specification


Table 1 shows the Quick Specification.

Model

JL262A

Description

Aruba 2930F 48G PoE+ 4SFP Switch

Differentiator

Popular Aruba 52-port Gig access switch with 370 Watts PoE+ power.

This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

Ports

(48) RJ-45 autosensing 10/100/1000 PoE+ ports

(4) SFP

Latency

1000 Mb Latency: < 3.8 µs

Throughput

up to 77.4 Mpps

Switching Capacity

104 Gbps

PoE Capability

370 W PoE+

Dimension

4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)

Weight

4.46 kg (9.83 lb)

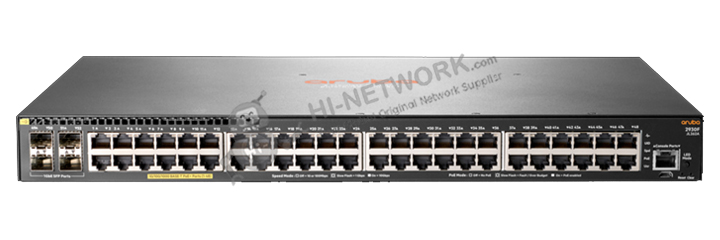

Figure 1 shows the appearance of JL262A.

front-panel-jl262a-datasheet

Product Details


Key Features

● Aruba Basic Layer 3 switch series with VSF stacking, static, Rip and Access OSPF Routing, ACLs, and robust QoS

● Consistent wired/wireless experience with Aruba AirWave and Aruba ClearPass Policy Manager

● Convenient built-in 1GbE or 10GbE uplinks and up to 370 W PoE+

● Ready for innovative SDN applications with OpenFlow support

● Simple deployment with Zero Touch Provisioning and cloud-based Aruba Central support


Compare to Similar Items


Table 2 shows the comparison.

Model

JL262A

JL258A

JL259A

JL260A

JL261A

Description

Aruba 2930F 48G PoE+ 4SFP Switch

Aruba 2930F 8G PoE+ 2SFP+ Switch

Aruba 2930F 24G 4SFP Switch

Aruba 2930F 48G 4SFP Switch

Aruba 2930F 24G PoE+ 4SFP Switch

I/O ports and slots

● 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

● 4 SFP

● 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

● 2 SFP+ 1/10GbE ports; PHY-less

● 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

● 4 SFP

● 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

● 4 SFP

● 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

● 4 SFP

Throughput

up to 77.4 Mp/s

up to 41.7 Mp/s

up to 41.7 Mp/s

up to 77.4 Mp/s

up to 41.7 Mp/s

Switching Capacity

104 Gb/s

56 Gb/s

56 Gb/s

104 Gb/s

56 Gb/s


Get More Information


Do you have any questions about the JL262A?

Contact us now via [email protected].

Specific Data Sheet:


JL262A Specification

Part Number

JL262A

Description

Aruba 2930F 48G PoE+ 4SFP Switch

Differentiator

Popular Aruba 52-port Gig access switch with 370 Watts PoE+ power.

This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

Ports

(48) RJ-45 autosensing 10/100/1000 PoE+ ports

(4) SFP

Memory and Processor

Dual Core ARM Cortex A9 @ 1016 MHz

1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress

4 GB eMMC

Latency

1000 Mb Latency: < 3.8 µs

Throughput

up to 77.4 Mpps

Switching Capacity

104 Gbps

PoE Capability

370 W PoE+

Management Features

Aruba AirWave

Central Network Management

IMC - Intelligent Management Center

Command-line interface

Web browser

Configuration menu

SNMP manager

Telnet

RMON1

FTP

Out-of-band management (serial RS-232C or micro USB)

Input Voltage

100 - 127 / 200 - 240 VAC, rate

Operating Temperature

32°F to 113°F (0°C to 45°C);

up to 5000 Feet, 0°C to 40°C (32°F to 104°F) up to 10000 Feet

Operating Humidity Rang

15% to 95%, noncondensing

Power Consumption

459 W (maximum)

Heat Dissipation

293 BTU/hr (309.1 kJ/hr)

Dimension

4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)

Weight

4.46 kg (9.83 lb)
