Aruba JL255A 2930F 24G PoE+ 4SFP+ Switch

USD

5 5/5.0 Reviews Q/A 32 Sold/Mon
Detail:	Aruba 2930F 24G PoE+ 4SFP+ Switch
Model:	Aruba 2930F JL255A
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 8.43	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Aruba JL255A 2930F 24G PoE+ 4SFP+ Switch

Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL255A has 24x 10/100/1000 PoE+ ports and 4x 1000/10G SFP+ transceiver slots for high-speed connectivity. PoE+ is supported with a power budget of 370 Watts.

Quick Specification

Table 1 shows the Quick Specification.

Model	JL255A
Description	Aruba 2930F 24G PoE+ 4SFP+ Switch
Differentiator	Popular Aruba 28-port Gig + 10G access switch with 370 Watts PoE+ power. This model has 24x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Ports	(24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less
Latency	1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
Throughput	up to 95.2 Mpps
Switching Capacity	128 Gbps
PoE Capability	370 W PoE+
Dimension	4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
Weight	3.9 kg (8.6 lb)

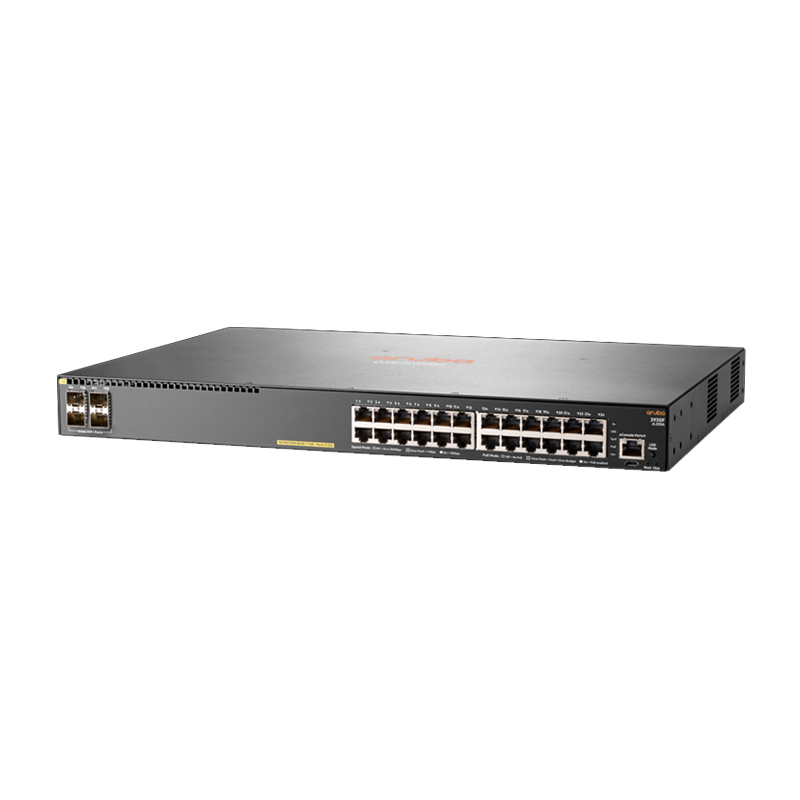

Figure 1 shows the appearance of JL255A.

front-panel-jl255a-datasheet

Product Details

Key Features

● Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.

● Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.

● Scale with 8 chassis VSF stacking.

● Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+

Compare to Similar Items

Table 2 shows the comparison.

Model	JL255A	JL256A	JL253A	JL254A
Description	Aruba 2930F 24G PoE+ 4SFP+ Switch	Aruba 2930F 48G PoE+ 4SFP+ Switch	Aruba 2930F 24G 4SFP+ Switch	Aruba 2930F 48G 4SFP+ Switch
I/O ports and slots	● 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only ● 4 SFP+ 1/10GbE ports; PHY-less	● 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE T/100BASETX: half or full 1000BASE-T: full only ● 4 SFP+ 1/10GbE ports; PHY-less	● 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ● 4 SFP+ 1/10GbE ports; PHY-less	● 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only ● 4 SFP+ 1/10GbE ports; PHY-less
Throughput	up to 95.2 Mp/s	up to 112.0 Mp/s	up to 95.2 Mp/s	up to 112.0 Mp/s
Switching Capacity	128 Gb/s	176 Gb/s	128 Gb/s	176 Gb/s

Get More Information

Do you have any questions about the JL255A?

Specific Data Sheet:

JL255A Specification
Part Number	JL255A
Description	Aruba 2930F 24G PoE+ 4SFP+ Switch
Differentiator	Popular Aruba 28-port Gig + 10G access switch with 370 Watts PoE+ power. This model has 24x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Ports	(24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC
Latency	1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
Throughput	up to 95.2 Mpps
Switching Capacity	128 Gbps
PoE Capability	370 W PoE+
Management Features	Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Input Voltage	100 - 127 / 200 - 240 VAC, rated
Operating Temperature	32°F to 113°F (0°C to 45°C); up to 5000 Feet, 0°C to 40°C (32°F to 104°F) up to 10000 Feet
Operating Humidity Rang	15% to 95%, noncondensing
Power Consumption	445 W (maximum)
Heat Dissipation	258 BTU/hr (272.2 kJ/hr)
Dimension	4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
Weight	3.9 kg (8.6 lb)
