Model

AP11D (RW)

Product Number

R2X16A

Description

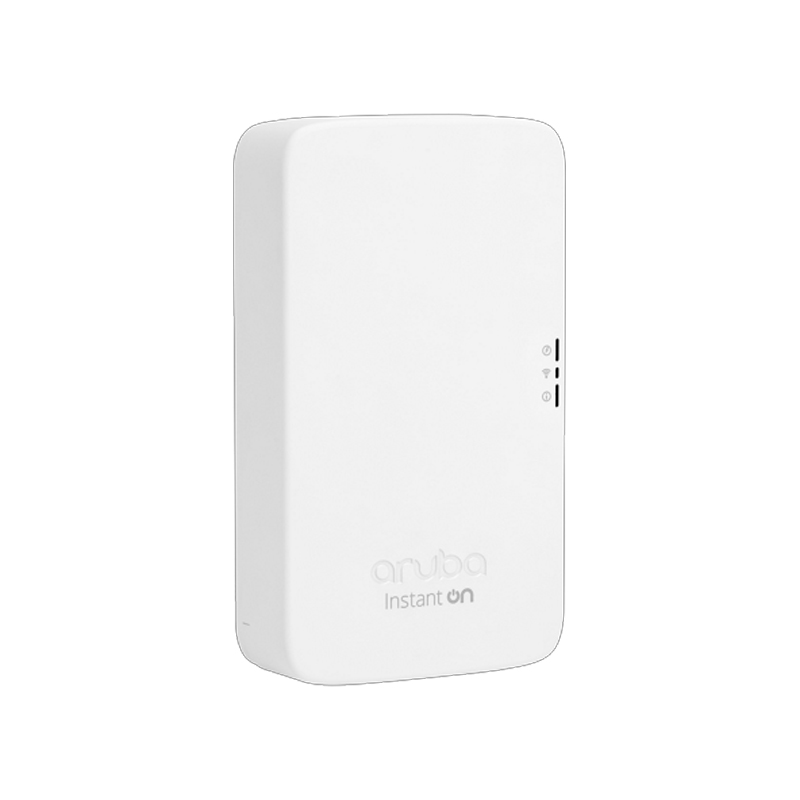

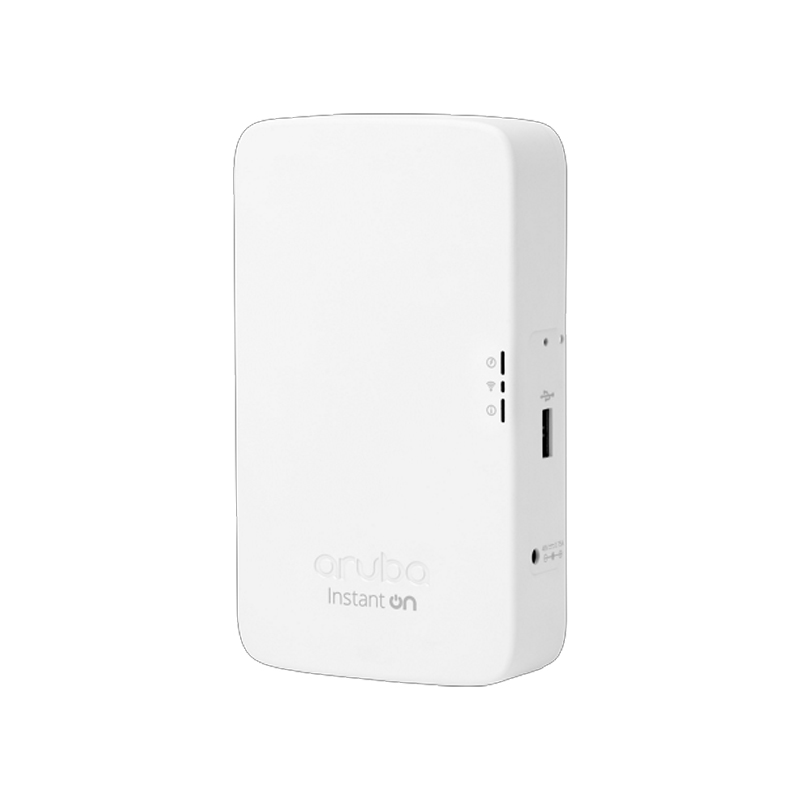

Aruba Instant On AP11D (RW) 2x2 11ac Wave2 DeskWall Access Point

Differentiator

Aruba Instant On AP11D Desk/Wall Access Points offer a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for low- to medium-density small business environments requiring enhanced security and high performance like medical clinics, SOHO, or Airbnb. These cost-effective access points are ideal for small businesses scaling up to 25 access points without additional cost and complexity. Regulatory domain of Rest of World.

Certifications

UL 2043 plenum rating

EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)

Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Input voltage

Power over Ethernet (POE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled

DC power (48V): no restrictions

Power sources are sold separately.

Wi-Fi antenna

Integrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz.

Connectivity, standard

IEEE 802.11ac, 802.11n

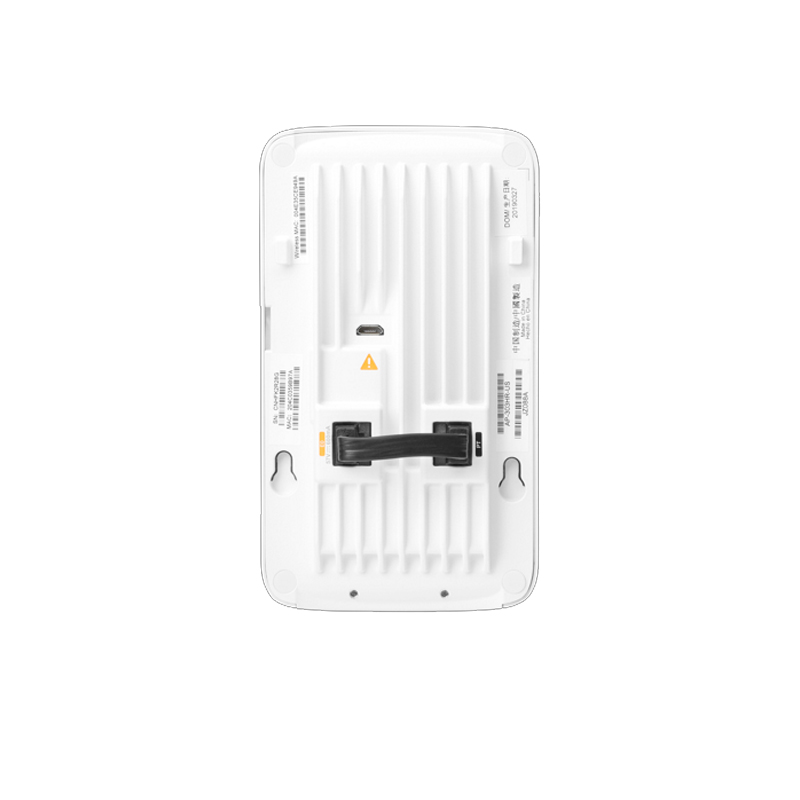

Ports

(1) uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af)

(3) downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af)

Mounting

The access point ships with single gang wall-box mount kit and desk mount kit.

Radio coverage

Dual Radio for simultaneous dual-band operation

5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)

2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Warranty

Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

Dimension

150 x 86 x 40 mm (5.9 x 3.4 x 1.6 in)

Weight

313 g (0.7 lb)
