Aruba AP-504 (RW) (R2H22A) Dual Radio 802.11ax External Antennas Unified Campus Access Point

USD

5 5/5.0 Reviews Q/A 98 Sold/Mon
Detail:	Aruba AP-504 (RW) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP
Model:	Aruba AP-504 (RW) (R2H22A)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1.9	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Aruba AP-504 (RW) (R2H22A) Dual Radio 802.11ax External Antennas Unified Campus Access Point

Supporting the latest Wi-Fi 6 standard, the 500 Series can achieve a maximum aggregate data rate of 1.77 Gbps (1.774 Gbps) for venues and workplaces such as schools, midsize offices, and retailers. The Aruba 500 Series APs are also designed to provide improved user experiences by integrating key Wi-Fi optimization technologies for increased Wi-Fi efficiency and optimized client airtime.

Quick Specification

Table 1 shows the Quick Specification.

Model	R2H22A
Series	Aruba AP-504 (RW)
AP type	Indoor, dual radio, 5 GHz and 2.4 GHz 802.11ax 2x2 MIMO
Description	AP-504 (RW) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP
Dimension (excluding mount accessories)	160 mm (W) x 161 mm (D) x 37 mm (H)
Weight	500 g
OperatingTemperature	0°C to +50°C / +32°F to +122°F
Storage Temperature	-40°C to +70°C / -40°F to +158°F
Humidity	5% to 93% non-condensing
Maximum number of BSSIDs	16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply)	● 2.400 to 2.4835 GHz ● 5.150 to 5.250 GHz ● 5.250 to 5.350 GHz ● 5.470 to 5.725 GHz ● 5.725 to 5.850 GHz ● 5.850 to 5.895 GHz
Antenna	2 External detachable Antenna
Maximum No. of associated client devices	Up to 256 associated client devices per radio
Supported data rates (Mbps)	● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36,48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM ● 802.11ax (2.4 GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) ● 802.11ax (5 GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

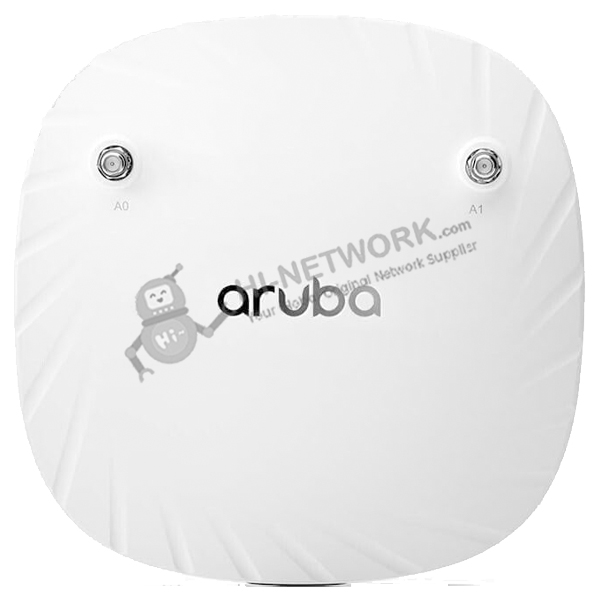

Figure 1 shows the appearance of R2H22A.

front-panel-r2h22a-datasheet

Product Details

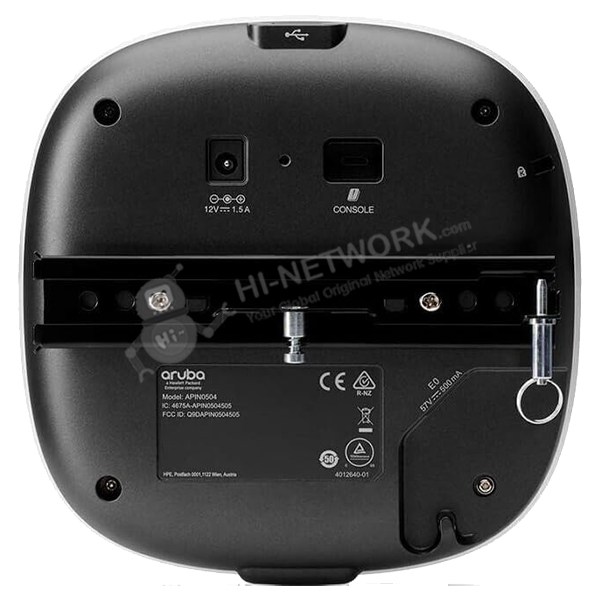

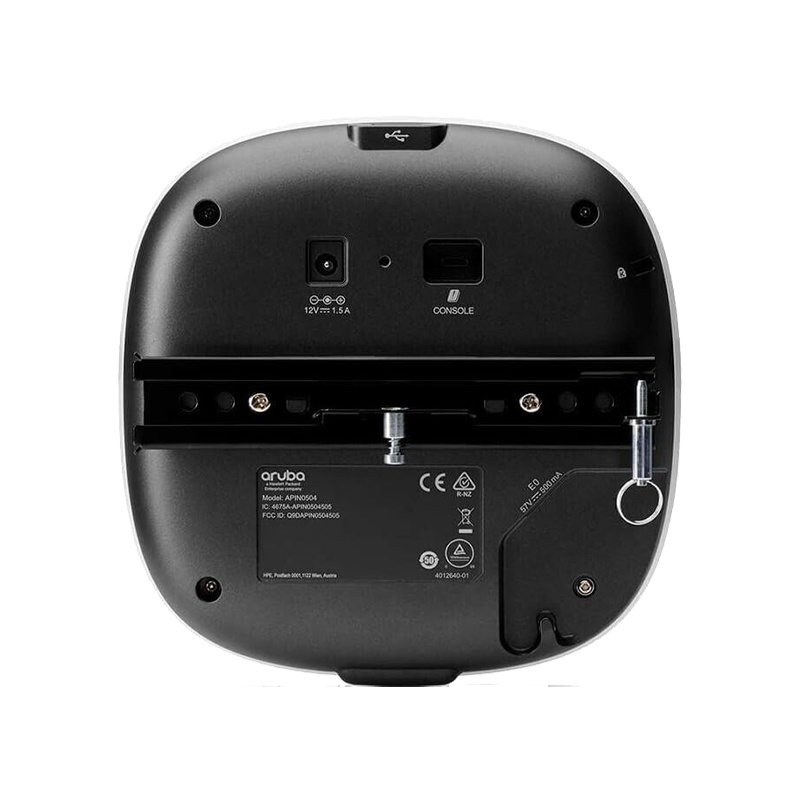

Figure 2 shows the back panel of R2H22A.

back-panel-r2h22a-datasheet

Key Features

● 1.49 Gbps maximum real-world speed (HE80/HE20)

● WPA3 and Enhanced Open security

● Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices

● OFDMA for enhanced multi-user efficiency

● IoT-ready Bluetooth 5 and Zigbee support

The Accessories

Table 2 shows the accessories of R2H22A.

Mount Kit
R3J18A	AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface
R3J19A	AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box
Power Adaptor
R3K00A	AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector
External Antenna
JW009A	AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor Antenna

Compare to Similar Items

Table 3 shows the comparison.

Model	R2H22A	R2H23A
Description	HPE Aruba Networking AP-504 (RW) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP	HPE Aruba Networking AP-504 (US) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP
Type	Wireless	Wireless
Data Transfer Rate	1.2 Gbps	1.2 Gbps
Frequency Band	2.4 GHz, 5 GHz	2.4 GHz, 5 GHz
Interfaces	1 x 1000Base-T - RJ-45 1 x USB 2.0 - Type A 2 x antenna - RP-SMA x 2 1 x console - micro-USB	1 x 1000Base-T - RJ-45 1 x USB 2.0 - Type A 2 x antenna - RP-SMA x 2 1 x console - micro-USB
Power Consumption Operational	8.9 Watt	8.9 Watt
Antenna	External detachable	External detachable

Get More Information

Do you have any questions about the R2H22A?

Specific Data Sheet:

R2H22A Specification
Series	Aruba AP-504 (RW)
AP type	Indoor, dual radio, 5 GHz and 2.4 GHz 802.11ax 2x2 MIMO
Description	AP-504 (RW) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP
Dimension (excluding mount accessories)	160 mm (W) x 161 mm (D) x 37 mm (H)
Weight	500 g
OperatingTemperature	0°C to +50°C / +32°F to +122°F
Storage Temperature	-40°C to +70°C / -40°F to +158°F
Humidity	5% to 93% non-condensing
5GHz radio	Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices
2.4GHz radio	Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices
Maximum number of BSSIDs	16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply)	● 2.400 to 2.4835 GHz ● 5.150 to 5.250 GHz ● 5.250 to 5.350 GHz ● 5.470 to 5.725 GHz ● 5.725 to 5.850 GHz ● 5.850 to 5.895 GHz
Available channels	Dependent on configured regulatory domain.
Supported radio technologies	● 802.11b: Direct-sequence spread-spectrum (DSSS) ● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) ● 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units
Supported modulation types	● 802.11b: BPSK, QPSK, CCK ● 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) ● 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) ● 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Antenna	2 External detachable Antenna
Maximum No. of associated client devices	Up to 256 associated client devices per radio
Supported data rates (Mbps)	● 802.11b: 1, 2, 5.5, 11 ● 802.11a/g: 6, 9, 12, 18, 24, 36,48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM ● 802.11ax (2.4 GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) ● 802.11ax (5 GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
802.11n high-throughput (HT) support	HT 20/40
802.11ac very high throughput (VHT) support	VHT 20/40/80
802.11ax high efficiency (HE) support	HE 20/40/80
802.11n/ac/ax packet aggregation	A-MPDU, A-MSDU
Transmit power	Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)	● 2.4 GHz band: +21 dBm (18 dBm per chain) 5 GHz band: +21 dBm (18 dBm per chain) ● Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Certifications	● UL2043 plenum rating ● Wi-Fi Alliance: – Wi-Fi CERTIFIED a, b, g, n, ac – Wi-Fi CERTIFIED 6 (ax) – WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) – WMM, WMM-PS, W-Fi Agile Multiband – Passpoint (release 2) – Wi-Fi CERTIFIED Location™ ● Bluetooth SIG ● Ethernet Alliance (PoE, PD device, class 4)
