Detail: HPE Aruba Networking 7205 (RW) 2-port 10GBASE-X (SFP+) Controller
Model: Aruba 7205 (RW) (JW735A)
Condition: Factory Sealed New
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
12.8
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Aruba 7205 (RW) (JW735A) 2-port 10GBASE-X (SFP+) Controller


JW735A is the network management device. The Aruba 7200 Series Mobility Controllers is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.



Quick Specification


Table 1 shows the Quick Specification.

Model

7205 (RW)

Part Number

JW735A

Description

HPE Aruba Networking 7205 (RW) 2-port 10GBASE-X (SFP+) Controller

Dimensions (H x W x D)

4.4 cm x 44.2 cm x 33.4 cm (1.75" x 17.38" x 13.13")

Weight

4.95 kg (10.19 lbs)

Operating Temperature

0° C to 40° C

Storage Temperature

-40° C to 70° C

Humidity/Storage Humidity

10% to 95%, NC

Operating Altitude

10,000 feet

Acoustic Noise1

49 dBA

Maximum Heat Dissipation (BTU/hour)

260

Maximum Power Consumption

75.2W

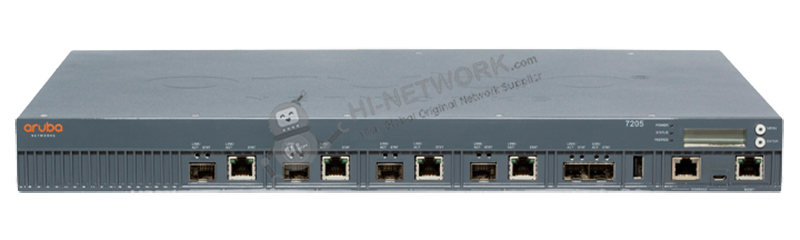

Figure 1 shows the appearance of JW735A.

front-panel-jw735a-datasheet



Product Details

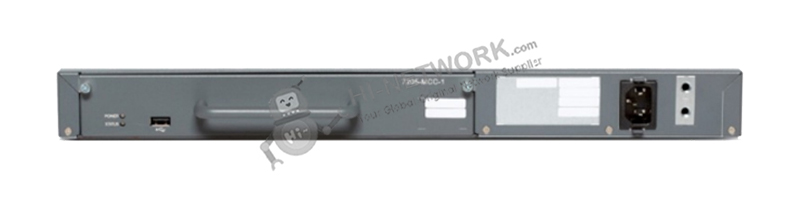

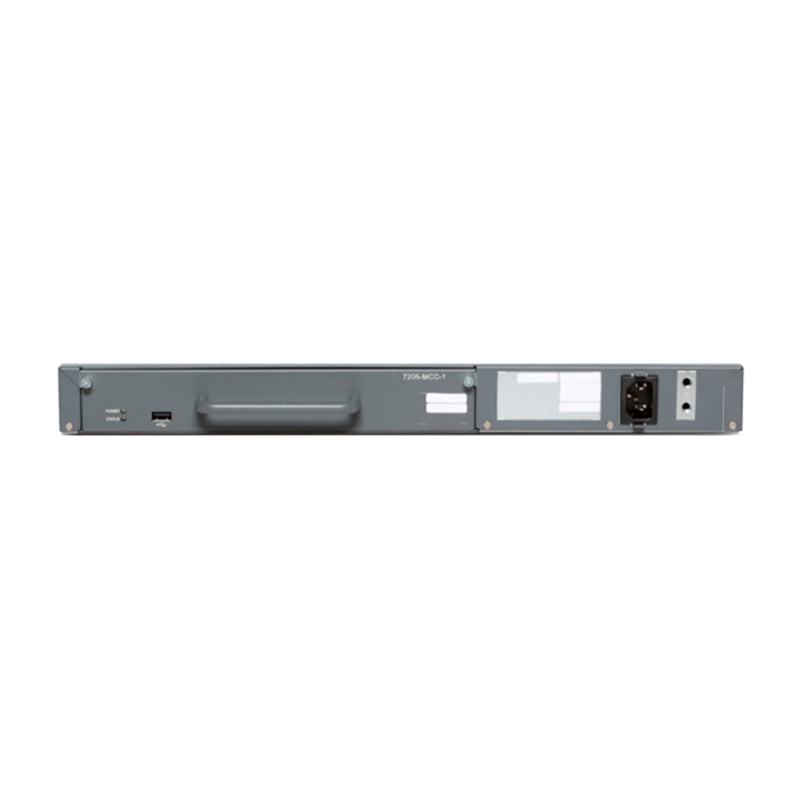

Figure 2 shows the back panel of JW735A.

front-panel-jw735a-datasheet



Key Features


●Support for new Wi-Fi 6 (802.11ax), WPA3 and Enhanced Open—and existing standards

● Patented ClientMatch technology can now group together Wi-Fi 6-capable devices

● Dynamic Segmentation enforces wired and wireless access policies to simplify and secure the network

● Application awareness for 3,000+ applications without additional hardware

● Built in AI-powered wireless/RF optimization

Unifies policy enforcement for WLAN, LAN and WAN traffic



Compare to Similar Items


Table 2 shows the comparison of 7200 Series.

Model

7205

7210

Maximum campus or remote AP licenses

256

512

Maximum concurrent users/devices

8,192

16,384

Maximum VLANs

4,096

4,096

Active firewall sessions

1 million (M)

2M

Concurrent GRE tunnels

4,096

8,192

Concurrent IPsec sessions

8,192

16,384

Concurrent SSL sessions

4,096

8,192

Firewall throughput (Gbps)

12

20

Wired Bridged throughput (Gbps)

12

20

Encrypted throughput 3DES (Gbps)

5

7

Encrypted throughput AES-CBC-256 (Gbps)

5

7

Encrypted throughput AES-CCM (Gbps)

5

7

Encrypted throughput AES-GCM-256 (Gbps)

5

7


Get More Information


Do you have any questions about the JW735A?

Contact us now via [email protected].

Specific Data Sheet:


JW735A Specification

Model

7205 (RW)

Part Number

JW735A

Description

HPE Aruba Networking 7205 (RW) 2-port 10GBASE-X (SFP+) Controller

Dimensions (H x W x D)

4.4 cm x 44.2 cm x 33.4 cm (1.75" x 17.38" x 13.13")

Weight

4.95 kg (10.19 lbs)

MTBF (Hours)

129,597 (@40C)

Operating Temperature

0° C to 40° C

Storage Temperature

-40° C to 70° C

Humidity/Storage Humidity

10% to 95%, NC

Operating Altitude

10,000 feet

Acoustic Noise1

49 dBA

Maximum Heat Dissipation (BTU/hour)

260

Maximum Power Consumption

75.2W

Power Source

Internal power supply

Maximum campus or remote AP licenses

256

Maximum concurrent users/devices

8,192

Maximum VLANs

4,096

Active firewall sessions

1 million (M)

Concurrent GRE tunnels

4,096

Concurrent IPsec sessions

8,192

Concurrent SSL sessions

4,096

Firewall throughput (Gbps)

12

Wired Bridged throughput (Gbps)

12

Encrypted throughput 3DES (Gbps)

5

Encrypted throughput AES-CBC-256 (Gbps)

5

Encrypted throughput AES-CCM (Gbps)

5

Encrypted throughput AES-GCM-256 (Gbps)

5

Form factor/footprint

1xRU

10/100/1000BASE-T

4xCombo

1000BASE-X

4xCombo

10G Ports (10G or 1G supported)

2xSFP+

40G Ports

-

USB 2.0

2

Management/status LEDs

Yes

LINK/ACT and status LEDs

Yes

LCD panel and navigation buttons

Yes

Console port

micro USB, RJ-45

Out-of-band management port

Yes

Regulatory SKU information

ARCN7205 (7205)

ARCN0100 (7210)

ARCN0101 (7220)

ARCN0102 (7240XM)

ARCN7280 (7280)

Minimum ArubaOS Release

6.4.3.0 (7205)

6.2.0.0 (7210)

6.2.0.0 (7220)

6.4.4.0 (7240XM)

6.5.4.0 or 8.3.0.0 (7280)

802.11ax (Wi-Fi 6), AOS 8.4; WI-FI CERTIFIED WPA3™, AOS 8.4; WI-FI CERTIFIED Enhanced Open™, AOS 8.4

Regulatory and Safety Compliance

FCC Part 15 Class A CE

Industry Canada Class A

VCCI Class A (Japan)

EN 55022 Class A (CISPR 22 Class A), EN 61000-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55024, AS/NZS 3548

UL 60950, EN 60950

CAN/CSA 22.2#60950

CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC

Telco

Common Language Equipment Identifier (CLEI) Code
