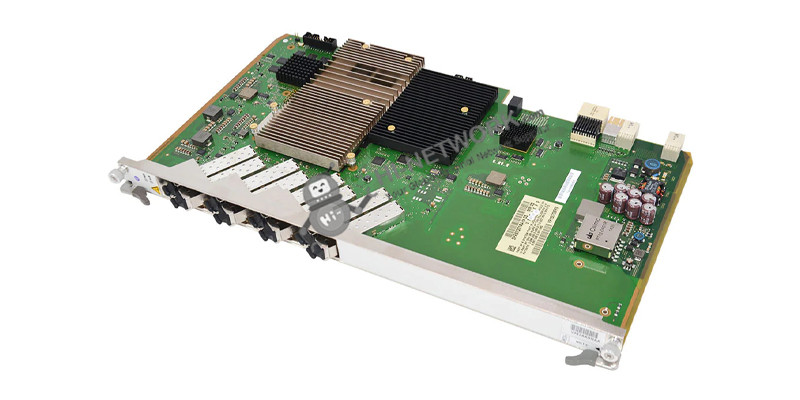

Alcatel NGLT-C 7360 ISAM FX 8-port GPON OLT line termination board with full C+ module

USD

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	NOKIA Alcatel-Lucent 7360 ISAM FX 8-port GPON OLT line termination board
Model:	NGLT-C
Condition:	New; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 18	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Alcatel NGLT-C 7360 ISAM FX 8-port GPON OLT line termination board with full C+ module

NOKIA Alcatel-Lucent ISAM NGLT-C is a Gigabit Passive Optical Network (GPON) line termination card with 8 GPON interfaces. With a single line card service providers can connect more than 2,000 subscribers or 32,000 subscribers in a fully filled rack configuration.

Quick Specification:

Model	ISAM NGLT-C
GPON Port	8-GPON Port
Type	C+ Module: Single Fiber Bidirectional Optical Module, Class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Dimensions (W x D x H)	405 mm x 225/205 mm 15.9 in. x 8.6/8.1 in.

The Front Panel:

nglt-c-datasheet

Get More Information

Do you have any question about the NGLT-C?

Specific Data Sheet:

Model	NGLT-C
Service ports
GPON Port	8-GPON Port
GPON SFP Module Specification
Type	C+ Module: Single Fiber Bidirectional Optical Module, Class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	30km/60km (18.6mi/37.3mi)
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Device Specifications
Weight	0.9kg
Dimensions (W x D x H)	405 mm x 225/205 mm 15.9 in. x 8.6/8.1 in.
Maximum number of ONTs per PON	128
Maximum number of UNIs per PON	768
Maximum number of TCONTs per PON	1024
Maximum number of GEM ports per PON	2048
