Detail: | Cisco 2500 Controller AIR-CT2504-5-K9 2504 Wireless Controller with 5 AP Licenses |
Model: | AIR-CT2504-5-K9 |
Condition: | New; In Stock |
Related: | AIR-CT2504-15-K9 EOL Replaced by AIR-CT3504 Cisco Wireless LAN Controller for 15 AP AIR-CT2504-25-K9 Cisco Wireless LAN Controller for 25 AP AIR-CT2504-50-K9 Cisco Wireless LAN Controller for 50 AP |
Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
3.8
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

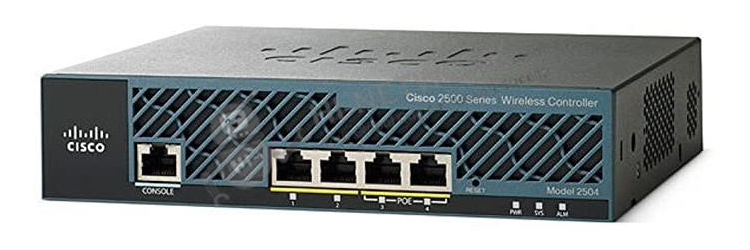

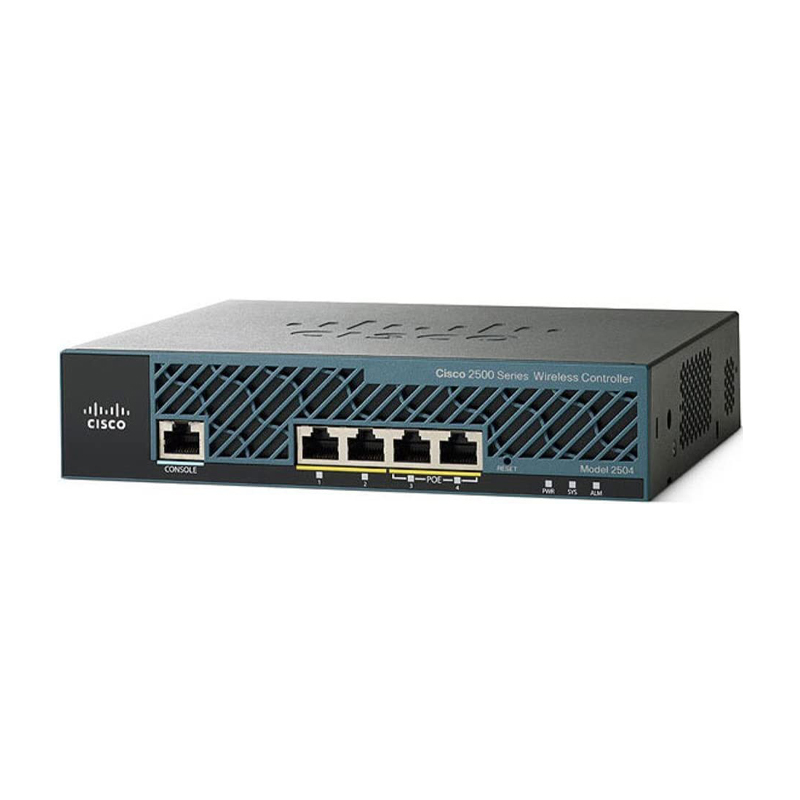

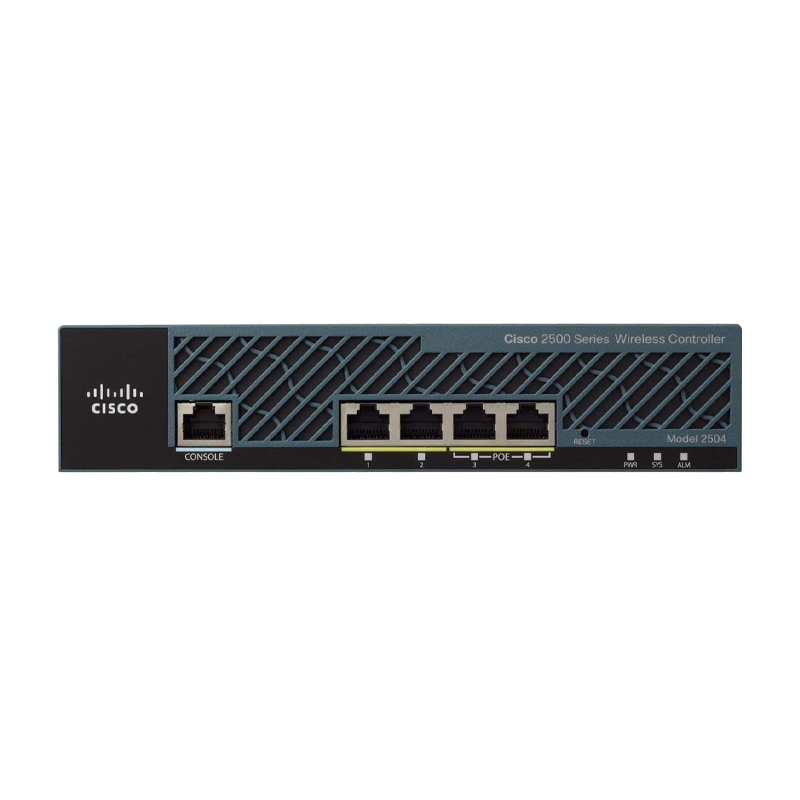

Cisco 2500 Series Wireless Controllers are ideal for small to medium-sized enterprise and branch office. AIR-CT2504-5-K9 includes 5 access points licenses and delivers 802.11n performance and scalability in 1 Gbps throughput.
Product Code | AIR-CT2504-5-K9 |
Target deployments | Small or midsize |
Form Factor | Desktop |
Access points | 5 licenses include |
Max Access Points | 75 licenses max |
Max Client Support | 1000 |
Ports | 4 x 10/100/1000 ports |
Console ports | 10/100/1000 RJ-45 |
Wireless standards | 802.11a/b/g/d/e/h/k/n/r/u/w/ac |
Max throughput | 1 Gbps |
Max WLANs | 16 |
Max VLANs | 16 |
Redundant power | No |
Redundant fans | Built-in fan |
Max Power consumption | 80W |
Note:

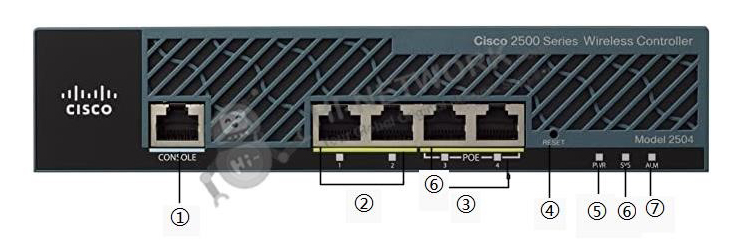

(1) | CPU console port | (5) | Power LED |
(2) | 2 GigE ports | (6) | System LED |
(3) | 2 GigE POE ports | (7) | Alarm LED |
(4) | Reset button |
Do not connect a Power over Ethernet (PoE) cable to the console port. It will damage the controller.
LED | Color | Description |
Power LED | Green | Power is on |
Off | No power to the system | |
System LED | Blinking Amber | Boot-loader is active and waiting for user input from the system console. |
Blinking Green | Boot-loader or booting. | |
Green | Normal System Operation. | |
Amber | System failed the bootup process or an error caused the system to halt. A status or error message is posted on the console screen. | |
Off | System not receiving power. | |
Alarm LED | Blinking Green | Controller image upgrading. |
Amber | Controller status activity, such as firmware upgrade. | |
Blinking Amber | Controller error. |
Note:

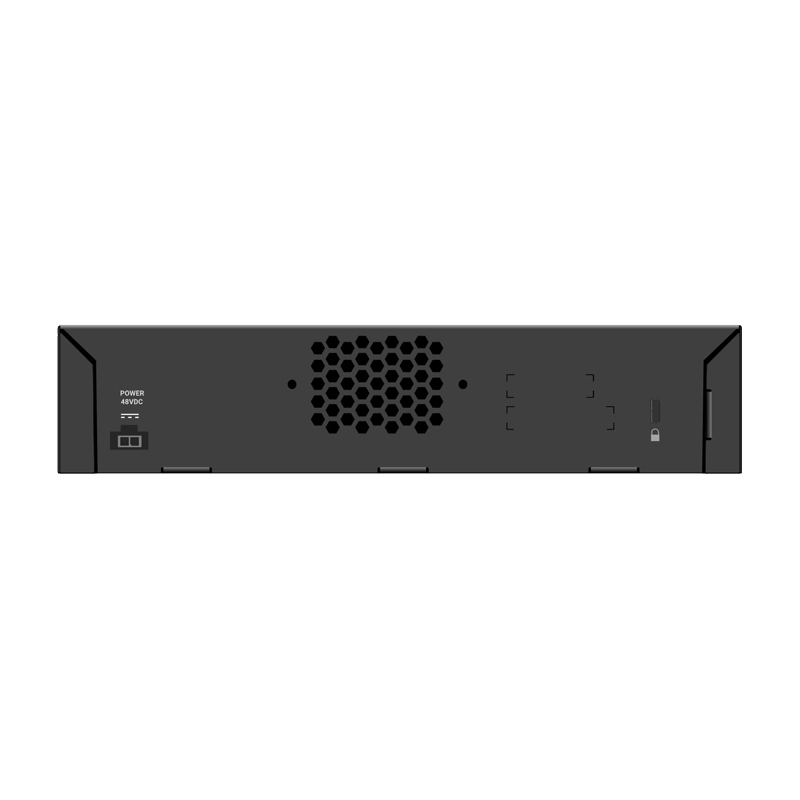

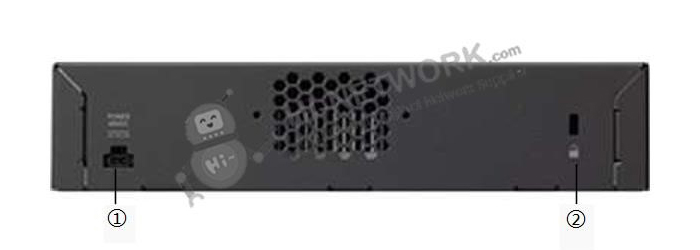

(1) | POWER 48VDC | (2) | Cable Lock slot |
Table 3 shows some recommended licenses for this wireless controller.
License | Description |
AIR-CT2504-RMNT | Cisco 2500 Wireless Controller Accessory - AIR-CT2504-RMNT 2504 Wireless Controller Rack Mount Bracket for Cisco 2500 |
L-LIC-CT2504-1A | Cisco 2500 Wireless Controller License - L-LIC-CT2504-1A 1 AP Adder Licenses for 2504 WLAN Controller for Cisco 2500 |
L-LIC-CT2504-5A | Cisco 2500 Wireless Controller License - L-LIC-CT2504-5A 5 AP Adder Licenses for 2504 WLAN Controller (e-Delivery) for Cisco 2500 |
L-LIC-CT2504-25A | Cisco 2500 Wireless Controller License - L-LIC-CT2504-25A 25 AP Adder Licenses for 2504 WLAN Controller (e-Delivery) for Cisco 2500 |
Models | AIR-CT2504-5-K9 | |||
Access Points | 5 | 15 | 25 | 50 |
Max Access Points | 75 | 75 | 75 | 75 |
Max Client Support | 1000 | 1000 | 1000 | 1000 |
Ports | 4 x 10/100/1000 ports | 4 x 10/100/1000 ports | 4 x 10/100/1000 ports | 4 x 10/100/1000 ports |
Do you have any question about the AIR-CT2504-5-K9?
Contact us now via [email protected].
AIR-CT2504-5-K9 Specification | |
Access points | 5 licenses include (75 licenses max) |
Device Type | Wireless controller |
Ports | 4 * 10/100/1000 ports |
Console ports | 10/100/1000 RJ-45 |
Wireless standards | 802.11a/b/g/d/e/h/k/n/r/u/w/ac |
Access point License | ● 1 AP license: L-LIC-CT2504-1A ● 5 AP license: L-LIC-CT2504-5A ● 25 AP license: L-LIC-CT2504-25A |
Security standards | ● Wi-Fi Protected Access (WPA) ● IEEE 802. 1 1i (WPA2, RSN) ● RFC 1321 MD5 Message-Digest Algorithm ● RFC 1851 The ESP Triple DES Transform ● RFC 2104 HMAC: Keyed Hashing for Message Authentication ● RFC 2246 TLS Protocol Version 1.0 ● RFC 2401 Security Architecture for the Internet Protocol ● RFC 2403 HMAC-MD5-96 within ESP and AH ● RFC 2404 HMAC-SHA- 1-96 within ESP and AH ● RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ● RFC 2406 IP Encapsulating Security Payload (ESP) ● RFC 2407 Interpretation for ISAKMP ● RFC 2408 ISAKMP ● RFC 2409 IKE ● RFC 2451 ESP CBC-Mode Cipher Algorithms ● RFC 3280 Internet X.509 PKI Certificate and CRL Profile ● RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec ● RFC 3686 Using AES Counter Mode with IPsec ESP ● RFC 4347 Datagram Transport Layer Security ● RFC 4346 TLS Protocol Version 1.1 |
Encryption | ● WEP and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC) : RC4 40, 104 and 128 bits (both static and shared keys) ● Advanced Encryption Standard (AES) : CBC, CCM, Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP) ● DES: DES-CBC, 3DES ● Secure Sockets Layer (SSL) and Transport Layer Security (TLS) : RC4 128-bit and RSA 1024- and 2048-bit ● DTLS: AES-CBC |
Authentication, Authorization, and Accounting (AAA) | ● IEEE 802.1X ● RFC 2548 Microsoft Vendor-Specific RADIUS Attributes ● RFC 2716 PPP EAP-TLS ● RFC 2865 RADIUS Authentication ● RFC 2866 RADIUS Accounting ● RFC 2867 RADIUS Tunnel Accounting ● RFC 3576 Dynamic Authorization Extensions to RADIUS ● RFC 3579 RADIUS Support for EAP ● RFC 3580 IEEE 802. 1X RADIUS Guidelines ● RFC 3748 Extensible Authentication Protocol ● Web-based authentication ● TACACS support for management users |
Limitation | ● Does not support wired guest access ● Cannot be configured as an auto anchor controller. However you can configure it as a foreign controller ● Supports only multicast-multicast mode ● Does not support bandwidth contract feature ● Does not support access points in direct connect mode ● Does not support service port ● Apple Talk Bridging ● LAG ● Wired Guest |
