AIR-AP2802E-H-K9C Cisco Access Point 802.11ac External Antenna H Regulatory Domain Configurable

USD

859 ~~$2315~~ (63% OFF)

4.6 4.6/5.0 Reviews Q/A 3 Sold/Mon
Detail:	802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, H Regulatory Domain, Configurable
Model:	AIR-AP2802E-H-K9C
Condition:	Refurbished; In Stock
Replacement: C9120AXI-H CISCO Catalyst AP 9120AXI 802.11ax Indoor Internal Antenna H Domain
Related:	Cisco AIR-AP2802E-E-K9C Access Point 802.11ac External Antenna E Regulatory Domain Configurable Cisco AIR-AP2802E-H-K9 AP EOL replaced by C9120AXI External Antenna H Domain AIR-AP2802I-H-K9 Cisco AP EOL replaced by C9120AXI Internal Antenna H Regulatory Domain Configurable AIR-AP2802I-H-K9-RF Cisco Access Point 802.11ac Internal Antenna H Regulatory Domain Configurable
Warranty:	1 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2.3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

AIR-AP2802E-H-K9C Cisco Access Point 802.11ac External Antenna H Regulatory Domain Configurable

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

AIR-AP2802E-H-K9C is one of the Cisco Aironet 2800 Series Access Points. This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-oﬀ product that's intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802E-H-K9C provides external antenna and H regulatory domain.

Quick Specification

Table 1 shows the Quick Specs of the AIR-AP2802E-H-K9C.

Part Number	AIR-AP2802E-H-K9C
Description	802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, H Regulatory Domain, Configurable
Frequency band and 20-MHz operating channels	H (H regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5. 150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels
Features	4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support
Interfaces	2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software)
System memory	- 1024 MB DRAM - 256 MB flash
Dimensions (W x L x H)	8.66 x 8.77 x 2.50 in.
Weight	4.6 lb (2.09 kg)

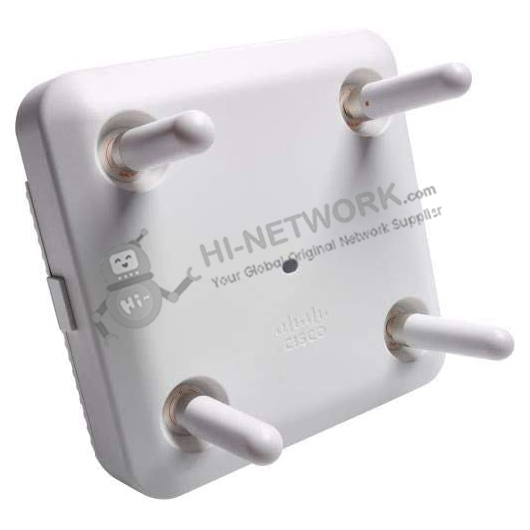

Figure 1 shows the appearance of the AIR-AP2802E-H-K9C.

front-air-ap2802e-h-k9c-datasheet

Product Details

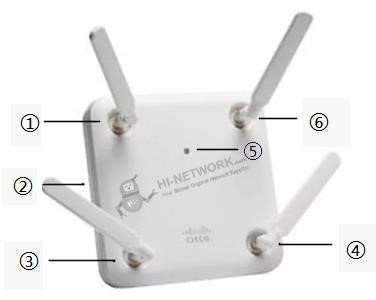

Figure 2 shows the face of AIR-AP2802E Model.

face-air-ap2802e-h-k9c-datasheet

Note:

(1)	Dual-band antenna connector A with antenna	(4)	Dual-band antenna connector C with antenna
(2)	Location of the Smart antenna connector port on the right side of the AP	(5)	Status LED
(3)	Dual-band antenna connector D with antenna	(6)	Dual-band antenna connector B with antenna

Compare to Similar Items

Table 2 shows the comparison between two AP.

Part Number	AIR-AP2802E-I-K9C	AIR-AP2802E-H-K9C
Regulatory Domain	I (I regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels	H (H regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5. 150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels
Antenna	External Antenna	External Antenna
Features	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support

Get More Information

Do you have any question about the AIR-AP2802E-H-K9C?

Specific Data Sheet:

AIR-AP2802E-H-K9 Specification
Networking
Type	Wireless access point
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	5.2 Gbps
Data Link Protocol	IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ad (LACP)
Status Indicators	Boot state, Error, Status
Features	4T4R MIMO technology, Auto-sensing per device, Beamforming technology, CleanAir technology, ClientLink 4.0 technology, Cross AP Noise Reduction, Cyclic shift diversity (CSD), DFS support, High Density Experience (HDX), Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), MIMO equalization, Optimized AP Roaming, Packet aggregation A-MPDU, Packet aggregation A-MSDU
Wireless Protocol	802.11a/b/g/n/ac Wave 2
Wi-Fi Bands	2.4 GHz, 5 GHz
Interface Provided
Qty	1
Type	Console
Connector Type	RJ-45
Miscellaneous
Included Accessories	Ceiling grid clip, Low profile bracket
Service
Support Details Type	Limited warranty
Support Details Service Included	Advance hardware replacement
Support Details Full Contract Period	Lifetime
Header
Compatibility	PC
Country Kits	China
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Aironet
Model	2802E
Brand	Cisco
Service & Support Details
Response Time	10 days
Software
Type	CAPWAP Software Image
Capacity
Type	Spatial streams
Value	3
Dimensions & Weight
Width	8.7 in
Depth	8.8 in
Height	2.5 in
Service & Support
Type	Limited lifetime warranty
Chassis
Ruggedized Design	Indoor

Customer Reviews

4.7

(36 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Justin Woodruff

Posted on 06/28/2024

Verified Buyer

4.9

Love it

Do you have other questions or feedback? You may write here:

What is Guaranteed.

After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.

After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.

Service Never Ends.

Hardwares Warrany Time:

Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year

After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
