AIR-AP1832I-E-K9 Cisco Wireless AP Internal Antenna E Regulatory Domain


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)



AIR-AP1832I-E-K9 is one of the Cisco Aironet 1830 Series Access Points. Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard. The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. The model AIR-AP1832I-E-K9 provides E Regulatory Domain and internal antennas.


Quick Specification

Table 1 shows the Quick Specs of the AIR-AP1832I-E-K9.


Part Number

AIR-AP1832I-E-K9

Description

802.11ac Wave 2 AP, 3x3:2, Internal Antenna, E Regulatory Domain

Features

- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO

- MRC

- 802.11ac beamforming (transmit beamforming)

- 20-, 40-, and 80-MHz channels

- PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

Regulatory Domain

E (E regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5. 180 to 5.320 GHz; 8 channels

- 500 to 5.700 GHz; 8 channels

Integrated antenna

- 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

- 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

- Management console port (RJ-45)

- USB 2.0 (enabled via future software)

Dimensions (W x L x H)

8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

3.12 lb (1.41 kg)


Figure 1 shows the appearance of the AIR-AP1832I-E-K9.

front-air-ap1832i-e-k9-datasheet


Product Details

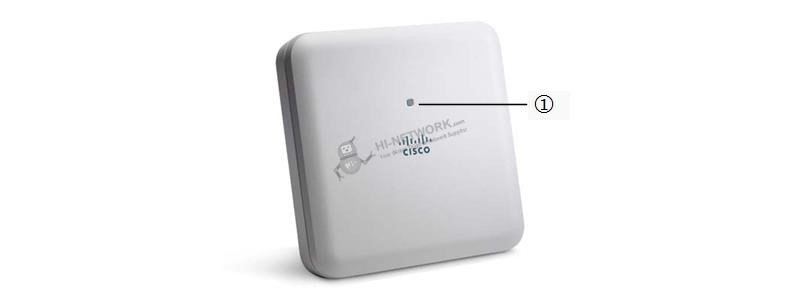

Figure 2 shows the AIR-AP1832I LED Indicator Position.

led-air-ap1832i-e-k9-datasheet


Note:


(1) LED indicator position

Table 2 shows the AP LED indicators' descriptions.

Message Type

LED State

Message Meaning

Association status

Chirping Green

Normal operating condition, but no wireless client associated

Green

Normal operating condition, at least one wireless client association

Boot loader status

Green

Executing boot loader

Boot loader error

Red

Boot loader signing verification failure

Access point regulatory domain priming status

Blinking Amber

AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress

Cycling Red, Green and off

AP waiting to be primed

Chirping Red

AP primed to a wrong regulatory domain

Operating status

Blinking amber

Software upgrade in progress

Cycling through green, red, and amber

Discovery/join process in progress

Rapidly cycling through red, green, amber, and off.

Access point location command invoked from controller web interface.

Access point operating system errors

Cycling through red, green, amber, and off

General warning; insufficient inline power

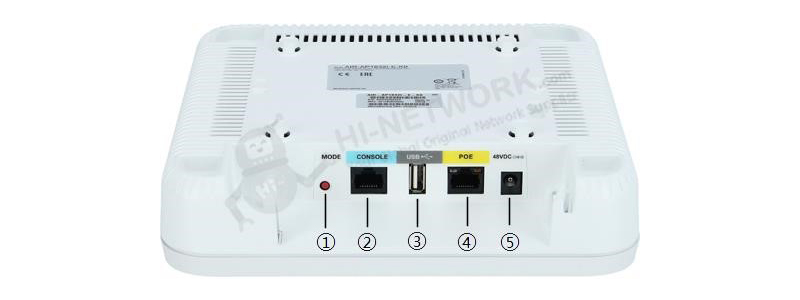

Figure 3 shows AIR-AP1832I Ports and Connections.

ports-air-ap1832i-e-k9-datasheet



Note:

(1)

Mode button

(4)

PoE-In port (Ethernet Uplink port)

(2)

RJ-45 console port

(5)

48 V DC input power port

(3)

USB 2.0 port


Compare to Similar Items

Table 3 shows the comparison between two AP.


Part Number

AIR-AP1832I-E-K9

AIR-AP1832I-E-K9C

Description

802.11ac Wave 2 AP, 3x3:2

802.11ac Wave 2 AP, 3x3:2

★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.

Integrated antenna

Yes

Yes

Regulatory Domain

E (E regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5. 180 to 5.320 GHz; 8 channels

- 500 to 5.700 GHz; 8 channels

E (E regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5. 180 to 5.320 GHz; 8 channels

- 500 to 5.700 GHz; 8 channels



Get more information

Do you have any question about the AIR-AP1832I-E-K9?

Contact us now viainfo@hi-network.


Specific Data Sheet:


AIR-AP1832I-E-K9 Specification

Software

Cisco Unified Wireless Network Software Release with AireOS wireless controllers:

8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes

Centralized, standalone, sniffer, Cisco FlexConnect™ , monitor, OfficeExtend, mesh

Supported wireless LAN controllers

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller

Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

3x3 MIMO with two spatial streams

Maximal ratio combining (MRC)

20- and 40-MHz channels

PHY data rates up to 300 Mbps (40 MHz with 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 dynamic frequency selection (DFS)

Cyclic shift diversity (CSD) support

802.11ac

Wave 1 and 2 capabilities

3x3 MIMO with two spatial streams, single-user or multiuser MIMO

MRC

802.11ac beamforming (transmit beamforming)

20-, 40-, and 80-MHz channels

PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS CSD support

Integrated antenna

2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces

1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

Management console port (RJ-45)

USB 2.0 (enabled via future software)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

3.12 lb (1.41 kg)

Environmental

Cisco Aironet 1830i

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

Operating temperature: 32° to 104°F (0° to 40°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40˚C, 9843 ft.

System memory

1 GB DRAM
256 MB flash

Input power requirements

AP1830: 44 to 57 VDC

Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

15.4W

Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options

802.3af/802.3at

Enhanced PoE

Cisco local power supply, AIR-PWR-C=

Cisco power injector, AIR-PWRINJ5= (Note: This injector supports 802.3af only), AIR-PWRINJ6=

Note: If 802.3af PoE is the source of power, the USB port is disabled.

Warranty

Limited lifetime hardware warranty
