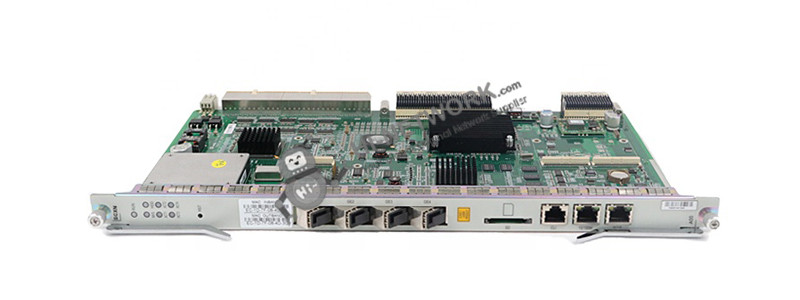

SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface

SCXM– supports 480 Gbps switching capacity and 32 K MAC address table.

SCXL – No uplink interfaces, 2x management interface

GPON cards

GTXO – 4/8 XGPON1 ports, split ratio up to 1:256

GTGO – 8 GPON ports, split ratio up to 1:256

GTGH – 16 GPON ports, split ratio up to 1:128

FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibres for uplink/downlink)

Uplink cards

GUFQ – 4x SFP (GE)

GUSQ – 2x SFP (GE), 2x RJ45 (GE)

XUTQ – 4x SFP (10GE)

HUTQ – 4x SFP (2x10GE, 2xGE)

HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE)

Power consumption

SCXL (without uplink interfaces): 90 W

SCXM (with uplink interfaces): 70 W

SCXN (without uplink interfaces): 62 W

Dimensions

395.5 mm × 25 mm × 225 mm (Height × Width × Depth)

Weight

SCXL: 1.14 kg

SCXM: 1.132 kg

SCXN: 1.132 kg

GE1–GE4/XG1–XG4

GE/10GE optical interface, for uplink

SD

SD socket, for importing/exporting data

CLI

RS-232 port, for local debugging

10/100M

RJ45 interface, for out-of-band network management

DIAG

RJ45 interface, for mirroring service traffic
