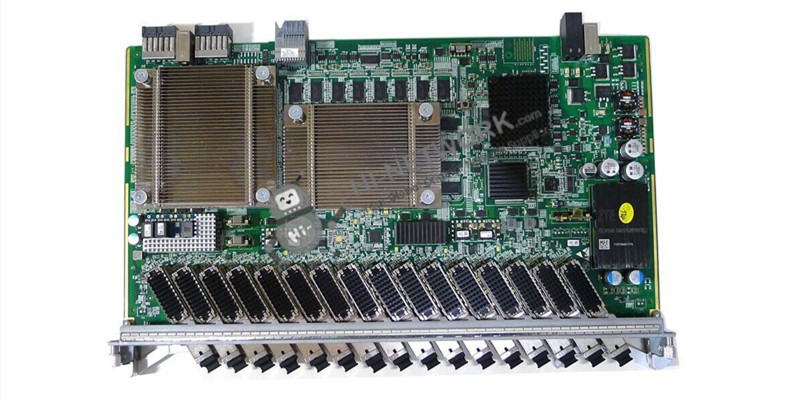

ZTE GFBH 16 port GPON & XG PON Combo interface board suitable for C600 (include 10GE SFP module)

714
4.8
4.8/5.0
Q/A
2 sold/Mon
Detail: ZTE ZXA10 C600 C650 C680 16-port XG-PON&GPON Combo GPON OLT service card GFBH (include 10GE SFP module)
Model: GFBH
Condition: Factory Sealed New; In Stock
Related:
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE GFBH 16 port GPON & XG PON Combo interface board suitable for C600 (include 10GE SFP module)


ZTE GFBH Service Board is 16-port XG-PON & GPON Combo service card. This board is applied to ZTE ZXA10 C600/C650/C680 GPON OLT. And could support 16 XG-PON & GPON SFP+ hybrid interfaces and Maximum optical split ratio of GPON: 1:128 & Maximum optical split ratio of XG-PON: 1:128 ZXA10 C600 is a large capacity optical access equipment based on the TITAN platform. It meets the full-scenario access needs of ultra-high band width, big video, FMC and network re architecture, as well as carrier-class QoS and security. ZXA10 C680 is ultra-large capacity optical access equipment based on theTITAN platform.It meets the full-scenario access needs of ultra-high bandwidth, big video, FMC and network re architecture, as well as carrier-class QoS and security. ZXA10 C680 is 60S high optical access equipment, which has industry’s highest 36 line card slots and provide 576 GPON/10G PON ports.


Quick Specification:


Brand

ZTE

Model Name

GFBH

Port

16-port

Interface

XG-PON & GPON Combo

Function

XG-PON & GPON service access

Specification

XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector

Management and control module

Configures, controls, and manages the card.

PONMAC module

Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.

NP module

Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.

Optical module

Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.

Clock module

Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.

Weight

1.72 kg

Dimensions (L x H x W)

393.1 mm × 23.9 mm × 214 mm


The Front Panel:


zte-gfbh-datasheet



GFBH Service Board Product and More Service Boards:


ZTE GFGN Service Board GPON16-port service board with C+/C++ module suitable for C600

ZTE GFGL Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGH Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGM Service Board GPON 16-port service board with C+/C++ module suitable for C600

ZTE EFGH Service Board 16 EPON interface board for C600

ZTE GFTH Service Board 16 port 10G GPON interface board for C600

ZTE GFXH Service Board 16 port XG-PON interface board for C600

ZTE GFBH Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFCH Service Board 16 port GPON & XGS- PON Combo interface board for C600

ZTE GFBL Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFBN Service Board 16 port GPON & XG-PON Combo connect to C board, suitable for C600

ZTE GFBT Service Board 16 port GPON & XG PON Combo interface board for C600


Get More Information


Do you have any questions about the GFBH?

Contact us now via [email protected]

Specific Data Sheet:


Brand

ZTE

Model Name

GFBH

Port

16-port

Interface

XG-PON & GPON Combo

Function

XG-PON & GPON service access

Specification

XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector

Management and control module

Configures, controls, and manages the card.

PONMAC module

Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.

NP module

Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.

Optical module

Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.

Clock module

Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.

Weight

1.72 kg

Dimensions (L x H x W)

393.1 mm × 23.9 mm × 214 mm
