| Detail: | Cisco Catalyst 3650 48 Port PoE 4x1G Uplink IP Services |
| Model: | WS-C3650-48PS-E |
| Condition: | New; In Stock |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
17.8
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
Cisco Catalyst WS-C3650-48PS-E is the next generation enterprise-level standalone with stackable option switch with IP Service image. It offers forty-eight Gigabit Ethernet POE+ ports with four fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform.
Product Code | WS-C3650-48PS-E |
Enclosure Type | Rack-mountable - 1U |
Feature Set | IP Service |
Uplink Interfaces | 4 x 1G SFP uplinks |
Ports | 48 x 10/100/1000 POE+ Ethernet ports |
Available PoE Power | 390W |
Maximum stacking number | 9 |
Stack bandwidth | 160Gbps |
Forwarding Performance | 77.37Mpps |
Switching Capacity | 176Gbps |
RAM | 4 GB |
Flash Memory | 2 GB |
Dimensions | 44.5 x 44.8 x 4.4 cm |

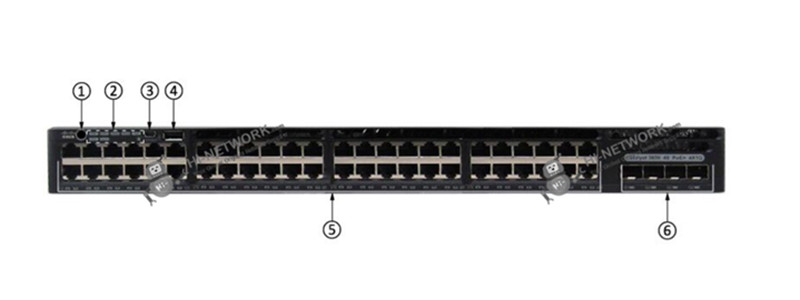

① | Mode button |
② | Status LEDs |
③ | USB mini-Type B (console) port |
④ | USB Type A storage port |
⑤ | 48 x 10/100/1000 Ports |
⑥ | Uplink ports |

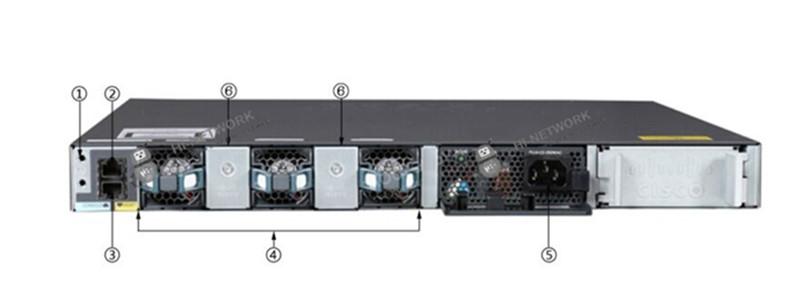

① | Ground connector |
② | CONSOLE (RJ-45 console port) |
③ | MGMT (RJ-45 10/100/1000 management port) |
④ | Fan module |
⑤ | Power supply modules |
⑥ | Stacking modules |
Part number | Description |
C3650-STACK-KIT | Cisco Catalyst 3650 Stack Module Spare |
PWR-C2-640WAC= | 640W AC Config 2 Secondary Power Supply |
Console Cable 6ft with RJ45 and DB9F | |
Console Cable 6 ft with USB Type A and mini-B |
Models | ||
Feature Set | IP Base | IP Service |
Uplink Interfaces | 4 x 1G SFP uplinks | 4 x 1G SFP uplinks |
Ports | 48 x 10/100/1000 POE+ Ethernet ports | 48 x 10/100/1000 POE+ Ethernet ports |
Available PoE Power | 390W | 390W |
StackWise-160 | Optional | Optional |
Do you have any question about the WS-C3650-48PS-E?
Contact us now via [email protected]
Model | WS-C3650-48PS-E |
Enclosure type | Rack-mountable – 1U |
Ports | 48 x 10/100/1000 (POE+) + 4 x 1G SFP |
Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
Available PoE Power | 390W |
Switching Capacity | 176 Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 160 Gbps |
Forwarding Performance | 77.37Mpps |
FNF entries | 48000 |
Maximum VLANs IDs | 4,094 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 2 G |
Number of AP per switch/stack | 50 |
Number of wireless clients per switch/stack | 1000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 40 Gbps |
Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | power redundant slot |
Accessory & Rack Moubt Kits | (1)ACC-KIT-T1: Accessory kit |
Stacking module & cable | · C3650-STACK-KIT: Stack Module |
Power supply | PWR-C2-1025WAC |
Power Device | Power supply – redundant – plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 100V-240V |
Power Consumption of standalone (in Watts) | 99.5 (max) |
Width | 17.5 Inches (44.5 cm) |
Depth | 17.625 Inches (44.8 cm) |
Height | 1.73 Inches (4.4 cm) |
Shipping Weight | 17.49 Kg |
Rack Mounting Kit | optional |
MTBF in hours | 383,760 |
Compliant Standards | · IEEE 802.1D Spanning Tree Protoco |
System software | IOS IP Service |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Access Point Licenses | · L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) |
Features | · EEM · RPS Support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols · Jumbo Frames · VLANS · Voice Vlan · VTPv2 · CDPv2 · LLDP · 802.3ad LACP and PAgP · PVST/PVST+ · 802.1W/802.1S · Port Fast/Uplink Fast · Dynamic Trunking Protocol (DTP) · port CoS Trust and Override · Trusted Boundary · ACL Classification · ingress Policing · Auto QoS · Per VLAN policies · 802.1p queues · Scheduling · Priority Queuing · Configure CoS Priority Queues · Configure CoS Priority Queues · Configure Queue Weights · Configure Buffers and Thresholds · Class & Policy Maps · Modify CoS and DSCP Mapping · Weighted Tail Drop · IGMPv1,v2,v3 and MLDv1, v2 · DHCP server · DSCP transparency · HSRP, VRRP, BLGP · RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-lite · PIM-SM/DM, PIM sparse-dense mode, SSM · Flexible Netflow |
Advanced Network security | · Port security · DHCP snooping · Dynamic ARP inspection (DAI) · IP source guard · The Unicast Reverse Path Forwarding (uRPF) |
Management | · BRIDGE-MIB · CISCO-AUTH-FRAMEWORK-MIB · CISCO-VTP-MIB · EtherLike-MIB · HC-RMON-MIB · IEEE8021-PAE-MIB · IEEE8023-LAG-MIB |
Technical Support and Services | · Cisco SMARTnet Service · Cisco Smart Foundation Service · Cisco SP Base Service · Cisco Focused Technical Support Services |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 16,400 Feet (Up to 5000m) |
Storage altitude | Up to 16,400 Feet (Up to 5000m) |
Operating relative humidity | 5% to 96% noncondensing |
Storage relative humidity | 5% to 96% noncondensing |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF |
Storage environment | -40ºF to 160ºF |
