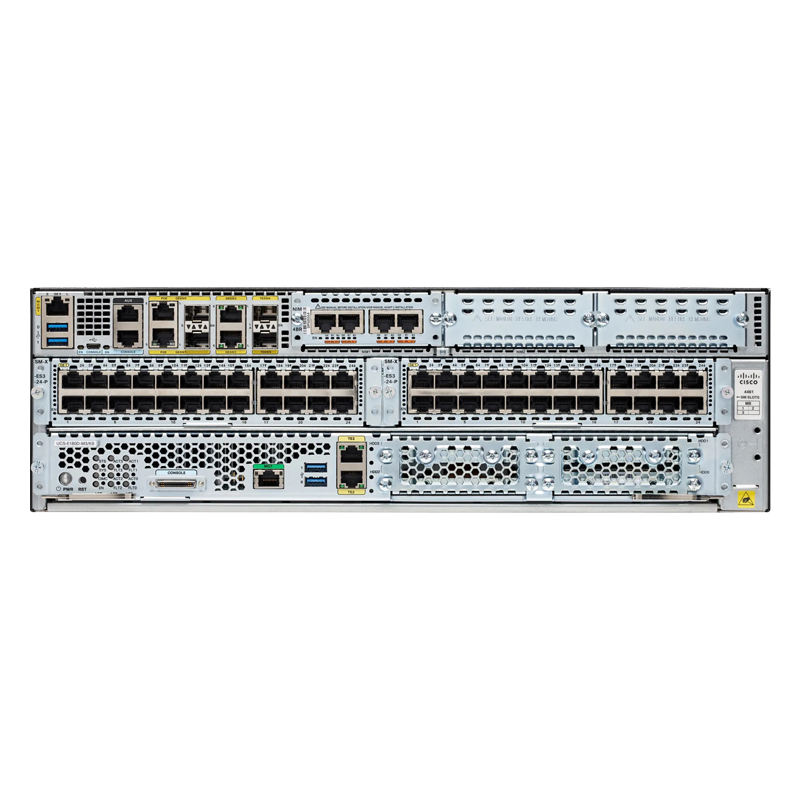

Aggregate Throughput

1.5Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

Total onboard WAN or LAN 10Gbps ports

2

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module slots

3

Doublewide service-module slots

2

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)

NA

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

NA

Default memory DDR3 ECC DRAM (data plane)

4 GB

Maximum memory DDR3 ECC DRAM (data plane)

4 GB

Default memory DDR3 ECC DRAM (control/services plane)

8 GB

Maximum memory DDR3 ECC DRAM (control/services plane)

32 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45 (up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC and PoE

Redundant power supply

Internal: AC, DC and PoE

Power Specifications

AC input voltage

100 to 240 VAC auto ranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)

-

Maximum power with AC power supply (watts)

1000W (no PoE)

Maximum power with PoE power supply (platform only) (watts)

1000 with PoE redundant

 1450 with PoE boost no redundancy

Maximum endpoint PoE power available from PoE power supply (watts)

500 W with optional redundancy

Maximum endpoint PoE power capacity with PoE boost (watts)

950 W no redundancy

Sizes and Weights

Dimensions (H x W x D)

3.5 x 17.25 x 18.5 in

 88.9 x 438.15 x 469.9 mm)

External Power Supply Dimensions (H x W x D)

N/A

Rack height

2 Rack Units (2RU)

Rack-mount 19in. (48.3 cm) EIA

Included

Rack-mount 23in. (58.4 cm) EIA

Optional

Wall-mount

No

Weight with 1, 450-WAC power supply (no modules)

-

Weight with 1 1,000-WAC power supply+ 1 PoE power module (no other modules)

-

Weight with AC PS (no modules)

-

Weight with AC PS with POE (no modules)

-

Typical weight (fully loaded with modules)

-

Airflow

I/O side to bezel side

MTBF (Hours)

480770

Environmental Specifications

Operating Conditions

Temperature

32 to 104ºF (0 to 40ºC)

Altitude (China)

0 – 6,560 ft. (0 – 2,000 m)

Altitude (Rest of the world)

0 – 10,000 ft. (0 – 3,050 m)

Relative humidity

5% to 85%

Short-term humidity

5% to 90%, not to exceed 0.024 kg water/kg of dry air

Acoustics: Sound pressure (Typical/maximum)

50.6/73.1 dBA

Acoustics: Sound power (Typical/maximum)

58.2/78.8 dBA

Nonoperating Conditions

Temperature

-40 to 158ºF (-40 to 70ºC)

Relative humidity

5% to 95%

Altitude

15,584 ft (4750m)

Regulatory and Compliance

Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1 EN 60950-1

AS/NZS 60950-1

IEC 60950-1

EMC

47 CFR, Part 15 ICES-003 Class A

EN55032 Class A CISPR32 Class A

AS/NZS CISPR 32 Class A VCCI V-3

CNS 13438

EN 300-386

EN 61000 (Immunity)

EN 55024, CISPR 24 KN22, KN24

Telecom

T1

IC CS-03:2004 TIA-968-B:2009 HKTA 2028:2010

HKTA 2017:2010

HKTA 2015: 2006 G.703:2001 ID0002:2007 IS6100:2004

DSPR Gray Book:2000

DSPR Technical Condition: 2004 E1

AS/ACIF S016: 2001

AS/ACIF S038: 2001 G.703:2001

TBR 4:1995

TBR 12:1993

TBR 13:1996R

RA 2009-38

(RRL 2005-96)

IDA TS DLCN:2011

IDA TS ISDN PRA:2005 IS6100: 2004

PTC 220:2008

Ethernet IEEE 802.3 ANSA X3.263

Cisco IOS XE Software

Protocols

IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source-Specific Multicast (SSM), Resource Reservation Protocol (RSVP), Cisco Discovery Protocol, Encapsulated Remote Switched Port Analyzer (ERSPAN), Cisco IOS IP Service-Level Agreements (IPSLA), Call Home, Cisco IOS Embedded Event Manager (EEM), Internet Key Exchange (IKE), access control lists (ACL), Ethernet Virtual Connections (EVC), Dynamic Host Configuration Protocol (DHCP), Frame Relay (FR), DNS, Locator ID Separation Protocol (LISP), Overlay Transport Virtualization (OTV), Hot Standby Router Protocol (HSRP), RADIUS, authentication, authorization, and accounting (AAA), Application Visibility and Control (AVC), Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IPsec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE 802.1ag, and IEEE 802.3ah

Encapsulations

Generic routing encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE)

Traffic management

QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based Application Recognition (NBAR)

Cryptographic algorithms

Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512
