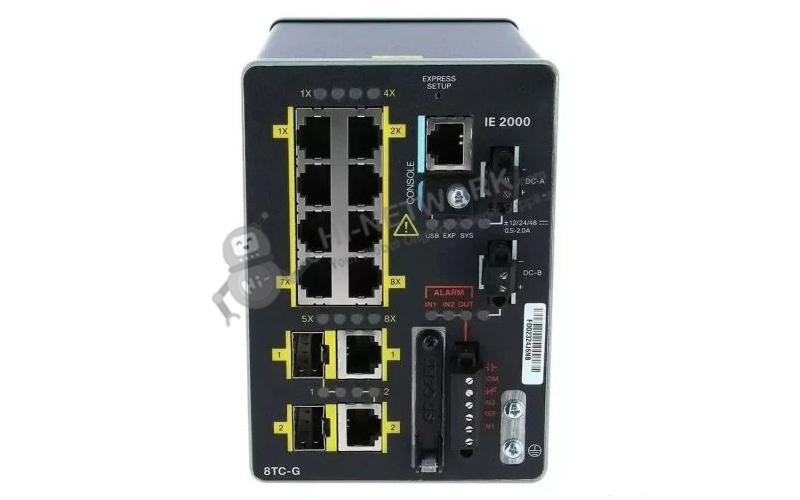

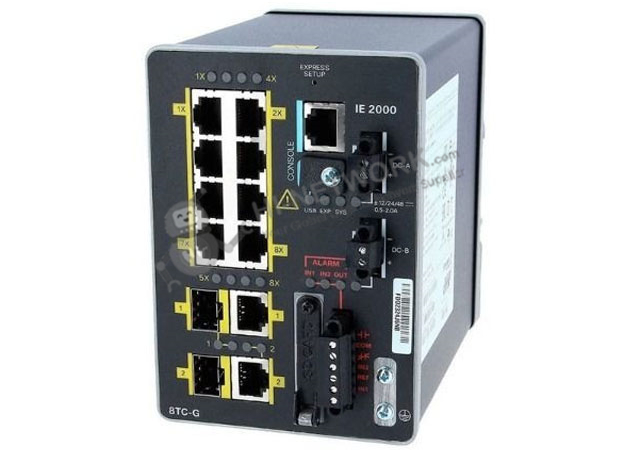

| Detail: | IE2000 with 8FE Copper ports and 2GE Combo (Lan Lite) |
| Model: | IE-2000-8TC-G-L |
| Condition: | Factory Sealed New |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
16.0
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).
Product Code | IE-2000-8TC-G-L |
Total Ports | 10 |
RJ45 ports | 8 FE |
Combo Ports | 2 GE |
Manufacturing license | LAN Lite |
Model | Description |
SD-IE-1GB | 1GB SD Memory Card |
GLC-SX-MM-RGD | Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP |
GLC-BX40-U-I | 1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector |
GLC-TE | 1000BASE-T SFP transceiver module for Category 5 copper wire |
GLC-ZX-SM | 1000BASE-ZX SFP |
GLC-BX-U | 1000BASE-BX SFP, 1310NM |
SFP-GE-L | 1000BASE-LX/LH SFP (DOM) |
GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
L-IE2000-L-B= | IE2000 LAN Lite to LAN Base e-license |
LIC-IE2000-L-IP= | IE2000 LAN Lite to IPLite e-license |
STK-RACK-DINRAIL= | 19 in. DIN Rail mount kit |
Part Number | IE-2000-8TC-G-L | IE-2000-8TC-G-E |
Total Ports | 10 | 10 |
RJ45 ports | 8 FE | 8 FE |
Combo Ports | 2 GE | 2 GE |
Manufacturing license | LAN Lite | LAN Base |
Do you have any question about the IE-2000-8TC-G-L?
Contact us now via [email protected]
Product Name | IE-2000-8TC-G-L |
Total Ports | 10 |
RJ45 Ports | 8 FE |
Combo Ports | 2 GE |
Manufacturing license | LAN Lite |
Power consumption | 8-port downlink models: 12.5-20 W |
Hardware | ● 256 MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64 MB on-board flash memory ● 1GB removable SD flash memory card (optional) ● Mini-USB connector |
Alarm | ● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
Connectors and cabling | ● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
IE2000 Software Features | |
LAN Lite license | Baseline features |
Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2) |
Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
Management | Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog |
Industrial Ethernet | EtherNet/IP, Profinet v2 |
LAN Base license | Additional features |
Layer 2 switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL) |
Quality of service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
Management | Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
Industrial Ethernet | IEEE 1588 PTPv2 |
IPv4 routing | IPv4 static routing |
IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
Enhanced LAN Base | Additional features |
Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
IP Lite license | Additional features |
IPv4 routing | RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode. |
IPv6 Routing | IPv6 Static routing, OSPFv3 |
Security | FIPS 140-2 |
Embedded Event Manager | EEM feature enabled with IP Lite license |
DNA Essentials | Additional features |
Cisco DNA Center | Discovery, topology, inventory, software image management |
Visibility | DNA assurance, Device 360 |
Day-zero network bring-up automation | Cisco Network Plug-and-Play application |
