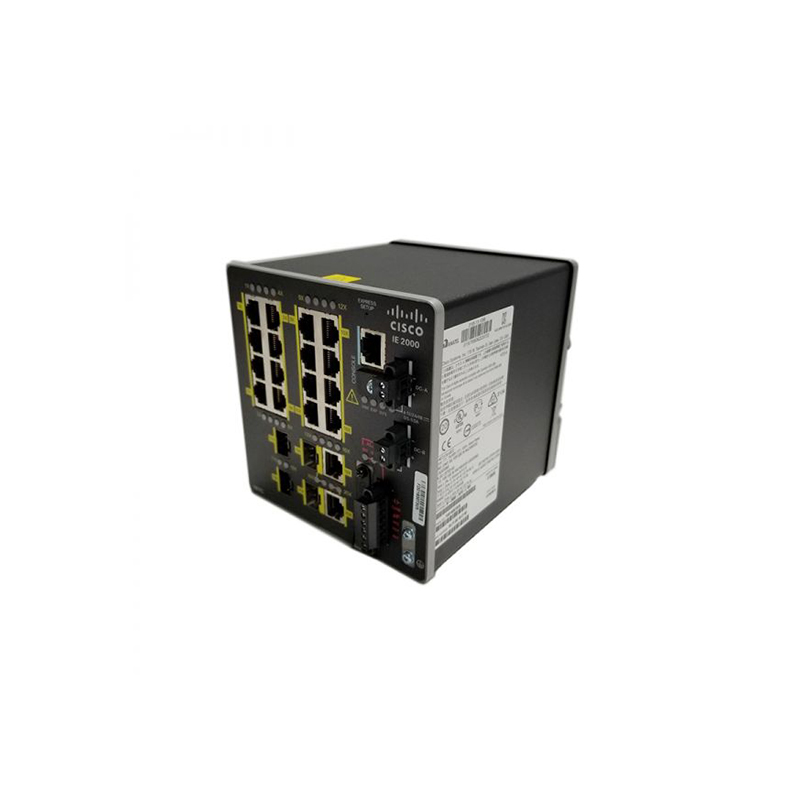

Sealed New IE-2000-16TC-B CISCO Switch 16 100BASE-T downlink ports 2 Fast Ethernet dual-purpose uplink ports

USD

2285 ~~$3348~~ (31.8% OFF)

4.8 4.8/5.0 Reviews Q/A 52 sold/Mon
Detail:	IE 16 10/100,2 FE SFP+2 T/SFP FE, Base
Model:	IE-2000-16TC-B
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 16.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New IE-2000-16TC-B CISCO Switch 16 100BASE-T downlink ports 2 Fast Ethernet dual-purpose uplink ports

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

IE-2000-16TC-B is the IE2000 series IE 16 10/100,2 FE SFP+2 T/SFP FE, and LAN Base switch. The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes.

They offer:

1.Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor

2. Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink

3. Dual-input DC power supply, alarm relays, DIN rail mount

4. Industrial Power over Ethernet (PoE) solution

5. Conformal coating available

6. Swappable SD flash card and mini-USB connector

7. Industrial environmental compliance and certifications

8. Industrial partner applications: Ethernet/IP and PROFINET

Quick Specification:

Part Number	IE-2000-16TC-B
Total Ports	20
RJ45 Ports	16 FE
Combo Ports	2 FE
SFP Ports	2 FE
Manufacturing license	LAN Base
Type of possible upgrade	1

Product Details:

ie-2000-16tc-b-water-datasheet

The Accessories for IE-2000-16TC-B

Supported Products:

Model	Description
SD-IE-1GB	1GB SD Memory Card
GLC-FE-100LX-RGD	Cisco GLC-FE-100LX-RGD 100Mbps Single Mode Rugged SFP
GLC-FE-100FX	100BASE-FX SFP for FE port
GLC-FE-100LX	100BASE-LX SFP for FE port
GLC-FE-100EX	100BASE-EX SFP (40km)
GLC-FE-100ZX	100BASE-ZX SFP (80km)
GLC-FE-100BX-D	100BASE-BX10-D SFP
GLC-FE-100BX-U	100BASE-BX10-U SFP
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IPLite e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit

Compare To Similar Items

Part Number	IE-2000-16TC-L	IE-2000-16TC-B
Total Ports	20	20
RJ45 ports	16 FE	16 FE
Combo Ports	2 FE	2 FE
SFP Ports	2 FE	2 FE
Manufacturing license	LAN Lite	LAN Base
Type of possible upgrade	3	1

Get More Information

Do you have any question about the IE-2000-16TC-B?

Specific Data Sheet:

Total Ports	20
RJ45 Ports	16 FE
Combo Ports	2 FE
SFP Ports	2 FE
Manufacturing license	LAN Base
Power consumption	16-port downlink models: 21-30 W
Hardware	● 256 MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64 MB on-board flash memory ● 1GB removable SD flash memory card (optional) ● Mini-USB connector
Alarm	Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Connectors and cabling	10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
IE2000 Software Features
LAN Lite license	Baseline features
Layer 2 switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, Profinet v2
LAN Base license	Additional features
Layer 2 switching	VTPv3, EtherChannel, Voice VLAN, Flexlink
Security	IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Quality of service	IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management	Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Industrial Ethernet	IEEE 1588 PTPv2
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Enhanced LAN Base	Additional features
Industrial management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
IP Lite license	Additional features
IPv4 routing	RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode
IPv6 Routing	IPv6 Static routing, OSPFv3
Security	FIPS 140-2
Embedded Event Manager	EEM feature enabled with IP Lite license
DNA Essentials	Additional features
Cisco DNA Center	Discovery, topology, inventory, software image management
Visibility	DNA assurance, Device 360
Day-zero network bring-up automation	Cisco Network Plug-and-Play application
