AIR-AP3802I-Z-K9
  • AIR-AP3802I-Z-K9

Sealed New AIR-AP3802I-Z-K9 Cisco Aironet 3802i Access Point

1222 $2608.00 (53.1% OFF)
4.8
4.8/5.0
Q/A
10 sold/Mon
Detail: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, Z Regulatory Domain
Model: AIR-AP3802I-Z-K9
Condition: Factory Sealed New, In stock
Related:
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

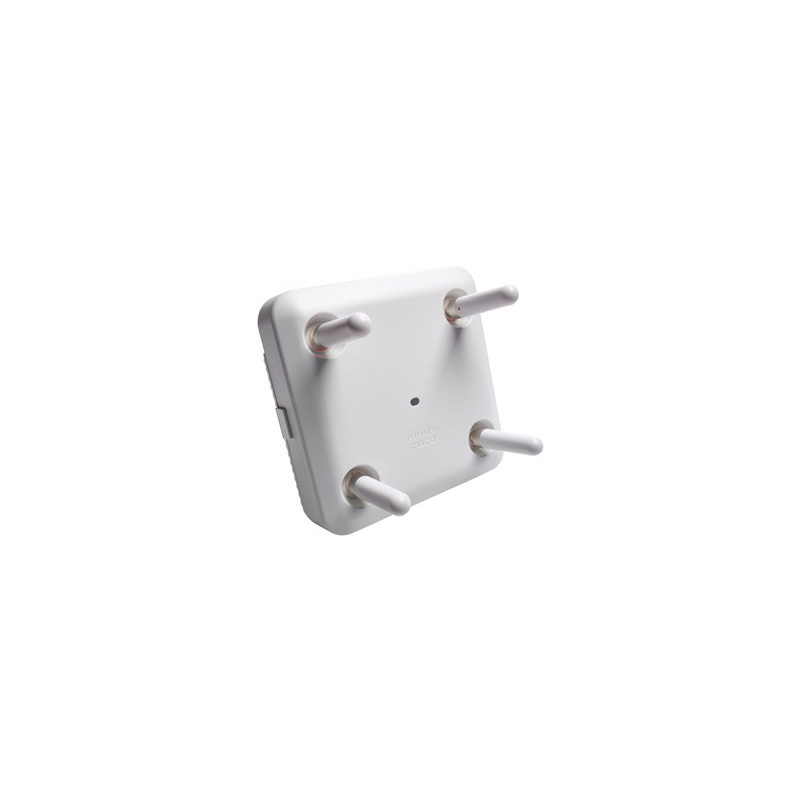

Sealed New AIR-AP3802I-Z-K9 Cisco Aironet 3802i Access Point


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


AIR-AP3802I-Z-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802I-Z-K9 is designed for Indoor, challenging environments, with internal antennas. Besides, it provides Z regulatory domain.


Quick Specification


Product Code

AIR-AP3802I-Z-K9

Antennas

Internal Antennas

Interfaces

- 2 Ethernet ports

- 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)

- CAT 5e cabling

- Higher-quality 10GBASE-T (CAT 6/6a) cabling

- 100/1000BASE-T autosensing (RJ-45 - AUX port)

- Management console port (RJ-45)

Features

- 4x4 MU-MIMO with three spatial streams

- MRC

- 802.11ac beamforming

- 20-, 40-, 80, 160-MHz channels

- PHY data rates up to 5.2 Gbps

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

Regulatory Domain

Z (Z regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

System

- 1024 MB DRAM

- 256 MB flash

Dimensions (W x L x H)

8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)

Net Weight

4.6 lb (2.09 kg)



Product Details

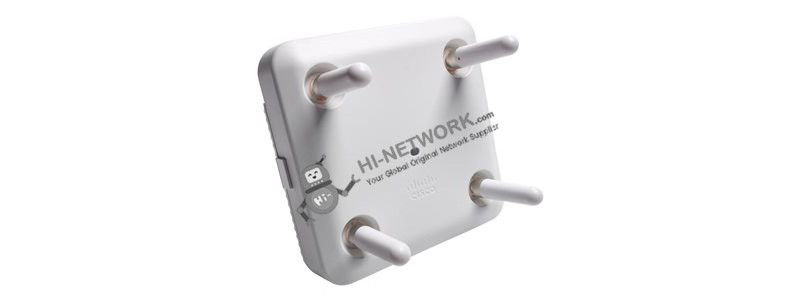

The Front Panel

air-ap3802i-z-k9-datasheet




Get More Information

Do you have any question about the AIR-AP3802I-Z-K9?

Contact us now via [email protected]

Specific Data Sheet:


Detail

802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, Z Regulatory Domain

Regulatory Domain

Z (Z regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

Software and supported wireless LAN controllers

Cisco Unified Wireless Network Software Release 8.2.MR1 or later

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

Cisco IOS XE Software Release 16.3 – Target Q3 CY2016

Cisco Catalyst 3850 Series and 3650 Series Switches

802.11n version 2.0 (and related) capabilities

4x4 MIMO with three spatial streams

Maximal ratio combining (MRC)

802.11n and 802.11a/g beamforming

20- and 40-MHz channels

PHY data rates up to 450 Mbps (40 MHz with 5 GHz).

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 dynamic frequency selection (DFS)

Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

4x4 MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, and 80-MHz channels

PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

802.11ac Wave 2 capabilities

4x4 MU-MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, 80, 160-MHz channels

PHY data rates up to 5.2 Gbps

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth

5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

Interfaces

◦   2 Ethernet ports

◦   100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

◦   CAT 5e cabling

◦   Higher-quality 10GBASE-T (CAT 6/6a) cabling

◦   100/1000BASE-T autosensing (RJ-45 - AUX port)

◦   Management console port (RJ-45)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm),

Weight

4.6 lb (2.09 kg)

Input power requirements

802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE)

802.3at power injector (AIR-PWRINJ6=)

50W power supply (AIR-PWR-50=)

Power draw

30W at the PSE with all features enabled except for the USB 2.0 port

34W at the PSE with the USB 2.0 port enabled

Environmental

Cisco Aironet 3800i

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

Operating temperature: 32° to 104°F (0° to 40°C)

Operating humidity: 10% to 90% percent (noncondensing)

Operating altitude test: 40˚C, 9843 ft.

System memory

1024 MB DRAM

256 MB Flash

Warranty

Limited lifetime hardware warranty
