AIR-AP2802E-S-K9C
  • AIR-AP2802E-S-K9C

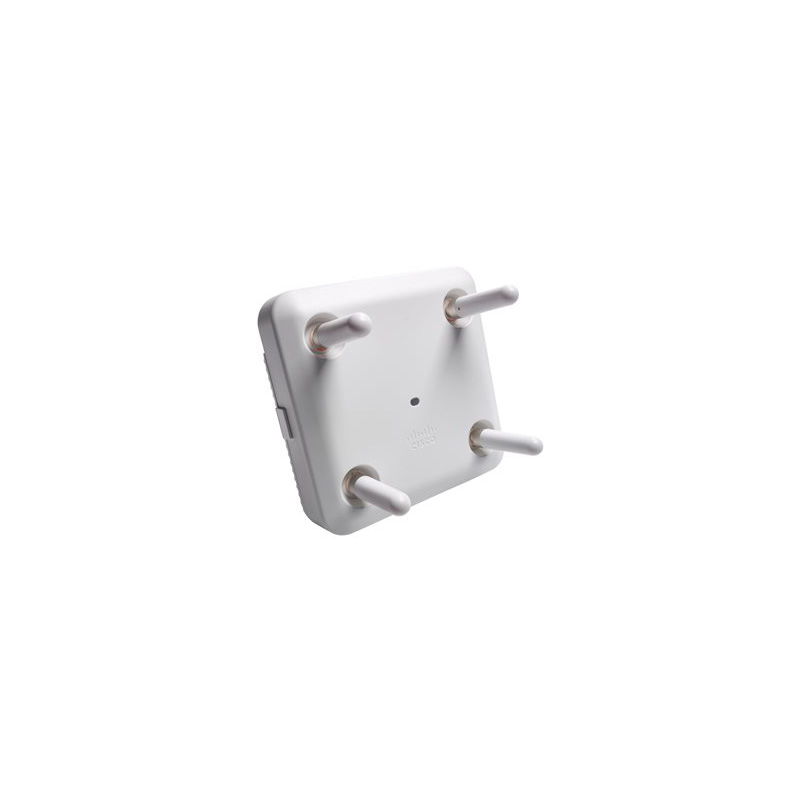

Sealed New AIR-AP2802E-S-K9C Aironet 2802E Access Point

799 $2315 (65.2% OFF)
4.5
4.5/5.0
Q/A
2 sold/Mon
Detail: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, S Regulatory Domain, Configurable
Model: AIR-AP2802E-S-K9C
Condition: Refurbished New; In Stock
Related:
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Sealed New AIR-AP2802E-S-K9C Aironet 2802E Access Point


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


AIR-AP2802E-S-K9C is one of the Cisco Aironet 2800 Series Access Points. This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers. The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. AIR-AP2802E-S-K9C provides external antenna and S regulatory domain. It also supports configurable Dual-band controller-based 802.11a/g/n/ac.


Quick Specification


Product Code

AIR-AP2802E-S-K9C

Feature

Dual-band controller-based 802.11a/g/n/ac, configurable

Frequency band and 20-MHz operating channels

S (S regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz;, 11 channels

- 5.745 to 5.825 GHz; 5 channels

Antenna

External Antenna

Features

- 4x4 MU-MIMO with three spatial streams

- MRC

- 802.11ac Beamforming

- 20-, 40-, 80, 160-MHz channels

- PHY data rates up to 5.2 Gbps

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

Interfaces

- 2 x 100/1000BASE-T autosensing (RJ-45)

- Management console port (RJ-45)

- USB 2.0 (enabled via future software)

System memory

- 1024 MB DRAM

- 256 MB flash

Dimensions (W x L x H)

8.66 x 8.77 x 2.50 in.



Product Details

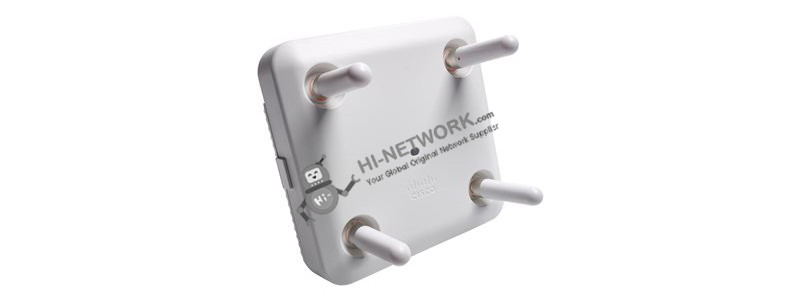

The Front Panel

air-ap2802e-s-k9c-datasheet

Compare To Similar Items


Models

AIR-AP2802E-T-K9

AIR-AP2802E-S-K9C

Feature

Dual-band controller-based 802.11a/g/n/ac

Dual-band controller-based 802.11a/g/n/ac, configurable

Frequency band and 20-MHz operating channels

T (T regulatory domain):

- 2.412 to 2.462 GHz; 11 channels

- 5.280 to 5.320 GHz; 3 channels

- 5.500 to 5.700 GHz; 8 channels

(excludes 5.600 to 5.640 GHz)

- 5.745 to 5.825 GHz; 5 channels

S (S regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz;, 11 channels

- 5.745 to 5.825 GHz; 5 channels

Antenna

External Antenna

External Antenna

Features

- 4x4 MU-MIMO with three spatial streams

- MRC

- 802.11ac Beamforming

- 20-, 40-, 80, 160-MHz channels

- PHY data rates up to 5.2 Gbps

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

- 4x4 MU-MIMO with three spatial streams

- MRC

- 802.11ac Beamforming

- 20-, 40-, 80, 160-MHz channels

- PHY data rates up to 5.2 Gbps

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support


Get More Information

Do you have any question about the AIR-AP2802E-S-K9C?

Contact us now via [email protected]

Specific Data Sheet:


Software

Cisco Unified Wireless Network Software Release 8.2.111.0 or later

Cisco IOS®XE Software Release 16.3

Supported wireless LAN controllers

Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

4x4 MIMO with three spatial streams

Maximal ratio combining (MRC)

802.11n and 802.11a/g beamforming

20- and 40-MHz channels

PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 dynamic frequency selection (DFS)

Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

4x4 MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, and 80-MHz channels

PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

802.11ac Wave 2 capabilities

4x4 MU-MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, 80, 160-MHz channels

PHY data rates up to 5.2 Gbps

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth

5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately)

2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios

Smart antenna connector

Available on the 2802e Series access points only

Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point

Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio

Interfaces

2802I/E

◦   2x100/1000BASE-T autosensing (RJ-45)

Management console port (RJ-45)

USB 2.0 (enabled via future software)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50”

Weight

Cisco Aironet 2802i

3.53 lb (1.6 kg)

Cisco Aironet 2802e

4.6 lb (2.09 kg)

Input power requirements

802.3at PoE+, Cisco Universal PoE (Cisco UPOE®)

802.3at power injector (AIR-PWRINJ6=)

Power draw

26W at the PSE with all features enabled except for the USB 2.0 port

30W at the PSE with the USB 2.0 port enabled

Environmental

Cisco Aironet 2802i

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

Operating temperature: 32° to 104°F (0° to 40°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 2802e

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

Operating temperature: -4° to 122°F (-20° to 50°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40˚C, 9843 ft.

System memory

1024 MB DRAM

256 MB flash

Warranty

Limited lifetime hardware warranty
