>> You can customize Dell EMC PowerEdge R860 Rack Server >> PART NUMBER: DELL R860 2.5 8 BAY >> Max Capacity of RAM: DIMM Speed Up to 4800 MT/s >> Max Storage of HDD: p to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB >> Free After-Sales online Service |
|
Condition: | Factory Sealed New, In Stock |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,<br>
your order will arrive within the<br>
estimated delivery time.
|
Ships to:
50
|
2-7 Days
US$
|
Payment: |
More
|

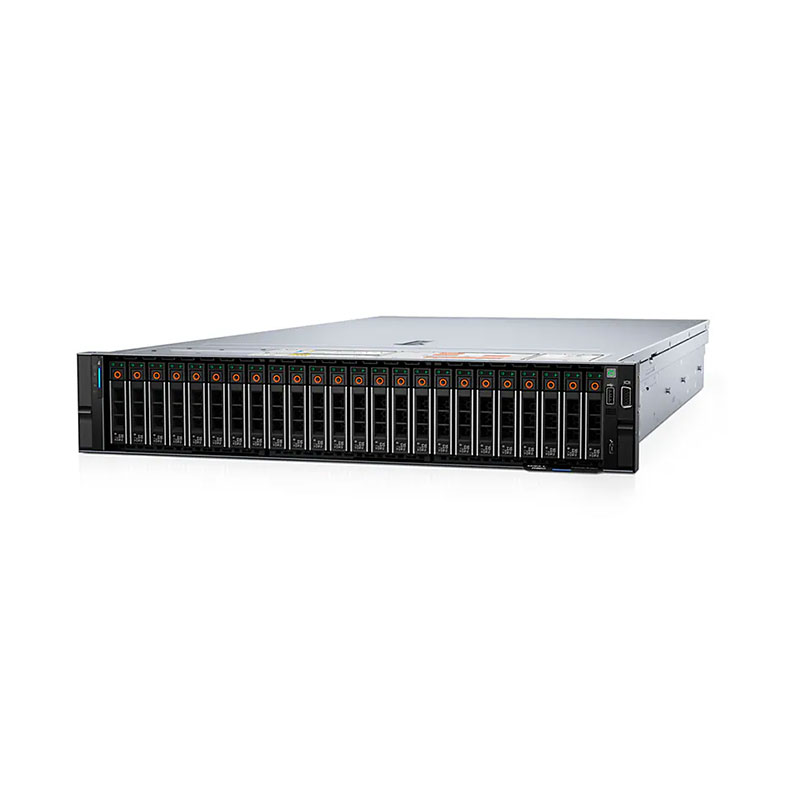

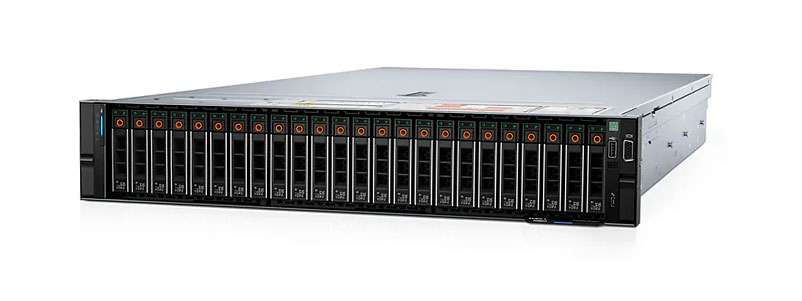

Looking for an Dell EMC PowerEdge R860 2U Rack Server ? Buy the new sealed Dell Servers from Hi-Network.com located in Hong Kong China. We support global shipping. You also can customize your own Dell R860 server on this page.
Take advantage of four powerful Intel® Xeon® processors (up to 60 cores per processor) and up to 64 DDR DIMMs for 16TB of memory, supporting large in-memory databases
Scale up with support for up to 24 drives and 8 PCIe Gen 5 expansion slots
Experience fast deployments and high server density in an air-cooled environment thanks to the slim 2U architecture
Elevated operations and workload performance
Deploy and enable emerging business-wide applications including business management systems while concurrently supporting existing operations with powerful features and capabilities, using the latest technology.
Maximize insights and data transformation initiatives to drive your business forward
Leverage new workload accelerators built into each Intel® Xeon® processor, purpose-built for peak performance from traditional and emerging business applications alike
Maximize your space, reduce management costs and drive more secure operations with fewer servers performing more operations
PowerEdge R860 The Dell designed to boost outcomes for core applications such as:
• Large in-memory databases including SAP HANA, SQL, Oracle
• Data analytics
• AI and virtualization, VDI
4th Generation Intel Xeon Scalable processors
Up to 60x cores
Up to 120x threads
TDP up to 350W
Socket:
4 x LGA 4677
Memory Slots:
64 x DDR5 DIMM slots
Memory Speed:
Up to 4800MHz
Maximum Memory Configuration:
16TB RDIMM
Front Bays:

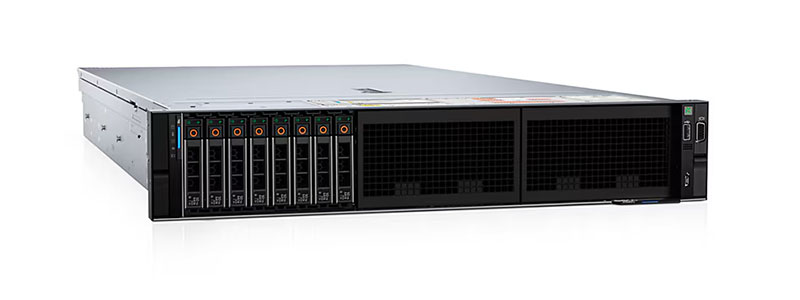

Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) drives max 61.44 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB
Rear Bays:
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) drives max 30.72 TB
Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB
M.2:
2 x M.2 NVMe SSDs or USB
Network Options:
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Front Ports:
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports:
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)
Interal Ports:
1 x USB 3.0 (optional)
Up to eight PCIe slots:
Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Slot 3: 1 x16 Gen5 Low profile, Half length
Slot 4: 1 x16 Gen5 Full height, Half length
Slot 5: 1 x16 Gen5 Full height, Half length
Slot 6: 1 x16 Gen5 Low profile, Half length
Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Enclosure
Height: 86.8mm
Width: 482mm
Depth: 883.2mm
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Embedded:
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Do you have any questions about the Dell R860?
Contact us now via [email protected].
Brand | Dell |
Model: | R860 |
Condition: | Sealed New |
Warranty: | Three-Years Warranty |
Form Factor | 2U Rack |
Processor | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist Technology |
Processor Sockets | 4 |
Memory Type | • 64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
Memory Slots | 64 DDR5 DIMM slots |
Max RAM | supports RDIMM 16 TB max |
Storage | Front bays:• Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) drives max 122.88 TB• Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) drives max 61.44 TB• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 245.76 TB• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 368.34 TB• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives + 8 x 2.5-inch NVMe (SSD) drives max 368.34 TB |
Rear bays: • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) drives max 30.72 TB • Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB | |
Internal controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i |
External controllers | • External Controller: PERC H965e |
Network options: | 1 x OCP card 3.0 (optional)Note: The system allows either LOM card or an OCP card or both to be installed in the system |
Power supplies | • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
PCIe Slots | • Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 3: 1 x16 Gen5 Low profile, Half length • Slot 4: 1 x16 Gen5 Full height, Half length |
Management | • iDRAC9• iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module• Quick Sync 2 wireless module |
Q1: What is Size and Gross weight for one used Dell R860?
A1: 98*67*25cm, gross weight is about 50KGS per size.
Q2: What is main features of Dell R860 server?
A2: The PowerEdge R860, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and DIMM Speed Up to 4800 MT/s @ 4800 MT/s speeds.
Q3: Can I use DDR3 Ram in R860 server?
A3: No, you can not.R860 server supports registered ECC DDR5 DIMMs only.
Q4: Do you Hi-Network support door-drop shipping?
A4: Yes, we have experience to export 105 countries till now. Global Air shipping with door-drop via DHL or Fedex. For those big size machines, sometimes we use Air shipping directly.
Q5: What is the hard drives of Dell R860 server?
A5: PowerEdge R860 have SAS SATA SFF Hard Drives.
Do you have other questions or feedback? You may write here:
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
