Detail: | QSFP to 4xSFP10G Passive Copper Splitter Cable, 1m |
Model: | QSFP-4SFP10G-CU1M |
Condition: | Compatible Cisco OEM; In Stock |
Related: | OEM QSFP-H40G-AOC7M CISCO Compatible 7m 23ft 40G QSFP+ Active Optical Cable OEM QSFP-40G-SR4 Compatible Cisco 850nm 150m DOM MTP MPO-12 Multimode Optical Transceiver WS-C3850-48P-E Cisco Catalyst C3850 Switch 48 Port PoE+ IP Service |
Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
1.5
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

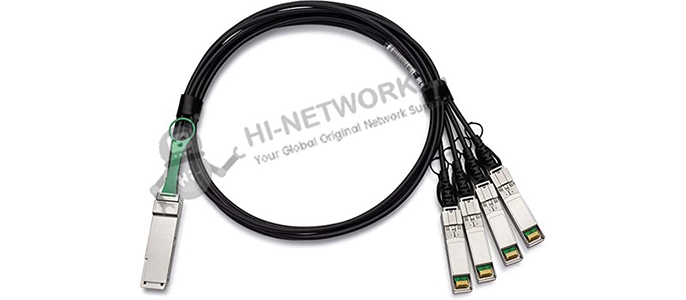

The Cisco QSFP-4SFP10G-CU1M Compatible 40G QSFP+ to 4 x 10G SFP+ Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with SFF-8436, SFF-8431 and SFP+ & QSFP MSA standards.
It provides a connection of a 40G QSFP+ port on one end and to four 10G SFP+ ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.
Cisco Compatible | QSFP-4SFP10G-CU1M |
Connector Type | QSFP+ to 4 SFP+ |
Max Data Rate | 40Gbps |
Minimum Bend Radius | 20mm |
Wire AWG | 30AWG |
Cable Length | 1m(3.28ft) |
Jacket Material | PVC(OFNR) |
Temperature | 0 to 70°C (32 to 158°F) |
Protocols | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
• Connector A: 1x QSFP 40Gbps Rated Connector (QSFP+ MSA SFF-8436 Compliant)
• Connector B: 4x SFP+ 10Gbps Rated Connector (SFP+ MSA SFF-8431 Compliant)
• Economically Links up a QSFP port with an upstream 10GbE-SFP+ Switch
• Compliant with IEEE 802.3ba 40GBASE-CR4 standard
• Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
• Bridge the gap between your 10G and 40G capable switches/host adapters
• High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
• Reduced power budget and lower port cost compared to transceiver and AOC
• RoHS Compliant and Lead-Free
Do you have any question about the QSFP-4SFP10G-CU1M?
Contact us now via [email protected].
QSFP-4SFP10G-CU1M Specification | |
OEM Part Number | QSFP-4SFP10G-CU1M |
Form Factor | QSFP+ DAC |
Data Rate | 40 Gb/s or 10 Gb/s |
Passive or actively equalized | Passive |
Supply Voltage | 3.3V |
Cable Length | 1 meter |
Cable impedance | 100 Ω |
Cable Type | Breakout Cable |
Wire Gauge | 30 AWG |
Minimum cable bend radius | 30 mm |
Cable Jacket Type | PVC |
Connector | QSFP+/ 4xSFP+ |
Digital Diagnostic Monitoring | N/A |
Environment | Operating: 0°C to 70°C |
Weight | 0.3 kg |
Application | 40GbE and high density 10GbE interconnects |
Compliance | IEEE802.3ba |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
