OEM QSFP-100G-CU3M CISCO Compatible 3m 10ft 100G QSFP28 Passive Direct Attach Copper Twinax Cable

52.92 $153 (65.4% OFF)
4.7
4.7/5.0
Q/A
4 sold/Mon
Detail: Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3-meter
Model: QSFP-100G-CU3M
Condition: Compatible Cisco OEM; In Stock
Related: OEM QSFP-100G-CU1M CISCO Compatible 1m 3ft 100G QSFP28 Passive Direct Attach Copper Twinax Cable Sealed New N9K-C93180YC-FX Cisco Switch 48 Ports and 40G or 100G QSFP28 Sealed New N9K-C9332C Cisco Nexus 40G and 100G QSFP28 Switch Sealed New N3K-C31108PC-V Cisco Nexus 48 10G SFP+ Switch
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
2
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

OEM QSFP-100G-CU3M CISCO Compatible 3m 10ft 100G QSFP28 Passive Direct Attach Copper Twinax Cable


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


The Cisco® 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor.


Quick Specification


Table 1 shows the quick specification.

Product Code

QSFP-100G-CU3M

Description

Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3-meter

Dimensions

13.5 x 18.4 x 72.4 mm

Nominal Wavelength (nm)

\

Cable Type

Direct-attach copper cable assembly

Core Size (Microns)

\

Modal Bandwidth (MHz*km)

\

Cable Distance

3m

Power Consumption (W)

1.5

Pull Tab Color

Orange

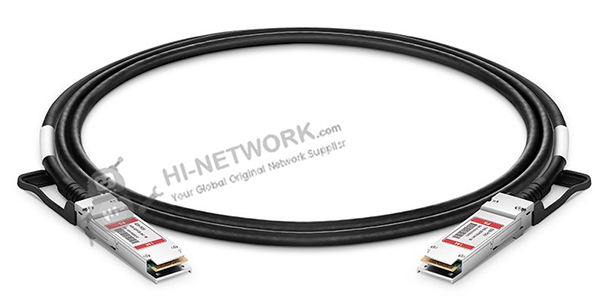

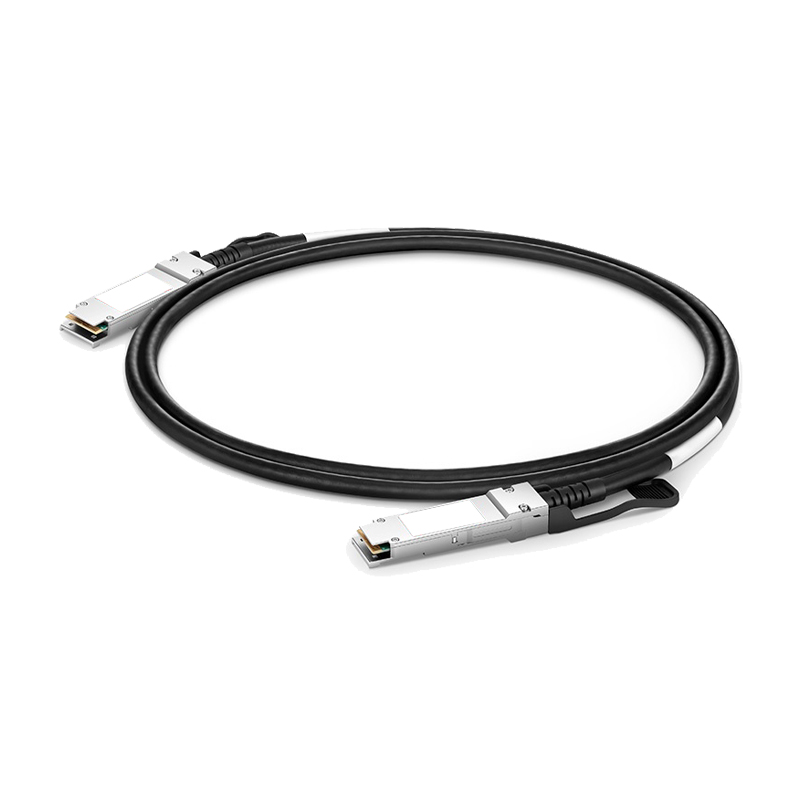

Figure 1 shows the appearance of QSFP-100G-CU3M.

front-qsfp-100g-cu3m-datasheet


Product Details


QSFP-100G Optical modules provide these highlights:

•Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port

•Interoperable with other IEEE-compliant 100GBASE interfaces where applicable

•Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability

•High-speed electrical interface compliant to IEEE 802.3bm


Platform support


Table 2 shows the supported platforms

Supported platform

Recommended Model

Cisco Switch Catalyst 9500

C9500-24Y4C

C9500-48Y4C

C9500-32QC

C9500-32C

Cisco Nexus 9300 Series

N9K-C93180YC-EX

N9K-C93180YC-FX

N9K-C9348GC-FXP

N9K-C93240YC-FX2

N9K-C9336C-FX2

N9K-C93108TC-EX

N9K-C93180LC-EX

N9K-C9364C

N9K-C9332C

N9K-C93600CD-GX

N9K-C9316D-GX

Cisco Nexus 3000 Series

N3K-C3232C

N3K-C36180YC-R

N3K-C31108PC-V

N3K-C31108TC-V

N3K-C3636C-R

N3K-C3264C-E

N3K-C3132C-Z

N3K-C34180YC

N3K-C3464C

Cisco Nexus 9500 Series

N9K-X9636C-R

N9K-X9636C-RX

Cisco Nexus 9200 Series

N9K-C92160YC-X

N9K-C92300YC

N9K-C9236C

N9K-C92304QC


Compare to Similar Items


Table 3 shows the comparison.

Parameters

QSFP-100G-CU1M

QSFP-100G-CU2M

QSFP-100G-CU3M

QSFP-100G-CU5M

Description

Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 1- meter

Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 2- meter

Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3- meter

Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 5- meter

Nominal Wavelength (nm)

\

\

\

\

Cable Type

Direct-attach copper cable assembly

Direct-attach copper cable assembly

Direct-attach copper cable assembly

Direct-attach copper cable assembly

Core Size (Microns)

\

\

\

\

Modal Bandwidth (MHz*km)

\

\

\

\

Cable Distance

1m

2m

3m

5m

Power Consumption (W)

1.5

1.5

1.5

1.5

Pull Tab Color

Beige

Brown

Orange

Gray


Get More Information


Do you have any question about the QSFP-100G-CU3M?

Contact us now via [email protected].

Specific Data Sheet:


QSFP-100G-CU3M Specification

Description

Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3-meter

Dimensions

13.5 x 18.4 x 72.4 mm

QSFP Port cabling specifications

Nominal Wavelength (nm)

\

Cable Type

Direct-attach copper cable assembly

Core Size (Microns)

\

Modal Bandwidth (MHz*km)*1

\

Cable Distance

3m

Power Consumption (W)

1.5

Pull Tab Color

Orange

*1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm

Environmental Conditions and Power Requirements

Commercial temperature

0 to 70°C (32 to 158°F)

Storage temperature

-40 to 85°C (-40 to 185°F)

Regulatory and Standards compliance

Standards

•SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013
•SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014
•802.3™-2012 IEEE Standard for Ethernet
•IEEE 802.3ba Amendment of IEEE Std 802.3-2012
•IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)
•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
•GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment
•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
•RoHS 6

Safety

•Cable jacket of QSFP copper modules is UL E116441 Compliant
•QSFP copper cables are ELV compliant
