OEM OSX080N03 (02310PVT) Huawei Compatible SFP+ 1550nm 80km LC SM Optical Transceiver Module


Optical Transceiver, CX600, CX6M0X1080, Optical Transceiver (SFP+, 1550nm, 9.953~10.3125Gb/s, 0~4dBm, -24dBm, LC, SM, 80km)



Quick Specification


Table 1 show the quick specification

Model

OSX080N03

Part Number

02310PVT

Description

Optical Transceiver, CX600, CX6M0X1080, Optical Transceiver (SFP+, 1550nm, 9.953~10.3125Gb/s, 0~4dBm, -24dBm, LC, SM, 80km)

Level-1 category

10Gbps SFP+ Optical Module

Connector type

LC

Optical fiber type

SMF

Form factor

SFP+

Transmission rate [bit/s]

9.953 Gbit/s

10.3125 Gbit/s

Target transmission distance [km]

80 km

Application standard/Type

IEEE 802.3ae, 10GBASE-ZR/ZW

Working case temperature [°C(°F)]

0°C to 70°C (32°F to 158°F)

Center wavelength [nm]

1550 nm

Overload power (AVG) [dBm]

-7 dBm

Maximum Tx optical power (AVG) [dBm]

4 dBm

Minimum Tx optical power (AVG) [dBm]

0 dBm

Minimum extinction ratio [dB]

9 dB

Rx sensitivity (AVG) [dBm]

-24 dBm

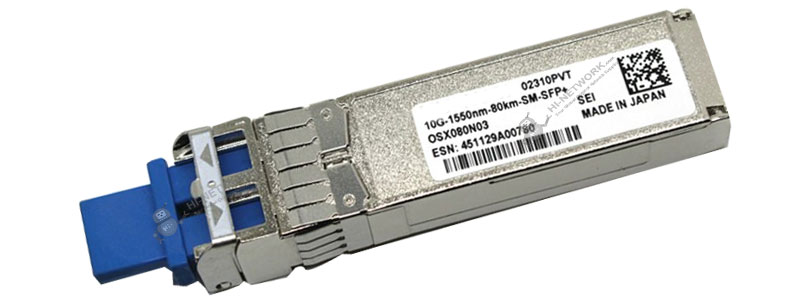

Figure 1 shows the appearance.



huawei-osx080n03-maim-datasheet






Get More Information


Do you have any question about the OSX080N03 (02310PVT)?

Contact us now via [email protected].


Specific Data Sheet:


OSX080N03 Specification

Basic Information

Model

OSX080N03

Part Number

02310PVT

Description

Optical Transceiver, CX600, CX6M0X1080, Optical Transceiver (SFP+, 1550nm, 9.953~10.3125Gb/s, 0~4dBm, -24dBm, LC, SM, 80km)

Level-1 category

10Gbps SFP+ Optical Module

Module name

10Gbps-SFP+-SMF-1550nm-80km-commercial

Form factor

SFP+

Application standard

IEEE 802.3ae, 10GBASE-ZR/ZW

Connector type

LC

Optical fiber type

SMF

Bit error ratio (BER)

<1x10E-12

Working case temperature [°C(°F)]

0°C to 70°C (32°F to 158°F)

DDM options

SFF-8472

Environment standard

RoHS

Security standard

FCC Class B, IEC 60825-1 Class 1

ESD(HBM1) [V]

500

Transmission rate [bit/s]

9.953 Gbit/s
10.3125 Gbit/s

Target transmission distance [km]

80 km

Transmitter Optical Characteristics

Center wavelength [nm]

1550 nm

Tx operating wavelength range [nm]

1530 nm - 1565 nm

Maximum Tx optical power (AVG) [dBm]

4 dBm

Maximum Tx optical power (OMA) [dBm]

-

Minimum Tx optical power (AVG) [dBm]

0 dBm

Minimum Tx optical power (OMA) [dBm]

-

Minimum extinction ratio [dB]

9 dB

Receiver Optical Characteristics

Rx operating wavelength range [nm]

1260 nm - 1565 nm

Rx sensitivity (AVG) [dBm]

-24 dBm

Rx sensitivity (OMA) [dBm]

-

Overload power (AVG) [dBm]

-7 dBm

Overload power (OMA) [dBm]

-

Others

Note

The interface standard is Huawei-specific. Self-loop is not supported. An optical attenuator must be added if self-loop is required.
