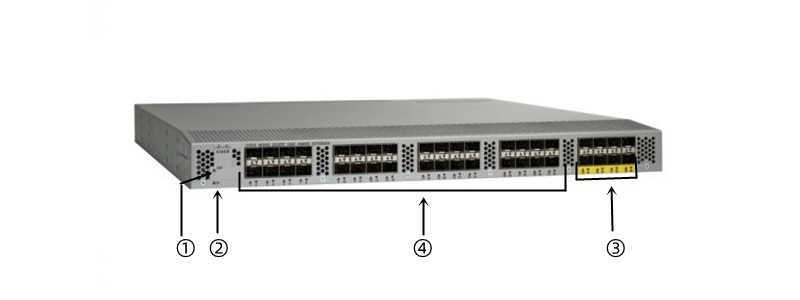

Fabric extender host interfaces

32

Fabric extender host interfaces type

1/10 Gigabit Ethernet ports SFP/SFP+ (supported transceiver and cables include Twinax SFP-H10GB-CU1M, SFP-H10GB-

CU3M, SFP-H10GB-CU5M, SFP-H10GB-ACU7M, and SFP-H10GB-ACU10M; SFP+ SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR,

and SFP-10G-LR-S; and SFP GLC-T, GLC-SX-MM, GLC-LH-SM, SFP-GE-T, SFP-GE-S, and SFP-GE-L)

AOC cables:

FP-10G-AOC1M,

SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, and SFP-10G-AOC10M

Fabric extender fabric interfaces

8

Fabric extender fabric interfaces type

Fiber: Cisco Fabric Extender Transceiver (FET-10G) and SFP+ optics (SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, and SFP-

10G-LR-S)

Copper: 10 Gigabit Ethernet SFP+ passive Twinax copper cables (SFP-H10GB-CU1M, SFP-H10GB-CU3M, and SFP-H10GB-

CU5M) and active Twinax copper cables (SFP-H10GB-ACU7M and SFP-H10GB-ACU10M)

AOC cables:

SFP-10G-AOC1M,

SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, and SFP-10G-AOC10M

AOC breakout cables: QSFP-4X10G-AOC1M, QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, QSFP-4X10G-AOC5M, QSFP-

4X10G-AOC7M, and QSFP-4X10G-AOC10M

Copper breakout cables: QSFP-4SFP10G-CU1M, QSFP-4SFP10G-CU3M, QSFP-4SFP10G-CU5M, QSFP-4x10G-AC7M, and

QSFP-4x10G-AC10M

Distance between Cisco Nexus 2000 Series Fabric Extender and Cisco Nexus 5000 or 6000 Series Switch: Up to 10 km

(300m for FCoE traffic)

Fabric speed

80 Gbps in each direction (160 Gbps full duplex)

Oversubscription

4:1

Performance

Hardware forwarding at 800 Gbps or 595 mpps

FCoE

FCoE supported

Cisco parent switch

Cisco Nexus 5000 Series

Cisco Nexus 6000 Series

Cisco Nexus 7000 Series

Cisco Nexus 9000 Series

Minimum software

Cisco NX-OS Software Release 5.1(3)N(1)1 (Cisco Nexus 5000 Series)

Cisco Nexus 6000 Series Switches running Cisco NX-OS Software Release 6.0 and later

Cisco NX-OS Software Release 6.1(1) on the Cisco Nexus 7000 Series

Cisco NX-OS Software Release 6.1 on the Cisco Nexus 9000 Series

Dimensions (H x W x D)

1.72 x 17.3 x 17.7 in. (4.37 x 43.94 x 44.96 cm)

Weight

18.3 lb (8.3 kg)

Environment

Operating temperature: 32 to 104°F (0 to 40°C)

Nonoperating temperature: -4 to 158°F (-20 to 70°C)

Humidity: 5 to 95 percent (noncondensing)

Altitude: 0 to 10,000 ft (0 to 3000m)

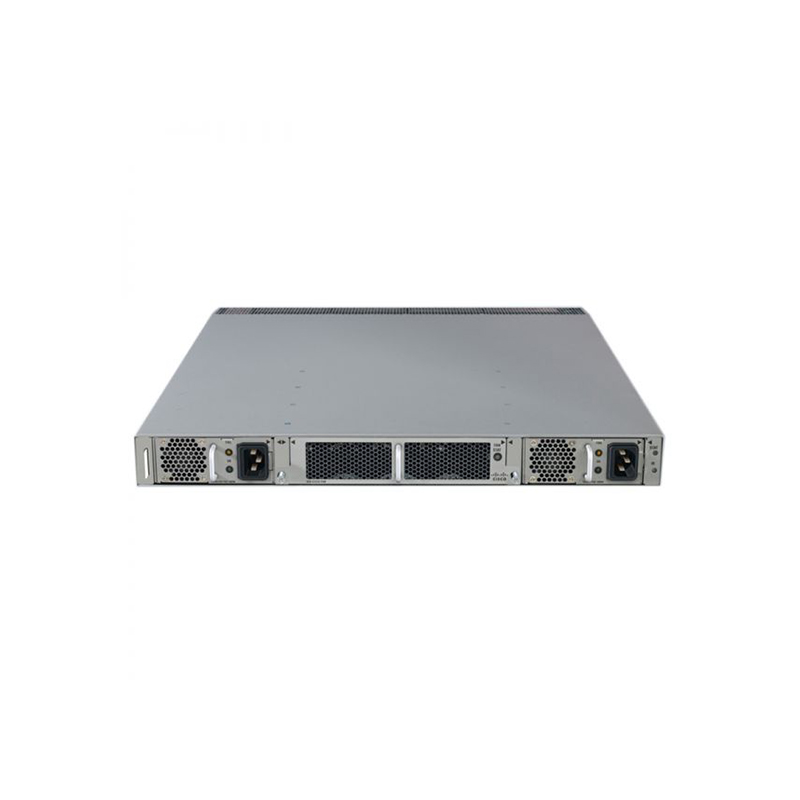

Power supply

N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, and N2200-PDC-350W-B

Fan tray

N2K-C2232-FAN and N2K-C2232-FAN-B

Typical input operating power

210W (maximum 270W)

Input current

2.5A (typical); 4.1A (maximum)

Note: Input current listed for 110V; divide by 2 for 220V

Supply will surge on AC power-up for a fraction of a second beyond this rating

Output current

20A (typical); 33A (maximum)

Heat dissipation

806 BTU/hour (typical); 1330 BTU/hour (maximum)

Regulatory compliance

Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.

Safety

UL 60950-1

CAN/CSA-C22.2 No. 60950-1EN 60950-1

IEC 60950-1AS/NZS 60950-1GB4943

EMC: Emissions

47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EMC: Immunity

EN50082-1

EN61000-6-1

EN55024

CISPR24

EN300386

KN 61000-4 series

RoHS

The Cisco Nexus 2148T is RoHS-5 compliant, and the Cisco Nexus 2224T, 2248TP, 2232PP, 2248PQ, 2232TM, and 2232TM-E are RoHS-6 compliant.

Network Equipment Building Standards (NEBS)

The Cisco Nexus 2248TP, 2248TP-E, and 2232PP meet NEBS level-3 standards (hardware revision 3).

Layer 2 features

Layer 2 VLAN trunks

IEEE 802.1Q VLAN encapsulation

Cisco EtherChannel technology on uplinks

PortChannel on server ports on Cisco Nexus 2200 platforms

Advanced PortChannel hashing

Jumbo frames on all ports (up to 9216 bytes)

Pause frames (Priority Flow Control [PFC] and IEEE 802.3x)

Private VLANs (promiscuous only on uplinks)

Local multicast replication on Cisco Nexus 2200 platform (8000 entries)

Autonegotiation to 1000BASE-T; full duplex on host interfaces

Enhanced Ethernet

DCB (Cisco Nexus 2232PP)

Quality of service (QoS)

Layer 2 IEEE 802.1p (class of service [CoS])

8 hardware queues per port (Cisco Nexus 2200 platforms), or 4 hardware queues per port (Cisco Nexus 2148T)

Per-port QoS configuration

Local policing on Cisco Nexus 2200 platform (64 policers)

CoS trust

Configurable tail-drop threshold on Cisco Nexus 2200 platforms

Egress strict-priority queuing

Egress port-based scheduling: Weighted Round Robin (WRR)

High availability

Hot-swappable field-replaceable power supplies and fan modules

1:1 power redundancy

Uplink traffic management through Cisco EtherChannel hashing or static port pinning

vPCs for dual-homed active-active connectivity across two Cisco Nexus 5000 or 6000 Series Switches

vPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus 2000 Series Fabric Extenders

ISSU

Security

Local classification (256 access control list [ACL] entries)

Management

Fabric extender management using in-band management

Locator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced)

Per-port locator and beacon LEDs

Syslog

Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3)

Enhanced SNMP MIB support

XML (NETCONF) support

Remote Monitoring (RMON)

Cisco Discovery Protocol Versions 1 and 2

Cisco Switched Port Analyzer (SPAN) source on server ports

Power-on self-test (POST)

Cisco Generic Online Diagnostics (GOLD): Ethernet

Comprehensive bootup diagnostic tests

CiscoWorks

Cisco Data Center Network Manager (DCNM); the Cisco Nexus 2000 Series is managed through the parent Cisco Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI)

Configuration MIBs

ENTITY-MIB

IF-MIB

FABRIC-EXTENDER MIB

CISCO-ENTITY-EXT-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

CISCO-ENTITY-SENSOR-MIB

CISCO-ETHERNET-FABRIC-EXTENDER-MIB

Monitoring MIBs

RMON-MIB

Industry standards

IEEE 802.1p: CoS prioritization

IEEE 802.1Q: VLAN tagging

IEEE 802.3: Ethernet

IEEE 802.3ae: 10 Gigabit Ethernet

SFF 8431 SFP+ support

IEEE 802.3u 100BASE-TX specification

IEEE 802.3ab 1000BASE-T specification

IEEE 802.3an 10GBASE-T

10GBASE-SR

10GBASE-LR

RMON

SFF-8461
