Huawei Switch S5736-S48T4XC (98011026)


The S5700 series Ethernet switches are next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei's unified platform software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.



Quick Specification


Table 1 shows the Quick Specification.

Model

S5736-S48T4XC

Part Number

98011026

Description

S5736-S48T4XC (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*expansion slot, without power module)

Dimensions with packaging (H x W x D)

150.0 mm x 710.0 mm x 560.0 mm (5.91 in. x 27.95 in. x 22.05 in.)

Weight with packaging

8.2 kg (18.08 lb)

Memory

2 GB

Flash memory

1 GB in total. To view the available flash memory size, run the display version command.

Typical power consumption

53 W

Maximum power consumption

60 W

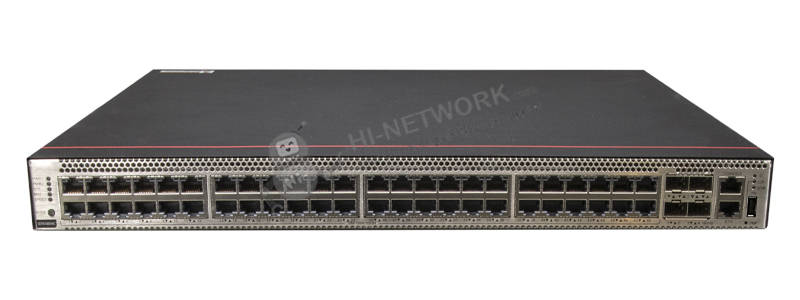

Figure 1 shows the appearance of S5736-S48T4XC.

front-top-s5736-s48t4xc-datasheet


Product Details


Figure 2 shows the structure of S5736-S48T4XC.

structure-s5736-s48t4xc-datasheet

Note:

(1)

Forty-eight 10/100/1000BASE-T ports

(7)

Ground screw

(2)

Four 10GE SFP+ optical ports

(8)

Rear card slot

(3)

One console port

(9)

Fan module slot 1

(4)

One ETH management port

(10)

Fan module slot 2

(5)

One USB port

(11)

Power module slot 1

(6)

One PNP button

(12)

Power module slot 2


Get More Information

Do you have any question about the S5736-S48T4XC (98011026)?

Contact us now via [email protected].

Specific Data Sheet:


S5736-S48T4XC Specification

Model

S5736-S48T4XC

Part Number

98011026

Description

S5736-S48T4XC (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*expansion slot, without power module)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

150.0 mm x 710.0 mm x 560.0 mm (5.91 in. x 27.95 in. x 22.05 in.)

Chassis height [U]

1

Chassis material

Metal

Weight without packaging [kg(lb)]

5.2 kg (11.46 lb)

Weight with packaging [kg(lb)]

8.2 kg (18.08 lb)

Typical power consumption [W]

53

Typical heat dissipation [BTU/hour]

180.84

Maximum power consumption [W]

60

Maximum heat dissipation [BTU/hour]

204.73

Static power consumption [W]

34

MTBF [years]

70.89

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

44.7

Noise at normal temperature (acoustic pressure) [dB(A)]

32.6

Number of card slots

1

Number of power slots

2

Number of fans modules

2

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

- The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.

- The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

- The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

- AC input: 100 V AC to 240 V AC; 50/60 Hz

- DC input: –48 V DC to –60 V DC

Input voltage range [V]

- AC input: 90–290 V AC; 45–65 Hz

- DC input: -38.4 V DC to -72 V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

Memory

2 GB

Flash memory

1 GB in total. To view the available flash memory size, run the display version command.

Console port

RJ45

Eth Management port

RJ45

USB

Supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±6 kV

Power supply surge protection [kV]

- AC power module configured: ±6 kV in differential mode, ±6 kV in common mode

- DC power module configured: ±2 kV in differential mode, ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Pluggable

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left, front and right, air exhaustion from behind

PoE

Not supported

Certification

EMC certification

Safety certification

Manufacturing certification
