Huawei Switch S5735I-S8U4XN-V2 (98012066)


The S5700 series Ethernet switches are next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei's unified platform software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.



Quick Specification


Table 1 shows the Quick Specification.

Model

S5735I-S8U4XN-V2

Part Number

98012066

Description

S5735I-S8U4XN-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless)

Dimensions with packaging (H x W x D)

235.0 mm x 120.0 mm x 205.0 mm (9.25 in. x 4.72 in. x 8.07 in.)

Weight with packaging

2.21 kg (4.87 lb)

Memory

2 GB

Flash memory

Physical space: 1 GB

Typical power consumption [W]

20.45 W

Maximum power consumption [W]

- Without PoE: 21.7 W

- Full PoE load: 421.7 W (PoE: 400 W)

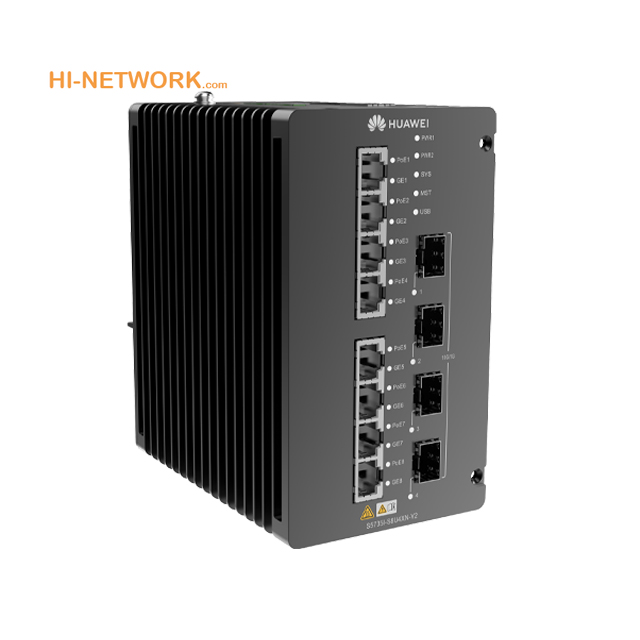

Figure 1 shows the appearance of S5735I-S8U4XN-V2.

front-top-s5735i-s8u4xn-v2-datasheet


Product Details

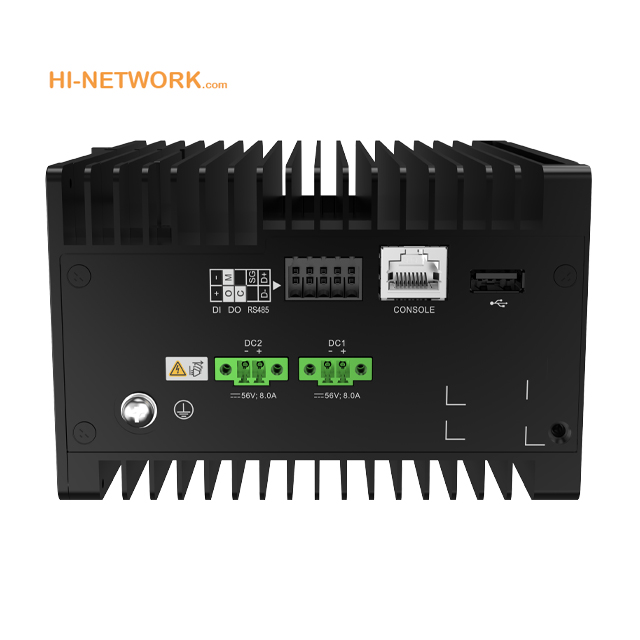

Figure 2 shows the structure of S5735I-S8U4XN-V2.

structure-s5735i-s8u4xn-v2-datasheet

Note:

(1)

DI port

(6)

Ground screw

(2)

DO port

(7)

Two DC input power sockets

(3)

RS485 port

(8)

Eight 10/100/1000BASE-T PoE++ ports

(4)

One console port

(9)

Four 10GE SFP+ ports

(5)

One USB port


Get More Information

Do you have any question about the S5735I-S8U4XN-V2 (98012066)?

Contact us now via [email protected].

Specific Data Sheet:


S5735I-S8U4XN-V2 Specification

Model

S5735I-S8U4XN-V2

Part Number

98012066

Description

S5735I-S8U4XN-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 86.0 mm x 133.0 mm (5.91 in. x 3.39 in. x 5.24 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 86.0 mm x 142.0 mm (6.38 in. x 3.39 in. x 5.59 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

235.0 mm x 120.0 mm x 205.0 mm (9.25 in. x 4.72 in. x 8.07 in.)

Chassis height [U]

3.65

Chassis material

Metal

Weight without packaging [kg(lb)]

1.86 kg (4.1 lb)

Weight with packaging [kg(lb)]

2.21 (4.87)

Typical power consumption [W]

20.45

Typical heat dissipation [BTU/hour]

69.74

Maximum power consumption [W]

- Without PoE: 21.7 W

- Full PoE load: 421.7 W (PoE: 400 W)

Maximum heat dissipation [BTU/hour]

- Without PoE: 74.01

- Full PoE load: 1438.11 (PoE: 1364.10)

Static power consumption [W]

15.56

MTBF [years]

89.43

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

Noise-free (no fans)

Noise at normal temperature (acoustic pressure) [dB(A)]

Noise-free (no fans)

Number of card slots

0

Number of power slots

0

Number of fans modules

0

Redundant power supply

1+1

Note: If the PAC240S56-CN power module is used, one PAC240S56-CN can supply power to only one S5735I-S8U4XN-V2 at a time.

Long-term operating temperature [°C(°F)]

01800 m (05906 ft.) altitude, industrial optical modules:

- Sealed cabinet:40°C to +60°C (40°F to +140°F)

- Vented cabinet (80 LFM):40°C to +70°C (40°F to +158°F)

- Blower-equipped cabinet (200 LFM):40°C to +75°C (40°F to +167°F)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)]

-40°C to +85°C (-40°F to +185°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)

0-5000 m (0-16404 ft.)

Power supply mode

DC external

Rated input voltage [V]

DC input: 56 V DC

Input voltage range [V]

DC input:

54 V DC to 57 V DC (PoE/PoE+/PoE++)

48 V DC (PoE)

Maximum input current [A]

8.0 A

Memory

2 GB

Flash memory

Physical space: 1 GB

Console port

RJ45

Eth Management port

Not supported

USB

Supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

DC power: ±2 kV in common mode and ±1 kV in differential mode

Ingress protection level (dustproof/waterproof)

IP40

Types of fans

None

Heat dissipation mode

Natural heat dissipation

Airflow direction

-

PoE

Supported

Certification

EMC certification

Safety certification

Manufacturing certification
