Model

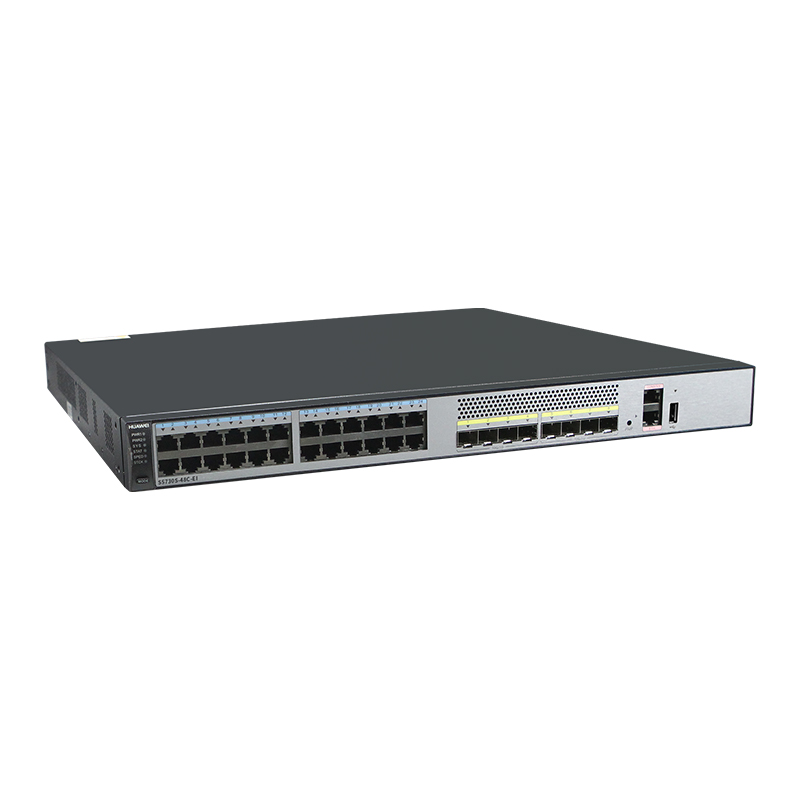

S5730S-48C-EI-AC

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

47.83 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)

Weight (including package)

8.2 kg (18.08 lb)

Stack ports

Any 10GE SFP+ or 40GE QSFP+ ports

Ports on the 2-port QSFP+ rear stack card

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

62.4 W (without card)

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

·         No PoE power consumption

39.02 W (without card)

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 59.4 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

AC power modules configured: 0-5000 m (0-16404 ft.)

DC power modules configured: 0-2000 m (0-6562 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
