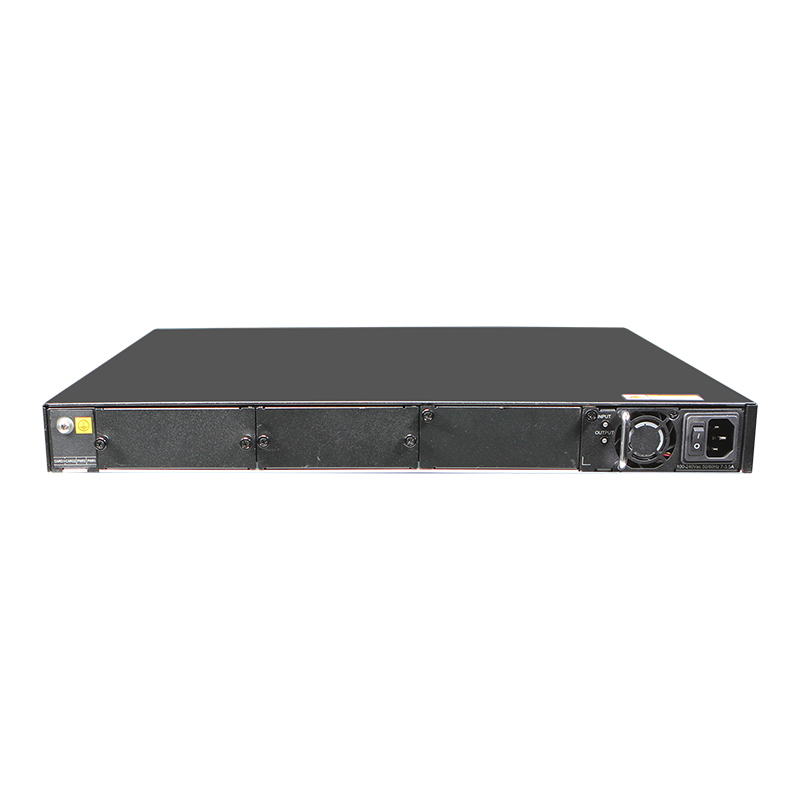

Model

S5730-68C-PWH-HI

Memory (RAM)

2 GB

Flash

1 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

48.31 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

Using 500 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using 650 W DC or 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.).

Weight (including package)

8.7 kg (19.18 lb)

Stack ports

10GE SFP+ ports on the front panel, or 10GE ports or 40GE QSFP+ ports on the rear card

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

Using 650 W DC power modules:

Not providing the PoE function: 106 W (without card)

100% PoE loads: 830 W (system power consumption: 130 W, PoE: 700 W, without card)

Using 500 W AC power modules:

Not providing the PoE function: 106 W (without card)

100% PoE loads: 830 W (system power consumption: 90.8 W, PoE: 739.2 W, without card)

Using 1150 W AC or 1000 W AC power modules:

Not providing the PoE function: 116.3 W (without card)

100% PoE loads: 1608 W (system power consumption: 168 W, PoE: 1440 W, without card)

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

·         No PoE power consumption

Using 650 W DC or 500 W AC power modules: 80 W (without card)

Using 1150 W AC or 1000 W AC power modules: 83 W (without card)

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 69.6 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
