Part Number

98010835

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

41.29 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

±1.5 kV in differential mode, ±6 kV in common mode

Power supply surge protection

Impulse current:

·         AC input: 20 kA

Surge:

·         AC input: ±6 kV in differential mode, ±6 kV in common mode

·         12 V DC output: ±2 kV in differential mode, ±4 kV in common mode

·         24 V AC output: ±2 kV in differential mode, ±6 kV in common mode

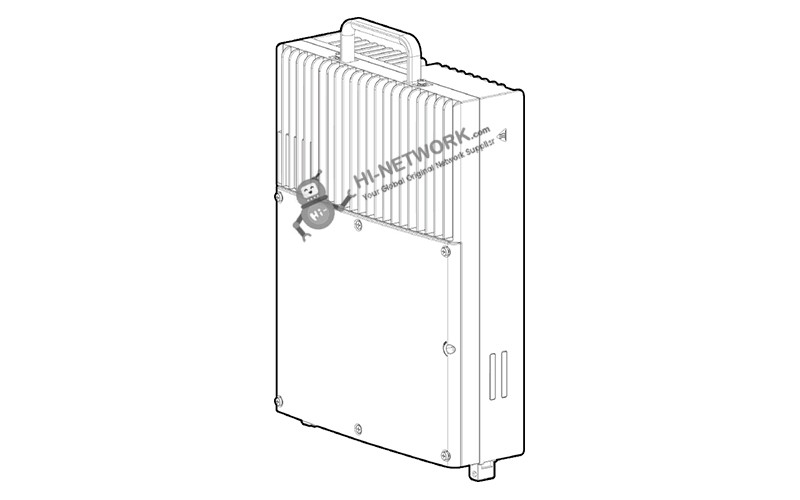

Dimensions (H x W x D)

Basic dimensions: 390 mm x 300 mm x 110 mm (15.4 in. x 11.8 in. x 4.3 in.)

Maximum dimensions: 474.75 mm x 303.3 mm x 110 mm (18.69 in. x 11.94 in. x 4.3 in.)

Weight (with packaging)

13.1 kg (28.88 lb)

Stack ports

Not supported

RTC

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

220 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

176 V AC to 264 V AC, 45 Hz to 66 Hz

Maximum power consumption (100% throughput, full speed of fans)

Without PoE: 26 W

Total power consumption: 188 W (system power consumption: 38 W, total output power: 150 W)

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

·         No PoE power consumption

25 W

Operating temperature

-40°C to +55°C (-40°F to +131°F)

Storage temperature

-40°C to +85°C (-40°F to +185°F)

IP rating

IP66

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-4000 m (0-13123 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
