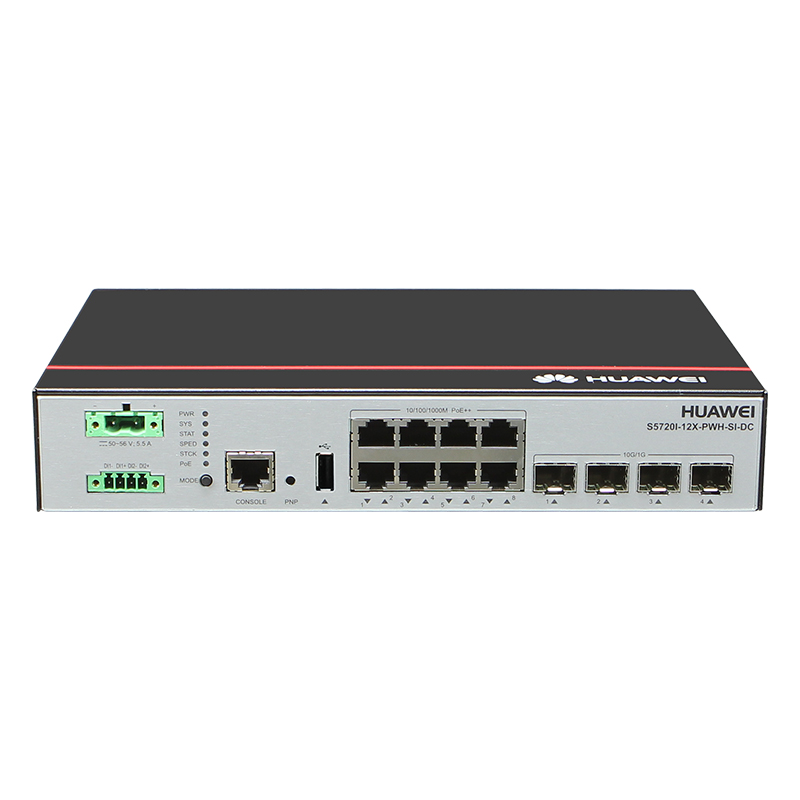

Part Number

98010795

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

64.23 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

±1.5 kV in differential mode, ±6 kV in common mode

Power supply surge protection

±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.8 in. x 7.1 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 186.36 mm (1.72 in. x 9.8 in. x 7.34 in.)

Weight (with packaging)

2.5 kg (5.51 lb)

Stack ports

Not supported

RTC

Not supported

RPS

Not supported

PoE

Supported

Rated voltage range

50 V DC to 56 V DC

Maximum voltage range

46 V DC to 57 V DC

Maximum power consumption (100% throughput, full speed of fans)

Using PAC-260WA-E power module:

·         Without PoE: 28.8 W

·         100% PoE loads: 288.4 W (system power consumption: 48.4 W, PoE: 240 W)

Using PAC240S56-CN power module:

·         Without PoE: 26.5 W

·         100% PoE loads: 270.1 W (system power consumption: 50.1 W, PoE: 220 W)

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

·         No PoE power consumption

Using PAC-260WA-E power module:

27.6 W

Using PAC240S56-CN power module:

25 W

Operating temperature

-40°C to +65°C (-40°F to +149°F) (installed in the sealing cabinet)

-40°C to +70°C (-40°F to +158°F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM)

-40°C to +75°C (-40°F to +167°F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM)

Storage temperature

-40°C to +85°C (-40°F to +185°F)

IP rating

IP30

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
