| Detail: | S5720-56C-PWR-HI-AC(48 Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+,with 2 interface slots,with 1150W AC power supply) |
| Model: | S5720-56C-PWR-HI-AC (02358599) |
| Condition: | Factory Sealed New |
| Related: | Huawei Switch S5720-56C-PWR-HI-AC1 (02350MTQ) Huawei Switch S5720-56C-PWR-EI-AC (02359576) Huawei Switch S5720-56C-PWR-EI-DC (02350NHM) Huawei Switch S5720-56C-PWR-EI-AC1 (02359578) |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
17.1
|
2-7 Days
US$
|
| Payment: |
More
|
Huawei S5720-56C-PWR-HI-AC is advanced Gigabit Ethernet switch that provides rich agile features, based on Huawei Versatile Routing Platform (VRP). With forty-eight Ethernet 10/100/1,000 ports, and four 10 Gig SFP+, the switch provides the ubiquitous service function to ensure consistent user experience, what's more, the special PoE function guarantees constant power supply to meet customers' electricity demand. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switch supports flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple operation and maintenance. The S5720-56C-PWR-HI-AC switch is the best choice for the branches of high-quality large- and middle-sized campus networks.
Product Code | S5720S-52P-SI-AC |
Part Number | 02358599 |
Memory (RAM) | 4 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Supported |
Weight (with packaging) | 10.9 kg (24.03 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 510.5 mm (1.75 in. x 17.4 in. x 20.1 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 541.1 mm (1.75 in. x 17.4 in. x 21.3 in.) |

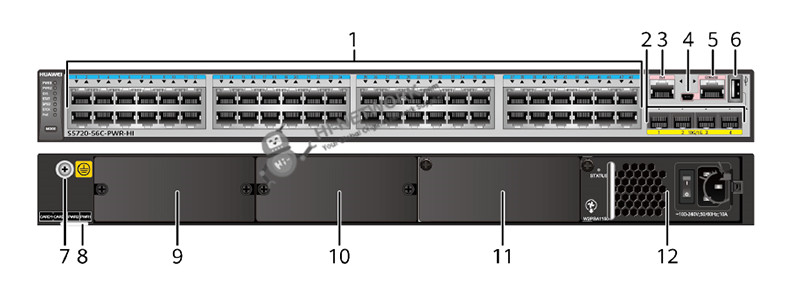

① | Forty-eight PoE+ 10/100/1000BASE-T ports |
② | Four 10GE SFP+ ports |
③ | One ETH management port |
④ | One mini USB port |
⑤ | One console port |
⑥ | One USB port |
⑦ | Ground screw |
⑧ | ESN label |
⑨ | Rear card slot 1 |
⑩ | Rear card slot 2 |
11 | Power module slot 2 |
12 | Power module slot 1 |
Model | Description |
10G-SFP+ Optical Transceiver | |
SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC) |
OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC) |
OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC) |
Power Module | |
W2PSA1150 | 1150W AC Power Module |
GE-SFP Optical Transceiver | |
eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
Models | S5720-56C-HI-AC | S5720-56C-PWR-HI-AC |
Fixed Ports | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ |
Power Supply | 600W AC power supply | 600W/1,150W AC power supply |
Forwarding Performance | 192 Mpps | 192 Mpps |
Switching Capacity | 598 Gbit/s | 598 Gbit/s |
PoE | NA | Supported |
Power Consumption | < 183.3W | Without PD: < 188.74W, |
Do you have any question about the S5720-56C-PWR-HI-AC 02358599?
Contact us now via[email protected]
Product Name | S5720-56C-PWR-HI-AC |
Part Number | 02358599 |
Memory (RAM) | 4 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 39.31 years when no interface card is configured; 37.53 years when a 4-port 10GE interface card is configured |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±1 kV |
Power supply surge protection | ±2 kV in differential mode, ±4 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 510.5 mm (1.75 in. x 17.4 in. x 20.1 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 541.1 mm (1.75 in. x 17.4 in. x 21.3 in.) |
Weight (with packaging) | 10.9 kg (24.03 lb) |
Stack ports | Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card |
RTC | Supported |
RPS | Not supported |
PoE | Supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput, full speed of fans) | 1739 W (system power consumption: 299 W, PoE: 1440 W) |
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled · No PoE power consumption | 132.35 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 69.8 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
