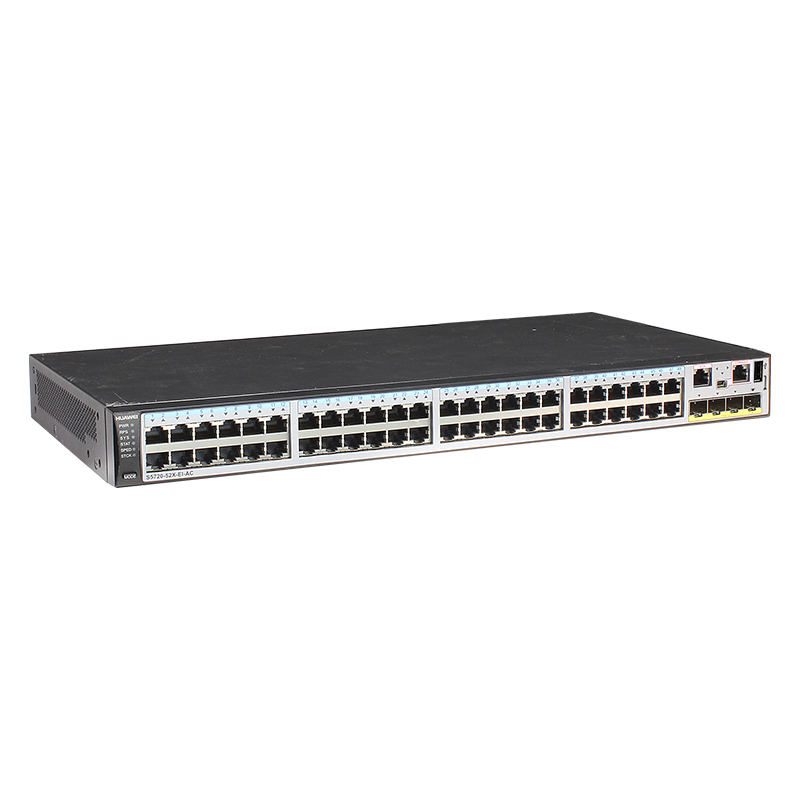

Huawei Switch S5720-52X-EI-AC (02359589)

2727
4.9
4.9/5.0
Q/A
23 sold/Mon
Detail: S5720-52X-EI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,AC 110/220V)
Model: S5720-52X-EI-AC (02359589)
Condition: Factory Sealed New
Related: Huawei Switch S5720-52X-LI-AC (98010606) Huawei Switch S5720-52X-SI-AC (02350DLV) Huawei Switch S5720-52X-LI-48S-AC (98010813) Huawei Switch S5720-52X-PWR-LI-ACF (98010621)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
8.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S5720-52X-EI-AC (02359589)


Huawei S5720-52X-EI-AC switch, Next-Generation Enhanced Gigabit Switches, supports a large capacity of 2 GB SDRAM and 4 x 10GE uplink ports.


Quick Specification

Model

S5720-52X-EI-AC

Part Number

02359589

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

9.5 kg (20.95 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

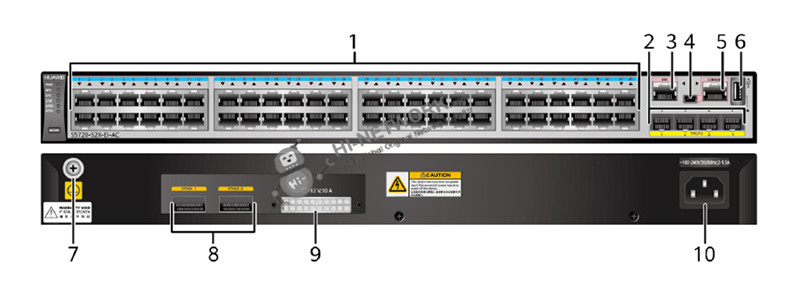

Appearance:

s5720-52x-ei-ac-datasheet



Forty-eight 10/100/1000BASE-T ports



Four 10GE SFP+ ports



One ETH management port



One mini USB port



One console port



One USB port



Ground screw



Two QSFP+ stack optical ports



RPS socket



AC socket


The Accessories for S5720-52X-EI-AC

Recommended Transceivers:

Model

Description

40GE optical transceivers

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.15km, MPO) (Connect to four SFP+ Optical Transceiver)

GE optical transceivers

LE2MGSC40DE0

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC)

LE2MGSC40ED0

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

S-SFP-GE-LH80-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)

SFP-GE-ZBXD1

Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC)

SFP-GE-ZBXU1

Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx) ,80km, LC)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

eSFP-GE-ZX100-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)

GE-CWDM optical transceivers

CWDM-SFPGE-1491

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC)

CWDM-SFPGE-1511

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC)

CWDM-SFPGE-1531

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1531nm, 80km, LC)

CWDM-SFPGE-1551

CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1551nm, 80km, LC)

GE-DWDM optical transceivers

DWDM-SFPGE-1542-14

DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1542.14nm, 120km, LC)

DWDM-SFPGE-1542-94

DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1542.94nm, 120km, LC)

DWDM-SFPGE-1543-73

DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1543.73nm, 120km, LC)

DWDM-SFPGE-1544-53

DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1544.53nm, 120km, LC)

10GE SFP+ optical transceivers

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

OSX040N01

Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC)

OSXD22N00

Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM)

SFP-10G-BXD1

10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1330nm / RX1270nm, 10km, LC)

SFP-10G-BXU1

10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm / RX1330nm, 10km, LC)

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC)

SFP-10G-iLR

Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC)

10GE-CWDM optical transceiver

SFP-10G-ZCW1471

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1471nm, 70km, LC)

SFP-10G-ZCW1491

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1491nm, 70km, LC)

SFP-10G-ZCW1511

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1511nm, 70km, LC)

SFP-10G-ZCW1531

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1531nm, 70km, LC)

SFP-10G-ZCW1551

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1551nm, 70km, LC)

SFP-10G-ZCW1571

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1571nm, 70km, LC)

SFP-10G-ZCW1591

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1591nm, 70km, LC)

SFP-10G-ZCW1611

Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1611nm, 70km, LC)

GE copper transceivers

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)


Compare to Similar Items:


Models

S5720-52X-EI-AC

S5720-52P-EI-AC

Downlink Ports

48 x 10/100/1,000 Base-T Ethernet ports

48 x 10/100/1,000 Base-T Ethernet ports

Uplink Ports

4 x 10G SFP+ ports

4 x 1,000 Base-X SFP ports

PoE Support

N/A

N/A

Power Supply

AC power supply, supporting RPS

AC power supply, supporting RPS


Get more information


Do you have any question about the S5720-52P-SI-AC 02359589?

Contact us now via[email protected]

Specific Data Sheet:


Part Number

02359589

Model

S5720-52P-SI-AC

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

75.66 years

Mean time to repair (MTTR)

2

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

Weight (with packaging)

9.5 kg (20.95 lb)

Stack ports

GE electrical ports and GE SFP optical ports on the front panel

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

53.6 W

Typical power consumption (30% of traffic load)

·         Tested according to ATIS standard

·         EEE enabled

·         No PoE power consumption

32.2 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 52 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

AC power modules configured: 0-5000 m (0-16404 ft.)

DC power modules configured: 0-2000 m (0-6562 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
