Detail: | S5720-50X-EI-DC (46 Ethernet 10/100/1000 ports,4 10 Gig SFP+,DC -48V,front access) |
Model: | S5720-50X-EI-DC (02350NHD) |
Condition: | Factory Sealed New |
Related: | Huawei Switch S5720-50X-EI-46S-AC (02359583) Huawei Switch S5720-50X-EI-46S-DC (02350NHF) Huawei Switch S5720-50X-EI-AC (02359592) |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
8.0
|
2-7 Days
US$
|
Payment: |
More
|

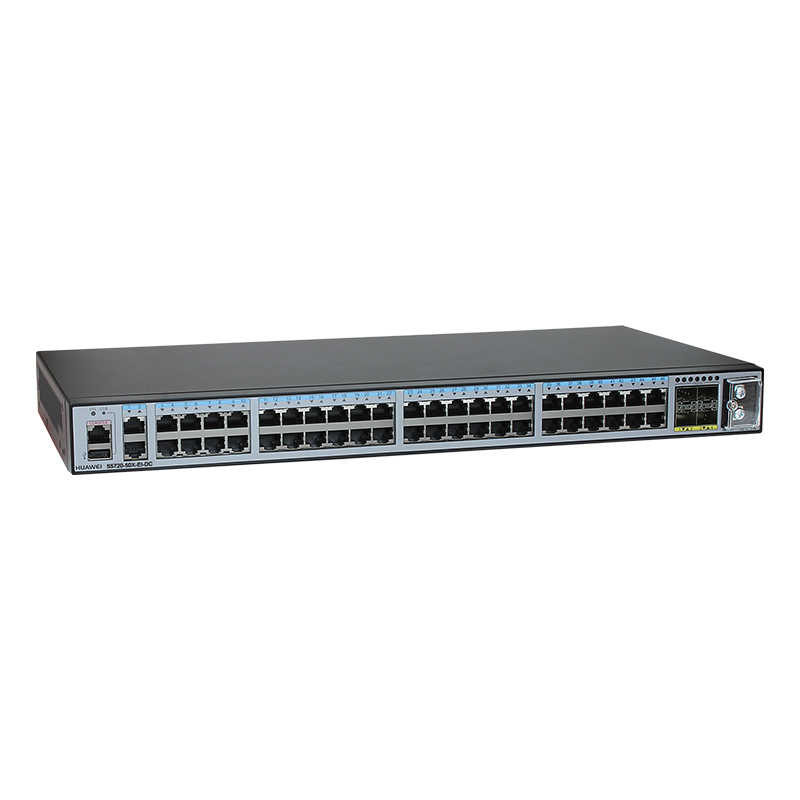

Huawei S5720-50X-EI-DC Gigabit Switch provides resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. With forty-six 10/100/1,000 Base-T Ethernet ports and four 10G SFP+ ports, its performance enhancements include advanced processing hardware, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking. Huawei S5720-50X-EI-DC Gigabit Switch is dedicated to helping customers build a reliable, secure and high performance next-generation IT network.
Model | S5720-50X-EI-DC |
Part Number | 02350NHD |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 4.7 kg (10.36 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 229.9 mm (1.72 in. x 17.4 in. x 9.05 in.) |

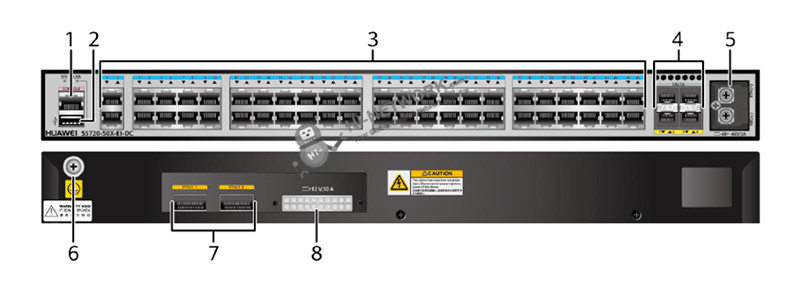

① | One console port |
② | One USB port |
③ | Forty-six 10/100/1000BASE-T ports |
④ | Four 10GE SFP+ ports |
⑤ | DC power terminal |
⑥ | Ground screw |
⑦ | Two QSFP+ stack optical ports |
⑧ | RPS socket |
Category | Model | Description |
GE-SFP Optical Transceiver | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) | ||
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | ||
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) | ||
Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) | ||
10G-SFP+ Optical Transceiver | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | ||
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
Models | ||
Fixed Ports | 46 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 46 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+ |
Extended Slots | NA | NA |
Power Supply | DC power supply, supporting RPS, power socket on the front panel | DC power supply, supporting RPS, power socket on the front panel |
Forwarding Performance | 129 Mpps | 129 Mpps |
Switching Capacity | 598 Gbit/s | 598 Gbit/s |
Front Power Input | DC: Yes | DC: Yes |
Power Consumption | 47.5W | 73.8W |
Do you have any question about the S5720-50X-EI-DC 02350NHD?
Contact us now via[email protected]
Part Number | 02350NHD |
Model | S5720-50X-EI-DC |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 74.31 years |
Mean time to repair (MTTR) | 2 |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±6 kV |
Power supply surge protection | ±1 kV in differential mode, ±2 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 229.9 mm (1.72 in. x 17.4 in. x 9.05 in.) |
Weight (with packaging) | 4.7 kg (10.36 lb) |

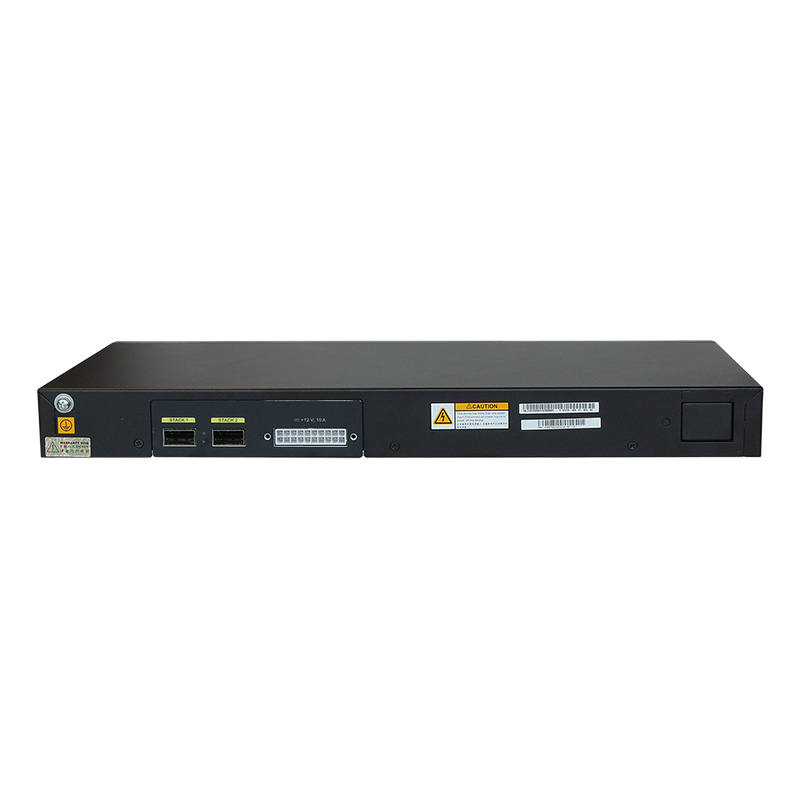

Stack ports | Two fixed QSFP+ stack ports on the rear card |
RTC | Supported |
RPS | Supported |
PoE | Not supported |
Rated voltage range | -48 V DC to -60 V DC |
Maximum voltage range | -36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 55.3 W |
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled No PoE power consumption | 47.45 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 49.3 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-2000 m (0-6562 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
