Detail: | S5720-32X-EI-24S-DC (24 Gig SFP,4 Ethernet 10/100/1000 ports,4 10 Gig SFP+,DC -48V,front access) |
Model: | S5720-32X-EI-24S-DC (02350NHE) |
Condition: | Factory Sealed New |
Related: | Huawei Switch S5720-32X-EI-DC (02350NHC) Huawei Switch S5720-32X-EI-AC (02359586) Huawei Switch S5720-32X-EI-24S-AC (02359579) |
Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
5.5
|
2-7 Days
US$
|
Payment: |
More
|
Huawei S5720-32X-EI-24S-DC is one of the S5720-EI switches. Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.
Model | S5720-32X-EI-24S-DC |
Part Number | 02350NHE |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
PoE | Not supported |
Weight with packaging [kg(lb)] | 4.2 kg (9.26 lb) |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
① | Twenty-four 100/1000BASE-X ports |
② | Four 10/100/1000BASE-T ports |
③ | Four 10GE SFP+ ports |
④ | One mini USB port |
⑤ | One console port |
⑥ | One ETH management port |
⑦ | One USB port |
⑧ | DC power terminal |
⑨ | Ground screw |
⑩ | Two QSFP+ stack optical ports |
⑪ | RPS socket |
Model | Description |
FE-SFP Optical Transceiver | |
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) | |
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) | |
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) | |
GE-SFP Optical Transceiver | |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) | |
10G-SFP+ Optical Transceiver | |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
GE Copper Transceiver | |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
Product Code | ||
Switching Capacity | 598 Gbit/s | 598 Gbit/s |
Forwarding Performance | 102 Mpps | 108 Mpps |
Extended Slot | No | One extended slot |
Fixed Interfaces | 24 x 100/1,000 Base-X SFP ports, 4 x 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports | 48 x 10/100/1,000 Base-T Ethernet ports and 4 x 1,000 Base-X SFP ports |
Do you have any question about the S5720-32X-EI-24S-DC 02350NHE?
Contact us now via[email protected]
Part Number | 02350NHE |
Model | S5720-32X-EI-24S-DC |
Memory (RAM) | 2 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 82.54 years |
Mean time to repair (MTTR) | 2 |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±6 kV |
Power supply surge protection | ±1 kV in differential mode, ±2 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
Weight (with packaging) | 4.2 kg (9.26 lb) |

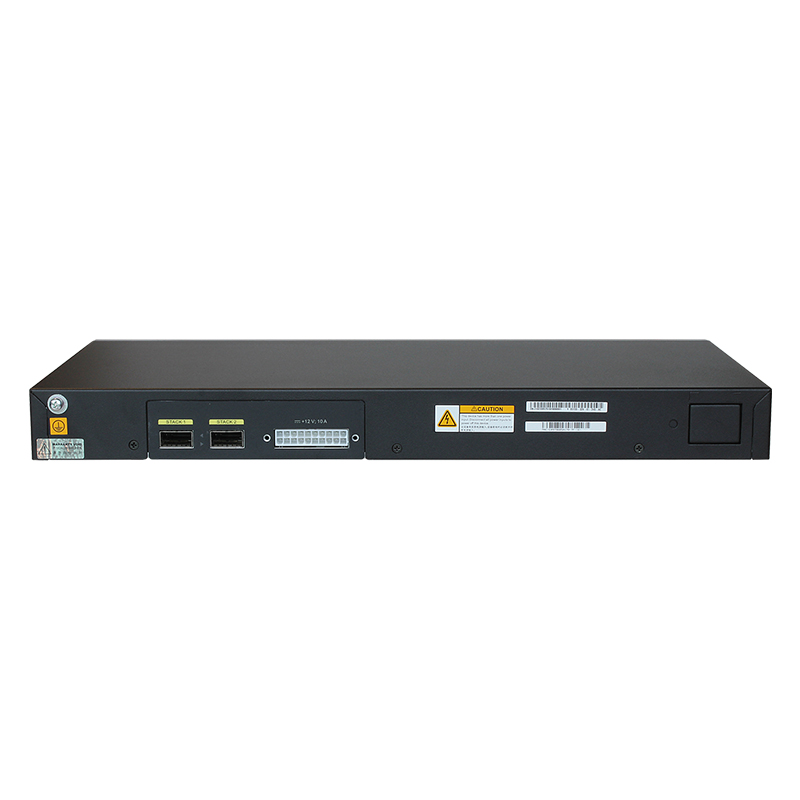

Stack ports | Two fixed QSFP+ stack ports on the rear card |
RTC | Supported |
RPS | Supported |
PoE | Not supported |
Rated voltage range | -48 V DC to -60 V DC |
Maximum voltage range | -36 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 58.9 W |
Typical power consumption (30% of traffic load) · Tested according to ATIS standard · EEE enabled No PoE power consumption | 55.46 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | < 49.3 dB(A) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
