Huawei Switch S5700-48TP-SI-DC (02352357)


Huawei S5700-SI series are gigabit Layer 3 Ethernet switches. The S5700-48TP-SI-DC supports 48 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports.



Quick Specification


Table 1 shows the quick specification.

Model

S5700-48TP-SI-DC

Part Number

02352357

Description

48 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, DC -48V, 1 extension slot

Ports

48 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports

Forwarding Performance

72 Mpps

Switching Capacity

256 Gbit/s

Stack

Supported by stack card

Stack Ports

Two stack ports available on each stack card

PoE

Not supported

Heat Dissipation

Built-in fans for intelligent air cooling

Memory (RAM)

256 MB

Flash

32 MB

Dimensions (W x D x H)

43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

Weight

Empty: ≤ 5 kg (11.02 lb)

Fully configured: ≤ 8.5 kg (18.74 lb)


Figure 1 shows the appearance of S5700-48TP-SI-DC.


front-s5700-48tp-si-dc-datasheet


Product Details

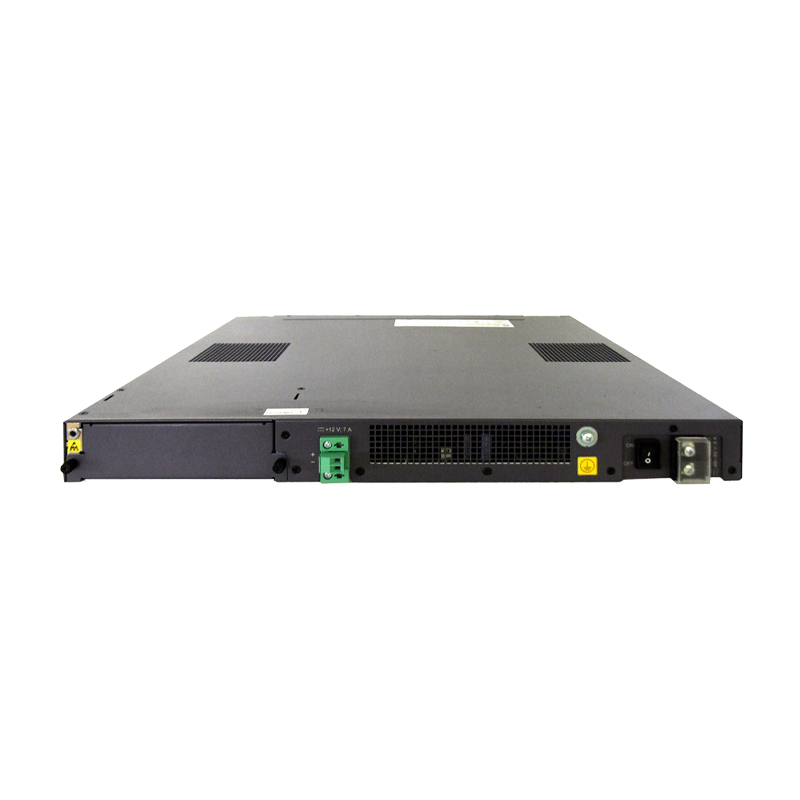

Figure 2 shows the structure of S5700-48TP-SI-DC.

structure-s5700-48tp-si-dc-datasheet


Note:

(1)

Forty-four 10/100/1000BASE-T ports

(7)

Rear card slot

(2)

Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)

(8)

Backup power socket

(3)

One console port

(9)

Ground screw

(4)

One ETH management port

(10)

Power switch

(5)

One USB port

(11)

DC power terminal

(6)

ESD jack


Get more information


Do you have any question about the S5700-48TP-SI-DC (02352357)?

Contact us now via [email protected].

Specific Data Sheet:


S5700-48TP-SI-DC Specification

Model

S5700-48TP-SI-DC

Part Number

02352357

Description

48 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, DC -48V, 1 extension slot

Memory (RAM)

256 MB

Flash

32 MB

Mean time between failures (MTBF)

34 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±2 kV

Power supply surge protection

±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

Weight

Empty:5 kg (11.02 lb)
Fully configured:8.5 kg (18.74 lb)

Stack ports

Two stack ports available on each stack card

RPS

Not supported

PoE

Not supported

Rated voltage range

-48 V DC to -60 V DC

Maximum voltage range

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

64 W

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Silent

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-2000 m (0-6562 ft.)

Certification

EMC certification
Safety certification
Manufacturing certification
