Huawei Switch S5700-24TP-SI-DC (02352343)


Huawei S5700-SI series are gigabit Layer 3 Ethernet switches. The S5700-24TP-SI-DC supports 20 10/100/1000BASE-Tports and 4 combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X).



Quick Specification


Table 1 shows the quick specification.

Model

S5700-24TP-SI-DC

Part Number

02352343

Description

24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, DC -48V, 1 DC power fixed, 1 extension slot

Ports

24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP ports

Forwarding Performance

36 Mpps

Switching Capacity

256 Gbit/s

Stack

Supported by stack card

Stack Ports

Two stack ports available on each stack card

PoE

Not supported

Heat Dissipation

Built-in fans for intelligent air cooling

Memory (RAM)

256 MB

Flash

32 MB

Dimensions (W x D x H)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight

Empty: ≤ 5 kg (11.02 lb)

Fully configured: ≤ 8.5 kg (18.74 lb)

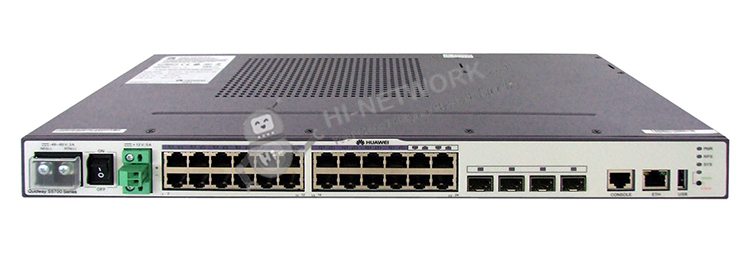

Figure 1 shows the appearance of S5700-24TP-SI-DC.


front-s5700-24tp-si-dc-datasheet


Product Details

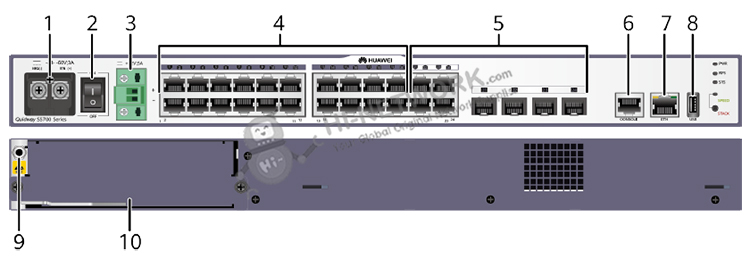

Figure 2 shows the structure of S5700-24TP-SI-DC.

front-panel-s5700-24tp-si-dc-datasheet


Note:

(1)

DC power terminal

(6)

One console port

(2)

Power switch

(7)

One ETH management port

(3)

Backup power socket

(8)

One USB port

(4)

Twenty 10/100/1000BASE-T ports

(9)

ESD jack

(5)

Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)

(10)

Rear card slot


Get more information


Do you have any question about the S5700-24TP-SI-DC (02352343)?

Contact us now via [email protected].

Specific Data Sheet:


S5700-24TP-SI-DC Specification

Model

S5700-24TP-SI-DC

Part Number

02352343

Description

24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, DC -48V, 1 DC power fixed, 1 extension slot

Memory (RAM)

256 MB

Flash

32 MB

Mean time between failures (MTBF)

37 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

±2 kV in common mode

Power supply surge protection

±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight

Empty:5 kg (11.02 lb)
Fully configured:8.5 kg (18.74 lb)

Stack ports

Two stack ports available on each stack card

RPS

Not supported

PoE

Not supported

Rated voltage range

-48 V DC to -60 V DC

Maximum voltage range

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

40 W

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Silent

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-2000 m (0-6562 ft.)

Certification

EMC certification
Safety certification
Manufacturing certification
