Huawei Switch S2750-28TP-EI-AC (02355247)

229
4.9
4.9/5.0
Q/A
1 sold/Mon
Detail: S2750-28TP-EI-AC(24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)
Model: S2750-28TP-EI-AC (02355247)
Condition: Factory Sealed New
Related: Huawei Switch S2750-20TP-PWR-EI-AC (02355249)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
9.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S2750-28TP-EI-AC (02355247)


Huawei S2750-28TP-EI-AC switch provides 24 × 10/100BASE-TX ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP. S2750-EI are the sub-series switches of S2700-EI.


Quick Specification:

Model

S2750-28TP-EI-AC

Part Number

02355247

Memory (RAM)

256 MB

Flash

200 MB

PoE

Not supported

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight

3 kg (6.62 lb)

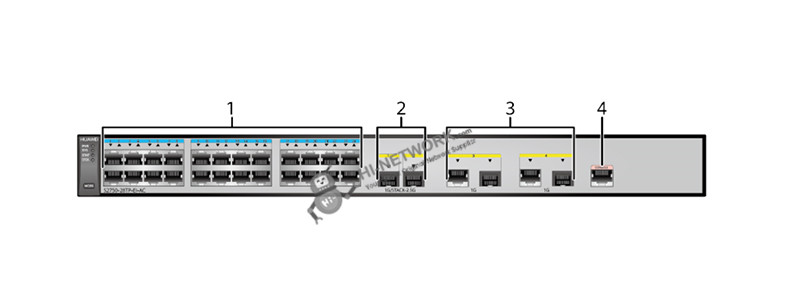

The Front Panel:

s2750-28tp-ei-ac-front-datasheet



Twenty-four 10/100BASE-TX ports



Two 1000BASE-X ports



Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)



One console port

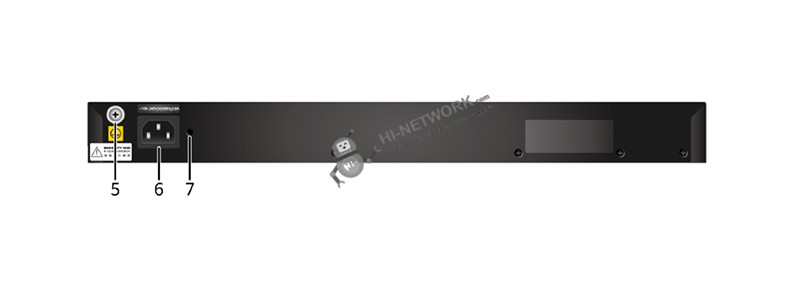

The Back Panel:

s2750-28tp-ei-ac-back-datasheet

Ground screw

AC socket

Jack reserved for AC power cable locking strap


The Accessories for S2750-28TP-EI-AC

Recommended optical transceivers:

Models

Descriptions

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)

eSFP-FE-LX-SM1310

Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)


Compare to Similar Items:

Models

S2750-28TP -EI-AC

S2750-28TP-PWR-EI-AC

Downlink Ports

24 Ethernet 10/100 ports

24 Ethernet 10/100 PoE+ ports

Uplink Ports

2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP

2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP

Power Supply

AC Power Supply

AC Power Supply

PoE

None

Supported

Version

Enhanced

Enhanced

Get More Information

Do you have any question about the S2750-28TP-EI-AC 02355247?

Contact us now via[email protected]


Specific Data Sheet:


Part Number

02355247

Model

S2750-28TP-EI-AC

Memory (RAM)

256 MB

Flash

200 MB

Mean time between failures (MTBF)

44.3 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight (with packaging)

3 kg (6.62 lb)

Stack ports

Two uplink 1000BASE-X optical ports

Stack ports

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput)

15.7 W

Typical power consumption (30% of traffic load)

l  Tested according to ATIS standard

l  No PoE power consumption

15.5 W

Operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
