Model

S1730S-S8T4S-A1

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.)

Chassis height [U]

1 U

Weight without packaging [kg(lb)]

1.38 kg (3.04 lb)

Weight with packaging [kg(lb)]

2.02 kg (4.45 lb)

Typical power consumption [W]

21.2 W

Typical heat dissipation [BTU/hour]

72.34 BTU/hour

Maximum power consumption [W]

26.3 W

Maximum heat dissipation [BTU/hour]

89.74 BTU/hour

MTBF [year]

71.82 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

43 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

31.5 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

1

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)

-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)

Short-term operating temperature [°C(°F)]

Not supported

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

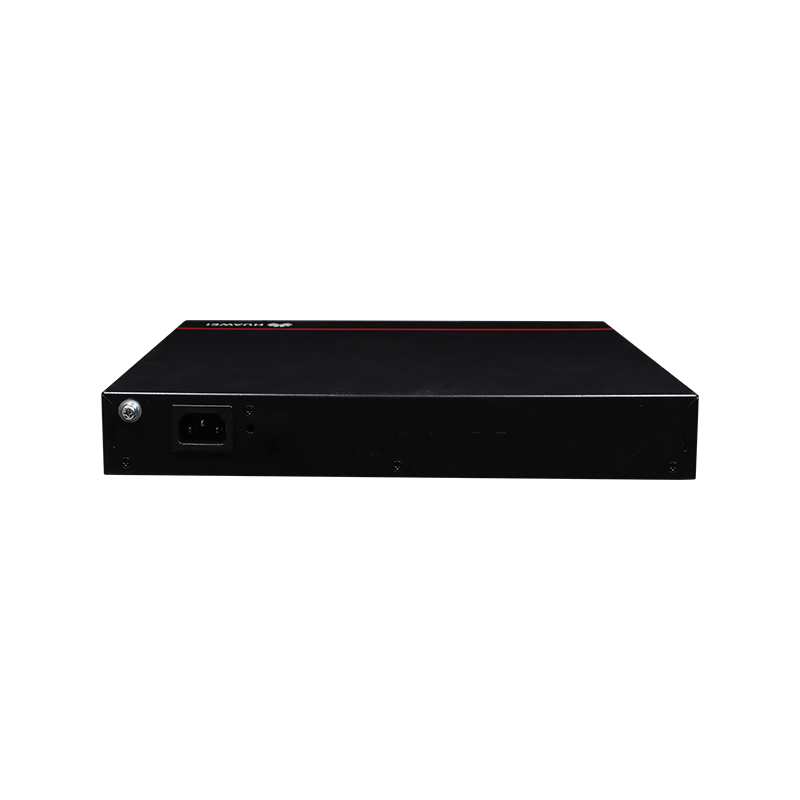

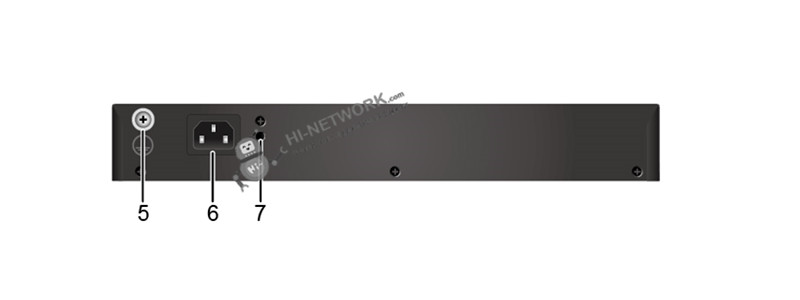

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz

Input voltage range [V]

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Maximum input current [A]

0.8 A

Memory

512 MB

Flash memory

512 MB

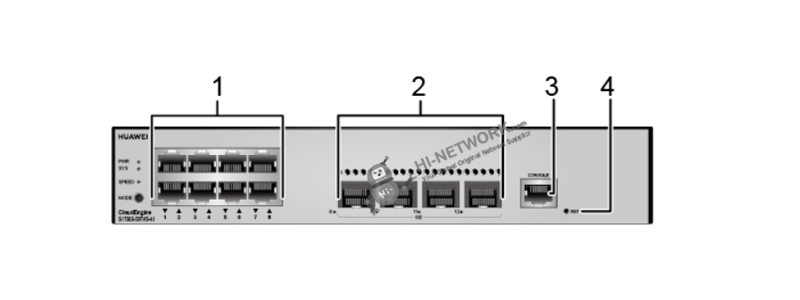

Console port

RJ45

Eth Management port

Not supported

USB

Not supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported

Certification

EMC certification

Safety certification

Manufacturing certification
