Huawei Switch S1730S-S24T4S-MA (98010973)

USD

4.8 4.8/5.0 Reviews Q/A 37 sold/Mon
Detail:	S1730S-S24T4S-MA (24 10/100 / 1000Base-T Ethernet port, 4 Gigabit SFP, AC power supply).
Model:	S1730S-S24T4S-MA (98010973)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 8.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S1730S-S24T4S-MA (98010973)

S1730S-S24T4S-MA is a Huawei S1730S series switch, providing 24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that’s easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.

Quick Specification:

Model	S1730S-S24T4S-MA
Part Number	98010973
Memory	1 GB
Flash memory	512 MB in total. To view the available flash memory size, run the display version command.
Weight with packaging [kg(lb)]	4.08 kg (8.99 lb)
Dimension (H × W × D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)

The Front Panel:

s1730s-s24t4s-ma-front-datasheet

①	Twenty-four 10/100/1000BASE-T ports
②	Four 1000BASE-X ports
③	One console port
④	One ETH management port
⑤	One USB port
⑥	One RST button

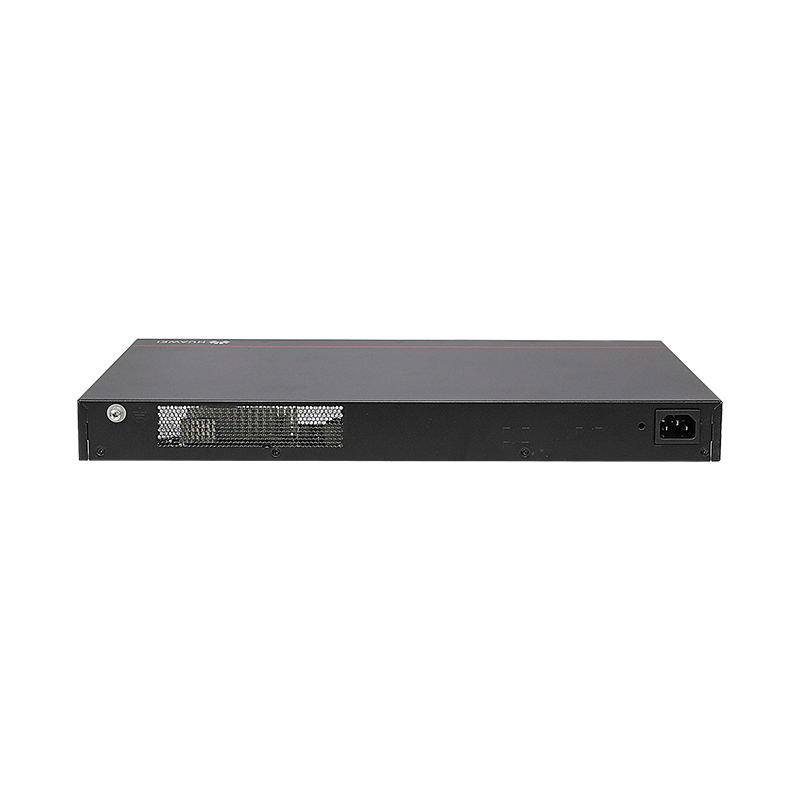

The Back Panel:

s1730s-s24t4s-ma-back-datasheet

⑦	Ground screw
⑧	Jack reserved for AC power cable locking strap
⑨	AC power socket

The Accessories for S1730S-S24T4S-MA
Modules and Cables:

Product	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC)
eSFP-GE-ZX100-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)
SFP-GE-LX-SM1310-BIDI	BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-LX-SM1490-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)
SFP-GE-LX-SM1490-BIDI	BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
CWDM-SFPGE-1471	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC)
CWDM-SFPGE-1491	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC)
CWDM-SFPGE-1511	CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC)
DWDM-SFPGE-1560-61	DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC)
SFP-1000BaseT	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m

Get More Information

Do you have any question about the S1730S-S24T4S-MA 98010973?

Specific Data Sheet:

Part Number	98010973
Model	S1730S-S24T4S-MA
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	92.82 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)
Weight (including packaging)	4.08 kg (8.99 lb)
Stack ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz High-voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput)	34 W
Typical power consumption (30% of traffic load, tested according to ATIS standard, with EEE enabled)	28 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
