| Detail: | S1700-28GFR-4P-AC(24 Gigabit Ethernet ports ,4 Gig SFP,AC 110/220V) |
| Model: | S1700-28GFR-4P-AC (98010458) |
| Condition: | Factory Sealed New |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
7.0
|
2-7 Days
US$
|
| Payment: |
More
|
The Huawei S1700-28GFR-4P-AC is web/SNMP-based switch with 28 ports including 4 Gig SFP. SNMP-based S1700 models allow the use of a SNMP-based NMS for centralized configuration and management. It is green, energy-saving and belongs to the Ethernet access switch. SNMP-managed switch supports MSTP examples up to eight, making the networks smooth. With rich safety features, it can prevent attacks from hackers and virus in order to build secure, reliable, high-performance and multi-service networks for small- and medium-size enterprises.
Model | S1700-28GFR-4P-AC |
Part Number | 98010458 |
PoE | Not supported |
Memory (RAM) | 128 MB |
Flash | 16 MB |
Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
Weight (including packaging) | < 3 kg (6.62 lb) |

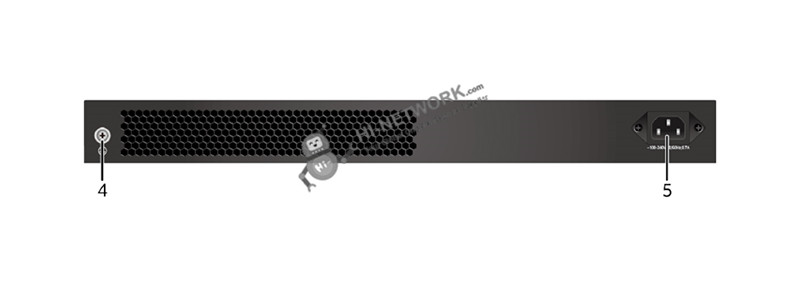

① | Twenty-four 10/100BASE-T ports |
② | Four 1000BASE-X ports |
③ | Reset button |
④ | Ground screw |
⑤ | AC power socket |
Port | Optical Module | Description |
1000BASE-X Ethernet port | eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) | |
S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) | |
S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Model | S1728GWR-4P | S1700-28FR-2T2P-AC | S1700-28GFR-4P-AC |
Type | Web-managed Switch | Web/SNMP-based Switch | Web/SNMP-based Switch |
Downlink Ports | 24 Ethernet 10/100/1,000 ports | 24 Ethernet 10/100 ports | 24 Ethernet 10/100/1,000 ports |
Uplink Ports | 4 Gig SFP | 2 Ethernet 10/100/1000 ports and 2 Gig SFP | 4 Gig SFP |
MAC Address Table | 8K MAC | 8K MAC | 8K MAC |
Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm | 442 mm x 220 mm x 43.6 mm | 442 mm x 220 mm x 43.6 mm |
Power consumption | < 15W | <25W | <30W |
Do you have any question about the S1700-28GFR-4P-AC 98010458?
Contact us now viainfo@hi-network.
Part Number | 98010458 |
Model | S17300-28GFR-4P-AC |
Memory (RAM) | 128 MB |
Flash | 16 MB |
Mean time between failures (MTBF) | 24.65 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
Weight (including packaging) | < 3 kg (6.62 lb) |
Stack ports | Not supported |
RTC | Not supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput) | 30 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -20°C to +70°C (-4°F to +158°F) |
Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
Relative humidity | 10% to 90%, noncondensing |
Operating altitude | 0-2000 m (0-6562 ft.) |
Certification | EMC certification Safety certification Manufacturing certification |
