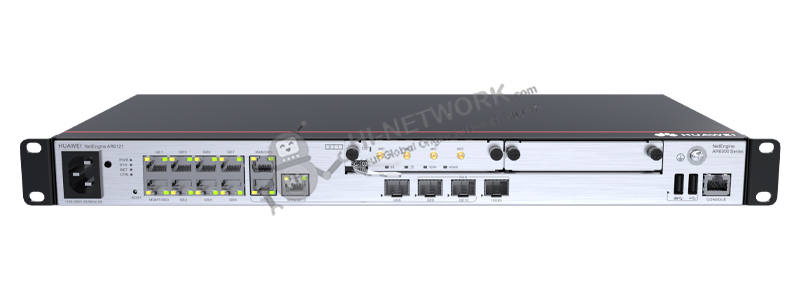

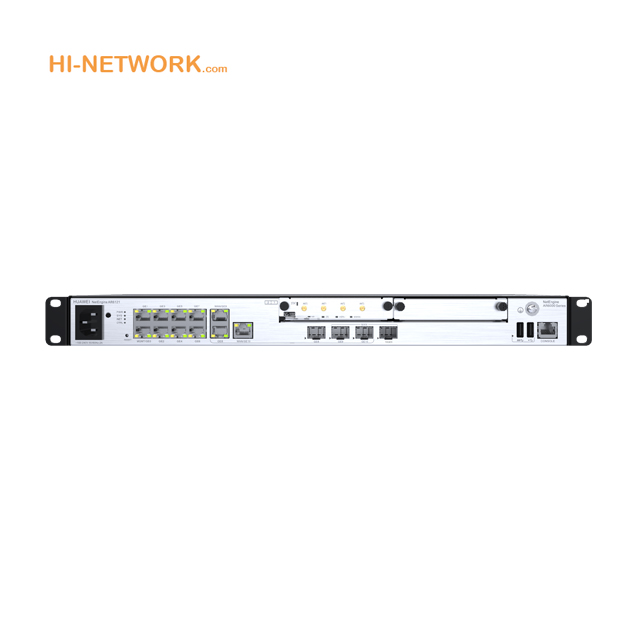

Model

AR6121

Part Number

02353BVK

Description

AR6121, 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SIC

Installation type

Rack, Work bench, Against the wall

Chassis height [U]

1

Dimensions without packaging (H x W x D) [mm(in.)]

- Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.)

- Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)

Weight with packaging [kg(lb)]

4.6 (10.12)

Weight without packaging [kg(lb)]

3.2 (7.04)

CPU

1.4 GHz, 4 Cores

Memory

2 GB

NAND Flash

1 GB

Console port

RJ45

RTC

Supported

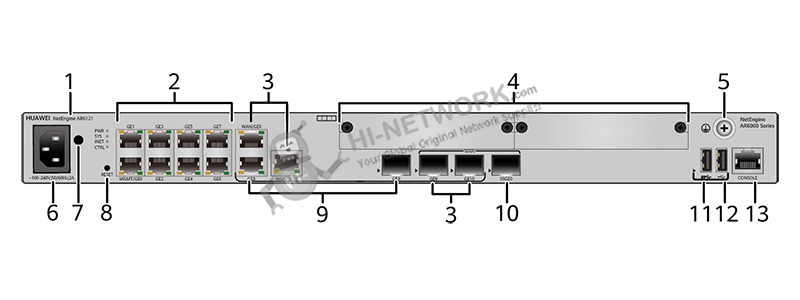

LAN ports

8 x GE electrical, 1 x GE combo

WAN ports

1 x 10GE SFP+, 2 x GE combo

Number of service board slots

2

MIC slots (default/maximum)

0/0

SIC slots (default/maximum)

2/2

WSIC slots (default/maximum)

0/1

XSIC slots (default/maximum)

0/0

Redundant MPUs

Not supported

RPS input

Not supported

PoE

Not supported

IP rating

IP20

MTBF [years]

30.50

MTTR [hours]

2

Availability

0.9999925166

Typical power consumption [W]

27

Maximum power consumption [W]

31

Power supply mode

AC built-in

Number of power modules

1

Rated input voltage [V]

100 V to 240 V, 50 Hz/60 Hz

Input voltage range [V]

90 V to 264 V, 47 Hz to 63 Hz

Maximum input current [A]

2

Maximum output power [W]

60

Redundant power supply

Not supported

Types of fans

Built-in

Number of fan modules

1

Heat dissipation mode

Air cooling

Airflow

Left-to-right airflow

Noise at normal temperature (acoustic power) [dB(A)]

49.6

Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

< 5000 m (16404.2 ft.)

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Overtemperature alarm

Supported
