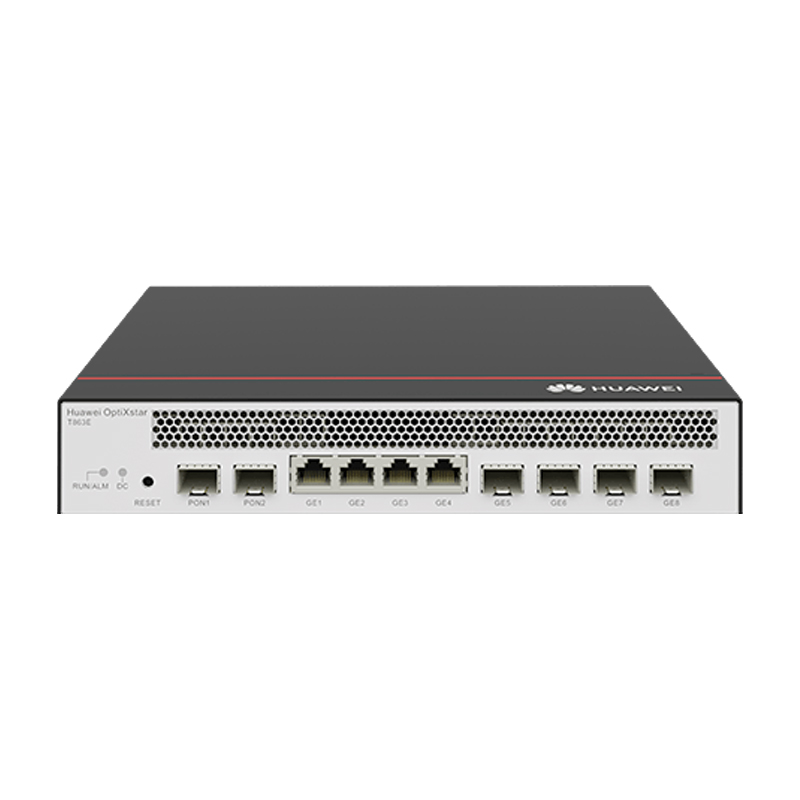

Huawei OptiXstar T863E-DE XGS-PON ONU 4 GE 2 RS485 1 LED

USD

5 5/5.0 Reviews Q/A 5 Sold/Mon
Detail:	Huawei OptiXstar T863E-DE XGS-PON ONU, 4 x GE (Electrical) + 4 x GE/FE (Optical) + 2 x RS485 + 1 x LED
Model:	OptiXstar T863E-DE
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2.3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The OptiXstar T863E-DE is an industrial intrinsically safe type ORE in Huawei's industrial optical network solution. The network side provides two XGS-PON upstream ports, and the user side provides eight GE Ethernet ports. With high-performance forwarding capabilities, the device provides ideal industrial production network solutions for various industrial scenarios, such as oil, gas, mining, and manufacturing.

Product Highlights

● Industrial-grade design, high reliability, and high protection level

− Dual XGS-PON upstream transmission

− Type B/Type C service protection

− Surge protection capability of 6 kV in common mode for the Ethernet port

− Dual DC power inputs

● Easy deployment and O&M

− Intrinsically safe box installation with mounting ears

− Centralized management on eSigh

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar T863E-DE
Dimensions (H x W x D)	43.6mm x 210mm x 250mm
Weight	About 2.3 kg
Operating Temperature	-40°C to +70°C
Operating Humidity	5% RH to 95% RH (non-condensing)
System Power Supply	DC 9V to 36V, dual power inputs
Static Power Consumption	10 W
Typical Power Consumption	11 W
Maximum Power Consumption	14 W
NNI	2*XGS-PON SFP
UNI	4GE(Electrical) + 4GE(Optical) + 2RS485 + 1LED

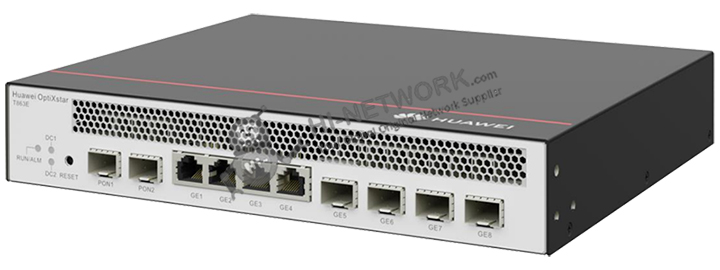

Figure 1 shows the appearance of OptiXstar T863E-DE.

overview-optixstar-t863e-de-datasheet

Product Details

Interface Parameters

XGS-PON Port	● Port type: SC/UPC ● XGS-PON − SFP, complying with ITU-T G.9807.1, Class N1/N2 − Transmission rate: RX: 9.953 Gbit/s, TX: 9.953 Gbit/s − Optical receiver sensitivity: –28 dBm − Overload optical power: –8 dBm
GE Optical Port	● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● Supported optical module type: Low-speed optical module eSFP (GE, single-mode module, 1310 nm, 10 km, LC) Single-fiber bidirectional SFP module (GE, single-mode module, 1310 nm (TX)/1490 nm (RX), 10 km, LC) Single-fiber bidirectional SFP module (GE, single-mode module, 1490 nm (TX)/1310 nm (RX), 10 km, LC)
RS485 Port	● Port type: 2-pin Phoenix terminal ● Complying with TIA/EIA-485, ITU-T V.24, ITU-T V.28
LED Port	● Connecting to external light panel
GE Electrical Port	● Port type: RJ-45 ● Complying with IEEE 802.3a ● Auto ports speed (10/100/1000 Mbit/s)
PWR Port - DC	● Port type: 2-pin Phoenix terminal

Product Function

Automatic Service Provisioning	● Authentication exemption ● XML/OMCI
Layer 3 Features	● Default/Static/Policy/Service Route ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6
Security	● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Web session number restriction ● Device access control ● 802.1x authentication modes: EAP-MD5, TLS, TTLS, and PEAP ● Static MAC address binding ● IPv6/IPv4 firewall
Network Protection	● Type B Protection ● Type C Protection ● Ring network detection ● Load sharing
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR
Layer 2 Management	● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED
Smart O&M	● XML/Web UI ● Centralized management on eSight ● Rogue ONT detection and self-regulation ● PPPoE/DHCP simulation testing ● Serial port data collection and transmission ● Transparent transmission of serial port data ● High temperature alarm and shutdown
Multicast	● IGMP v2/v3 snooping ● Dynamic controllable multicast ● IGMP Proxy ● MLDv1/MLDv2 snooping
Electricity Industry Standards	● DL 645 ● DL 698.41 ● IEC 60870-5-101 ● IEC 60870-5-102
Industrial Ethernet Protocol	● Ethernet/IP ● PROFINET ● MODBUS-RTPS ● EPA

Get More Information

Do you have any question about the OptiXstar T863E-DE?

Specific Data Sheet:

OptiXstar T863E-DE Specification
Dimensions (H x W x D)	43.6mm x 210mm x 250mm
Weight	About 2.3 kg
Operating Temperature	-40°C to +70°C
Operating Humidity	5% RH to 95% RH (non-condensing)
System Power Supply	DC 9V to 36V, dual power inputs
Surge Protection Specifications	Ethernet port: common mode 2 kV; differential mode 0.5 kV
Rated Voltage and Current	DC 9V to 36V, 2A
Static Power Consumption	10 W
Typical Power Consumption	11 W
Maximum Power Consumption	14 W
EMC	Class A
NNI	2*XGS-PON SFP
UNI	4GE(Electrical) + 4GE(Optical) + 2RS485 + 1LED
Heat Dissipation Mode	No fans, natural heat dissipation
Protection Level	Intrinsically safe type, IP20
XGS-PON Port	● Port type: SC/UPC ● XGS-PON − SFP, complying with ITU-T G.9807.1, Class N1/N2 − Transmission rate: RX: 9.953 Gbit/s, TX: 9.953 Gbit/s − Optical receiver sensitivity: –28 dBm − Overload optical power: –8 dBm
GE Optical Port	● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● Supported optical module type: Low-speed optical module eSFP (GE, single-mode module, 1310 nm, 10 km, LC) Single-fiber bidirectional SFP module (GE, single-mode module, 1310 nm (TX)/1490 nm (RX), 10 km, LC) Single-fiber bidirectional SFP module (GE, single-mode module, 1490 nm (TX)/1310 nm (RX), 10 km, LC)
RS485 Port	● Port type: 2-pin Phoenix terminal ● Complying with TIA/EIA-485, ITU-T V.24, ITU-T V.28
LED Port	● Connecting to external light panel
GE Electrical Port	● Port type: RJ-45 ● Complying with IEEE 802.3a ● Auto ports speed (10/100/1000 Mbit/s)
