Huawei OptiXstar F1001 ONU 4 GE 8 GPON PoF 16 GPON

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei OptiXstar F1001-AC ONU, 4 x GE (WAN/LAN multiplexing) + 1 x XG-PON, 4 x GE (WAN/LAN1 multiplexing) + 8 x GPON (XC/UPC, PoF) + 16 x GPON (SC/UPC)
Model:	OptiXstar F1001
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

Huawei OptiXstar F1001-AC is an enterprise primary gateway. It supports Ethernet GE or XG-PON upstream transmission and implements all-optical gigabit access for enterprises. It provides downlink PoF ports (through advanced fiber with power (AFwP)) and works with Wi-Fi ONUs to implement Wi-Fi wireless access. In addition, it provides downlink PON ports and works with ONUs to implement wired or wireless access of terminals. F1001-AC is suitable for small enterprises, supermarkets, kindergartens, and community hospitals.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar F1001-AC
Dimensions (W x D x H)	442 mm x 245 mm x 43.6 mm
Operating ambient temperature	-10 °C - +40 °C
Operating environment humidity	5 % RH to 95 % RH, non-condensing
AC power supply	100 ~ 240 V AC, 50/60 Hz
NNI	● 4 x GE (WAN/LAN multiplexing) ● 1 x XG-PON
UNI	4 x GE (WAN/LAN1 multiplexing) + 8 x GPON (XC/UPC, PoF) + 16 x GPON (SC/UPC)
Maximum input current	2 A
Static power consumption	9 W
Maximum power consumption	14 W NOTE: The maximum output power of the PoF cable is 135 W.

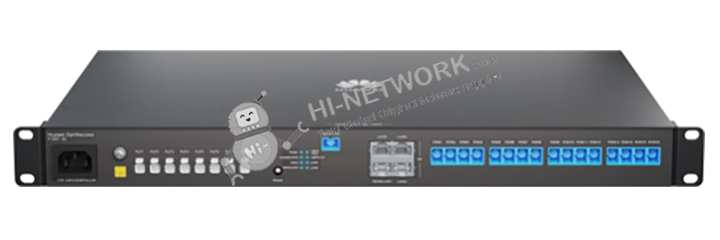

Figure 1 shows the appearance of OptiXstar F1001.

front-optixstar-f1001-ac-datasheet

Highlights

Simplified Deployment

The built-in advanced fiber with power (AFwP) power adapter supplies power to the downstream ONU through the PoF port. The remote ONU is not required to obtain power locally. The F600C-30-1GH and F600P-30-1GH support plug-and-play and automatic networking.

Ultimate Experience

● 128K NAT session forwarding capability, maximum of 300 devices connected.

● Supports Wi-Fi roaming, the roaming handover delay is 50 ms.

● Supports 6 Gbit/s VXLAN, provides high-speed storage and access channels.

● The security-based 200 Mbit/s IPSec VPN access is implemented. The hardware encryption engine ensures tunnel performance and data security.

Product Details

Interface Parameters

Interface Classification	Interface Name	Interface Parameter
Network-side port	GE port	● Interface type: RJ-45 ● Supports auto-sensing of the 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s interface rate ● Compliant with IEEE802.3
Network-side port	XG-PON port	● Interface type: SC/UPC ● Class N1/N2a ● Receiver sensitivity: -28 dBm ● Overload optical power: –8 dBm ● Transmission rate: 2.488 Gbit/s in the uplink and 9.953 Gbit/s in the downlink
User-side port	XC/UPC port	● PoF port, connected to the optical/electrical composite cable ● Transmission rate: downlink 2.488 Gbit/s; uplink 1.244 Gbit/s
User-side port	SC/UPC port	Transmission rate: downlink 2.488 Gbit/s; uplink 1.244 Gbit/s
LAN port	GE port	● Interface type: RJ-45 ● Supports auto-sensing of the 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s interface rate ● Compliant with IEEE802.3

Product Function

Intelligent O&M	● OMCI/Web UI/TR069 management ● Call emulation and internal/external line test ● PPPoE/DHCP emulation test
Layer 3 features	● PPPoE Client/Static IP/DHCP Server/DHCP Client ● IPv6/DHCPv6 Server/DHCPv6 Client ● DDNS/DNS ● Static route ● NAT/NAPT/static one-to-one address translation ● DMZ/Port Mapping/Port Tigger ● ALG/UPnP/ARP
Networking protection	● Type B single-homing protection ● Type B dual-homing protection
Wi-Fi management	● Automatic Wi-Fi Channel Selection Under OLT Management of the Same Gateway ● Wi-Fi roaming is supported. The Wi-Fi roaming handover delay within the master ONU is 100 ms (802.11k/802.11v) **
VPN	● L2TP VPN ● VXLAN tunnel ● IPSec encryption
QoS	● Ethernet port rate limit ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limit
Layer 2 management	● VLAN Management ● MAC Bridge Management ● Loop detection ● Supports LLDP-MED. ● DHCP Option82 ● PITP ● BPDU transparent transmission
Multicast	● IGMP v2/v3 snooping ● IGMP proxy ● MLDv1/MLDv2 snooping ● Multicast emulation ● GPON interworking multicast
Security	● SPI Firewall ● IPv4/IPv6 firewall ● Anti-DoS attack ● MAC address/IP address/URL address filtering ● Static MAC address binding ● Local Portal authentication ● Authentication-free trustlist
	: The user terminal must support 802.11k/802.11v. *: The F1001-AC does not support Wi-Fi, but the Wi-Fi can be configured for the downstream ONU. That is, the Wi-Fi parameters are configured on the F1001-AC. The Wi-Fi configuration automatically overwrites the downstream ONU.

Get More Information

Do you have any question about the OptiXstar F1001?

Specific Data Sheet:

OptiXstar F1001 Specification
Dimensions (W x D x H)	442 mm x 245 mm x 43.6 mm
Weight	Approx. 3.0 kg
Operating ambient temperature	-10 °C - +40 °C
Operating environment humidity	5 % RH to 95 % RH, non-condensing
AC power supply	100 ~ 240 V AC, 50/60 Hz
NNI	● 4 x GE (WAN/LAN multiplexing) ● 1 x XG-PON
UNI	4 x GE (WAN/LAN1 multiplexing) + 8 x GPON (XC/UPC, PoF) + 16 x GPON (SC/UPC)
Maximum input current	2 A
Static power consumption	9 W
Maximum power consumption	14 W NOTE: The maximum output power of the PoF cable is 135 W.
Degree of protection	IP20
GE port	● Interface type: RJ-45 ● Supports auto-sensing of the 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s interface rate ● Compliant with IEEE802.3
XG-PON port	● Interface type: SC/UPC ● Class N1/N2a ● Receiver sensitivity: -28 dBm ● Overload optical power: –8 dBm ● Transmission rate: 2.488 Gbit/s in the uplink and 9.953 Gbit/s in the downlink
XC/UPC port	● PoF port, connected to the optical/electrical composite cable ● Transmission rate: downlink 2.488 Gbit/s; uplink 1.244 Gbit/s
SC/UPC port	Transmission rate: downlink 2.488 Gbit/s; uplink 1.244 Gbit/s
