Huawei OptiXaccess EA5801S-GP16 (AC / DC Supply)

USD

4.8 4.8/5.0 Reviews Q/A 1 Sold/Mon
Detail:	The OptiXaccess EA5801S-GP16-H2 is a compact outdoor blade OLT. It provides 16 GPON ports to support FTTH coverage in remote areas, transition from cable networks to FTTH, FTTO, FTTM networks and outdoor distribution for video.
Model:	OptiXaccess EA5801S-GP16
Condition:
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to:	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The OptiXaccess EA5801S-GP16-H2 is a compact outdoor blade OLT. It provides 16 GPON ports to support FTTH coverage in remote areas, transition from cable networks to FTTH, FTTO, FTTM networks and outdoor distribution for video.

Quick Specification

Model	Huawei OptiXaccess EA5801S-GP16-H2
Dimensions (H x W x D)	400 x 120 x 300 mm
Access ONT	1024
IPv4 Routing Table	8196
IPv6 Routing Table	4096
ARP Table	16384
Power consumption	DC: 85W AC: 88W

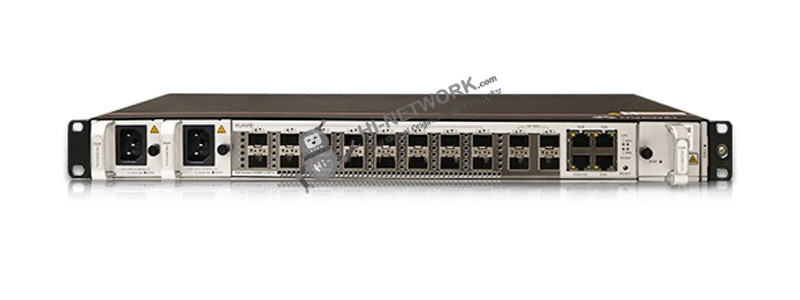

Appearance:

ea5801s-gp16

Features Huawei OptiXaccess EA5801S-GP16 provides:

• Adaptable to Diverse Scenarios
Requires only 1U installation space for small-scale AP convergence, meeting service-bearing requirements for an enterprise or campus with just a single OLT.
• Flexible Installation
Rapid Deployment and Installation Suitable for installation in both indoor and outdoor cabinets, the OLT can withstand high temperatures, saving both manpower and cabinet space.

The Accessories For OptiXaccess EA5801E-GP16:

One-channel Two-fiber Bidirectional GE Optical Module:

Type	One-channel two-fiber bidirectional optical module
No.	1	2
Operating Wavelength	1310 nm	1310 nm
Encapsulation Type	eSFP	eSFP
Port Rate	1.25 Gbit/s	1.25 Gbit/s
Minimum Output Optical Power	-9 dBm	-5 dBm
Maximum Output Optical Power	-3 dBm	0 dBm
Maximum Receiver Sensitivity	-20 dBm	-23 dBm
Optical Connector Type	LC	LC
Optical Fiber Type	Single-mode	Single-mode
Reach	10 km	40 km
Overload Optical Power	-3 dBm	-3 dBm
Extinction Ratio	9 dB	9 dB

One-channel One-fiber Bidirectional GE Optical Module:

Type	One-channel one-fiber bidirectional optical module
No.	1	2	3	4
Operating Wavelength	Tx: 1310 nm Rx: 1490 nm	Tx: 1490 nm Rx: 1310 nm	Tx: 1310 nm Rx: 1490 nm	Tx: 1490 nm Rx: 1310 nm
Encapsulation Type	eSFP	eSFP	eSFP	eSFP
Port Rate	1.25 Gbit/s	1.25 Gbit/s	1.25 Gbit/s	1.25 Gbit/s
Minimum Output Optical Power	-9 dBm	-9 dBm	-2 dBm	-2 dBm
Maximum Output Optical Power	-3 dBm	-3 dBm	3 dBm	3 dBm
Maximum Receiver Sensitivity	-19.5 dBm	-19.5 dBm	-23 dBm	-23 dBm
Optical Connector Type	LC	LC	LC	LC
Optical Fiber Type	Single-mode	Single-mode	Single-mode	Single-mode
Reach	10 km	10 km	40 km	40 km
Overload Optical Power	-3 dBm	-3 dBm	-3 dBm	-3 dBm
Extinction Ratio	6 dB	6 dB	9 dB	9 dB

One-channel Two-fiber Bidirectional 10GE Optical Module:

Type	One-channel two-fiber bidirectional optical module
No.	1	2	3
Operating Wavelength	850 nm	1310 nm	1550 nm
Encapsulation Type	SFP+	SFP+	SFP+
Port Rate	10 Gbit/s	10 Gbit/s	9.95-11.1 Gbit/s
Minimum Output Optical Power	-7.3 dBm	-8.2 dBm	-4.7 dBm
Maximum Output Optical Power	-1 dBm	0.5 dBm	4 dBm
Maximum Receiver Sensitivity	-9.9 dBm	-12.6 dBm	-14.1 dBm
Optical Connector Type	LC	LC	LC
Optical Fiber Type	Multi-mode	Single-mode	Single-mode
Reach	0.3 km	10 km	40 km
Overload Optical Power	-1 dBm	0.5 dBm	0.5 dBm
Extinction Ratio	3 dB	3.5 dB	3 dB

One-channel One-fiber Bidirectional 10GE Optical Module:

Type	One-channel one-fiber bidirectional optical module
No.	1	2	3	4
Operating Wavelength	Tx:1270nm Rx:1330nm	Tx:1330nm Rx:1270nm	Tx:1330nm Rx:1270nm	Tx:1270nm Rx:1330nm
Encapsulation Type	SFP+	SFP+	SFP+	SFP+
Port Rate	2.5Gbit/s–11.3Gbit/s	2.5Gbit/s–11.3Gbit/s	9.95Gbit/s–10.3Gbit/s	9.95Gbit/s–10.3Gbit/s
Minimum Output Optical Power	-8.2dBm	-8.2dBm	0dBm	0dBm
Maximum Output Optical Power	0.5dBm	0.5dBm	5dBm	5dBm
Maximum Receiver Sensitivity	-14.4dBm	-14.4dBm	-18dBm	-18dBm
Optical Connector Type	LC	LC	LC	LC
Optical Fiber Type	Single-mode	Single-mode	Single-mode	Single-mode
Reach	10km	10km	40km	40km
Overload Optical Power	0.5dBm	0.5dBm	-9dBm	-9dBm
Extinction Ratio	3.5dB	3.5dB	3.5dB	3.5dB

GPON Optical Module:

Type	One-fiber bidirectional optical module, class B+	One-fiber bidirectional optical module, class C+	One-fiber bidirectional optical module, class C++
No.	1	2	3
Operating Wavelength	Tx: 1490 nm Rx: 1310 nm	Tx: 1490 nm Rx: 1310 nm	Tx: 1490 nm Rx: 1310 nm
Encapsulation Type	SFP	SFP	SFP
Port Rate	Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s	Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s	Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
Minimum Output Optical Power	1.5 dBm	3 dBm	6 dBm
Maximum Output Optical Power	5 dBm	7 dBm	10 dBm
Maximum Receiver Sensitivity	-28 dBm	-32 dBm	-35 dBm
Optical Connector Type	SC	SC	SC
Optical Fiber Type	Single-mode	Single-mode	Single-mode
Overload Optical Power	-8 dBm	-12 dBm	-15 dBm
Extinction Ratio	8.2 dB	8.2 dB	8.2 dB

Get more information

Do you have any question about the OptiXaccess EA5801S-GP16?

Specific Data Sheet:

Model	Huawei OptiXaccess EA5801S-GP16-H2
Dimensions (H x W x D)	Excluding mounting ears: 43.6 x 442 x 220 mm
	Including IEC mounting ears: 43.6 x 482.6 x 220 mm
	Including ETSI mounting ears: 43.6 x 535 x 220 mm
Maximum Fully-Loaded Weight (DC)	4.2 kg
Maximum Fully-Loaded Weight (AC)	4.6 kg
Power Supply Mode	DC power supply (dual backup)
Power Supply Mode	AC power supply (dual backup)
Service Ports	16 GPON
Working Voltage Range	DC power supply: –38.4 V to –72 V
Working Voltage Range	AC power supply: 100–240 V
Rated Voltage	DC power supply: –48/–60 V
Rated Voltage	AC power supply
Maximum Input Current	DC power supply: 6 A
Maximum Input Current	AC power supply: 2.5 A
Ambient Humidity	5–95% RH
Atmospheric Pressure	70–106 kPa
Altitude	< 4000 m. The air density varies with the altitude and will affect the heat dissipation of the device. Therefore, the working environment temperature of the device varies with the altitude.
System Switching Capacity	140 Gbit/s
MAC Addresses	32,768
Access ONT	1024
IPv4 Routing Table	8192
IPv6 Routing Table	4096
ARP Table	16,384
Bit Error Rate (BER) in Full Load	A BER smaller than 10 e-7 for a port that transmits data in full load.
10 GE/GE Upstream Ports	4
Ambient Temperature	–40°C to +65°C
	The device can start up at temperatures as low as –25°C.
	Note: 65°C refers to the highest temperature measured at the air intake vent of a service subrack.
Power Consumption	Static power consumption: 55 W
	Typical power consumption: 95 W
	Maximum power consumption: 140 W
	Note: The power consumption of a product is tested in the following conditions
	• Static power consumption: 25°C, no optical module in optical ports, and no service.
	• Typical power consumption: 25°C, 4 x 10 GE upstream ports, 16 x GPON ports on the user side, full services, and maximum traffic.
	• Maximum power consumption: 65°C, 4 x 10 GE upstream ports, 16 x GPON ports on the user side, full services, and maximum traffic.
