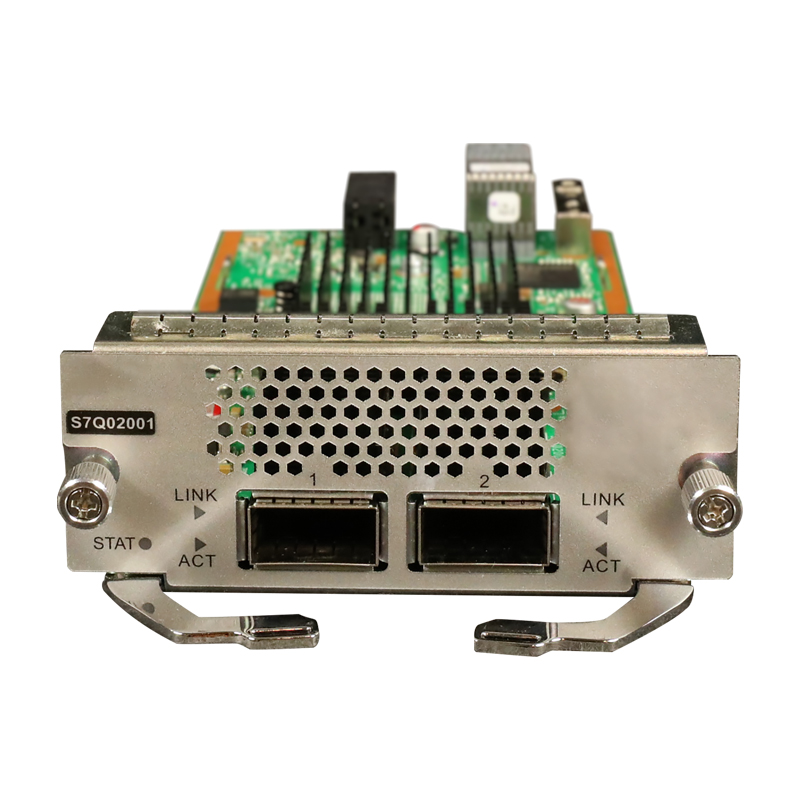

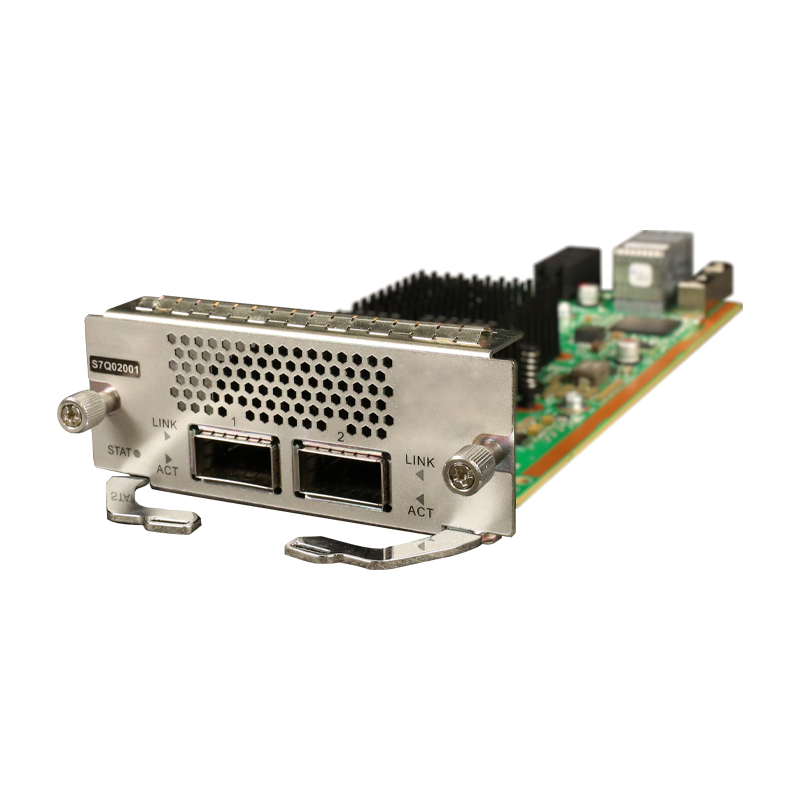

Huawei Interface Card S7Q02001 (02313UBW 02313UBW-002)

661
5
5/5.0
Q/A
21 Sold/Mon
Detail: 2-port 40GE QSFP+ interface card
Model: S7Q02001 (02313UBW 02313UBW-002)
Condition: Factory Sealed New
Related: Huawei CloudEngine Switch S5731-H24T4XC (02352QPP/-001/005) Huawei CloudEngine Switch S5731-H24P4XC (02352QPV/-001/-003)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
7.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Interface Card S7Q02001 (02313UBW, 02313UBW-002)



S7Q02001 2-Port 40GE QSFP+ Interface Card (02313UBW, 02313UBW-002) Flexible Card


Quick Specification


Table 1 shows the Quick Specification.

Model

S7Q02001

Part Number

02313UBW, 02313UBW-002

Description

2-port 40GE QSFP+ interface card

Dimensions without packaging (H x W x D)

40 mm x 100 mm x 208 mm (1.6 in. x 3.9 in. x 8.2 in.)

Weight with packaging

0.6 kg (1.32 lb)

Typical power consumption [W]

24

Maximum power consumption [W]

27

Typical heat dissipation [BTU/h]

81.89

Maximum heat dissipation [BTU/h]

92.13

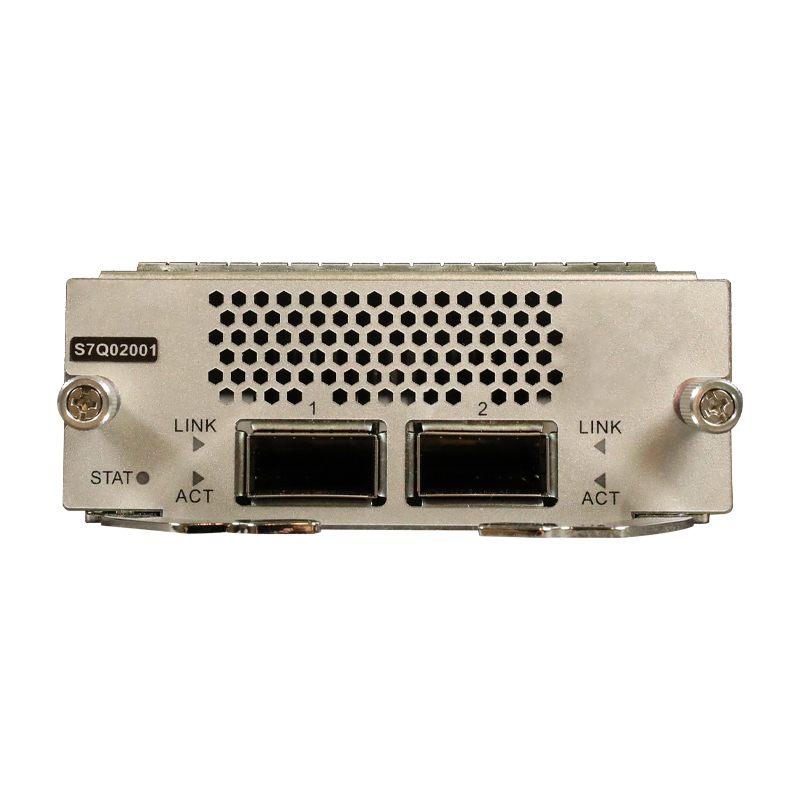

Figure 1 shows the appearance of S7Q02001.

appearance-s7q02001-datasheet


Product Details


Table 2 shows the Mappings between S7Q02001 and product models.

Product

Product Model

First Supported Version

Limitations

S5731-H

S5731-H24HB4XZ (02354QXD)

V200R021C10SPC500

-

S5731-H

S5731-H24HB4XZ (02354QXD-001)

V200R021C10SPC600

-

S5731-H

S5731-H24P4XC (02352QPV)

V200R021C01

-

S5731-H

S5731-H24P4XC (02352QPV-001)

V200R021C01

-

S5731-H

S5731-H24P4XC (02352QPV-003)

V200R021C10SPC600

-

S5731-H

S5731-H24T4XC (02352QPP)

V200R021C01

-

S5731-H

S5731-H24T4XC (02352QPP-001)

V200R021C01

-

S5731-H

S5731-H24T4XC (02352QPP-005)

V200R021C10SPC600

-

S5731-H

S5731-H48HB4XZ (02354QXB)

V200R021C10SPC500

-

S5731-H

S5731-H48HB4XZ (02354QXB-001)

V200R021C10SPC600

-

S5731-H

S5731-H48P4XC (02352SVD)

V200R021C01

-

S5731-H

S5731-H48P4XC (02352SVD-001)

V200R021C01

-

S5731-H

S5731-H48P4XC (02352SVD-003)

V200R021C10SPC600

-

S5731-H

S5731-H48T4XC (02352QPT)

V200R021C01

-

S5731-H

S5731-H48T4XC (02352QPT-003)

V200R021C01

-

S5731-H

S5731-H48T4XC (02352QPT-007)

V200R021C10SPC600

-

S5731S-H

S5731S-H24HB4XZ-A (02354QXE)

V200R021C10SPC500

-

S5731S-H

S5731S-H24HB4XZ-A (02354QXE-001)

V200R021C10SPC600

-

S5731S-H

S5731S-H24T4XC-A (02352YRG)

V200R021C01

-

S5731S-H

S5731S-H24T4XC-A (02352YRG-001)

V200R021C01

-

S5731S-H

S5731S-H24T4XC-A (02352YRG-003)

V200R021C10SPC600

-

S5731S-H

S5731S-H48HB4XZ-A (02354QXC)

V200R021C10SPC500

-

S5731S-H

S5731S-H48HB4XZ-A (02354QXC-001)

V200R021C10SPC600

-

S5731S-H

S5731S-H48T4XC-A (02352YRF)

V200R021C01

-

S5731S-H

S5731S-H48T4XC-A (02352YRF-003)

V200R021C01

-

S5731S-H

S5731S-H48T4XC-A (02352YRF-005)

V200R021C10SPC600

-

S5732-H

S5732-H24UM2CC (02353HUC)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353HUC-003)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-001)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-004)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-010)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-011)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-014)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-020)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-021)

V200R022C00

-

S5732-H

S5732-H24UM2CC (02353SJY-024)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353HUB)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353HUB-002)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-001)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-003)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-004)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-010)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-011)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-013)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-014)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-020)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-021)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-023)

V200R022C00

-

S5732-H

S5732-H48UM2CC (02353SJT-024)

V200R022C00

-

S5732-H

S5732-H48XUM2CC (02353MLH)

V200R022C00

-

S5732-H

S5732-H48XUM2CC (02353MLH-001)

V200R022C00

-

S5735S-H

S5735S-H24S4XC-A (98011041)

V200R021C01

-

S5736-S

S5736-S24S4XC (98011038)

V200R021C01

-

S5736-S

S5736-S24UM4XC (98011020)

V200R021C01

-

S5736-S

S5736-S24UM4XC (98011020-001)

V200R021C01

-

S5736-S

S5736-S24UM4XC (98011020-004)

V200R021C01

-

S5736-S

S5736-S48S4XC (98011042)

V200R021C01

-


Figure 2 shows the indicators on the S7Q02001.

indicators-s7q02001-datasheet

Note:

(1)

STAT: running status indicator

(2)

LINK/ACT indicators of ports


Figure 3 shows the ports on the S7Q02001.

ports-s7q02001-datasheet


Note:

(1)

Two 40GE QSFP+ optical ports


Table 3 shows the functions and features of the S7Q02001.

Function

Description

Basic functions

Provides two 40GE QSFP+ optical ports for data access and line-rate switching. Each 40GE port can be split into four 10GE ports.

Hot swapping

Supported

Service port stacking

Ports on the card can be used as stack ports.


Get More Information

Do you have any question about the S7Q02001 (02313UBW, 02313UBW-002)?

Contact us now via [email protected].

Specific Data Sheet:


S7Q02001 Specification

Basic Information

Model

S7Q02001

Part Number

02313UBW 02313UBW-002

Description

2-port 40GE QSFP+ interface card

Level-1 category

Flexible card

Technical Specifications

Dimensions without packaging (H x W x D)

40 mm x 100 mm x 208 mm (1.6 in. x 3.9 in. x 8.2 in.)

Dimensions with packaging (H x W x D)

80 mm x 160 mm x 305 mm (3.15 in. x 6.30 in. x 12.01 in.)

Weight without packaging

0.40 kg (0.88 lb)

Weight with packaging

0.6 kg (1.32 lb)

Typical power consumption [W]

24

Maximum power consumption [W]

27

Typical heat dissipation [BTU/h]

81.89

Maximum heat dissipation [BTU/h]

92.13
