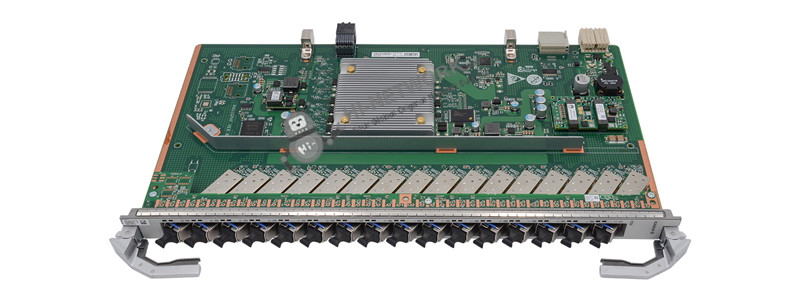

GPON Port

16-GPON Port

Forwarding Capality

40Gbit/s

Maximum distance difference between two ONUS under the same pon port

40km

T-CONTs per PON board

16368

Maximum frame size

2052 bytes

FEC

Bidirection

CAR group

Supported

HQoS

Not supported

Variable-length OMCI

Supported

ONU-based shaping or queue-based shaping

Supported

Type B protection(dual-homing)

Not supported

Type B protection(single-homing)

Supported

Type C protection(dual-homing)

Not supported

Type C protection(single-homing)

Supported

1588v2

Supported

Rogue ONT detection and isolation

Supported

Automatic shutdown at high temperature

Supported

Energy saving for service boards

Supported

D-CCAP

Not supported

GPON SFP Module Specification

Type

B+ Module : One-fiber bi-directional optical module, class B+

C+ Module : One-fiber bi-directional optical module, class C+

C++ Module: One-fiber bi-directional optical module, class C++

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Class B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s

Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

B+ Module : 1.50 dBm

C+ Module : 3.00 dBm

C++ Module: 6.00 dBm

Maximum Output Optical Power

B+ Module : 5.00 dBm

C+ Module : 7.00 dBm

C++ Module : 10.00 dBm

Maximum Receiver Sensitivity

B+ Module : -28.00 dBm

C+ Module : -32.00 dBm

C++ Module: -35.00 dBm

Optical Connector Type

SC

Optical Fiber Type

Single-mode

Overload Optical Power

B+ Module : -8.0 dBm

C+ Module : -12.0 dBm

C++ Module : -15.0 dBm

Extinction Ratio

8.2 dB

Device Specifications

Dimensions (W x D x H)

23.30 mm * 257.90 mm * 399.20 mm

Power Consumption

Static: 25W; Maximum:50W

Operating temperature

-40°C to +65°C
