Huawei Fan Module EH1M00FBX000 (02120666) for S7703 PoE/S7706 PoE

Wide Voltage 74 Fan Box

Quick Specification

Table 1 shows the quick specification.

Model	EH1M00FBX000
Part Number	02120666
Description	Wide Voltage 74 Fan Box
Attributes	Hardware
Category	Hardware
Product Line	Networking
Product Family	Switch
Product Category	S9700 Fan box
Sub Product Family	Campus Switch
Product Series	S9700
EAN	6920702738169
UOM	PCS
Pack Weight (kg)	1.611
Pack Volume (m^3)	0.0034
Pack Dimension (DWH mm)	32513080
Net Dimension (DWH mm)	35011050
Typic Power (W)	5

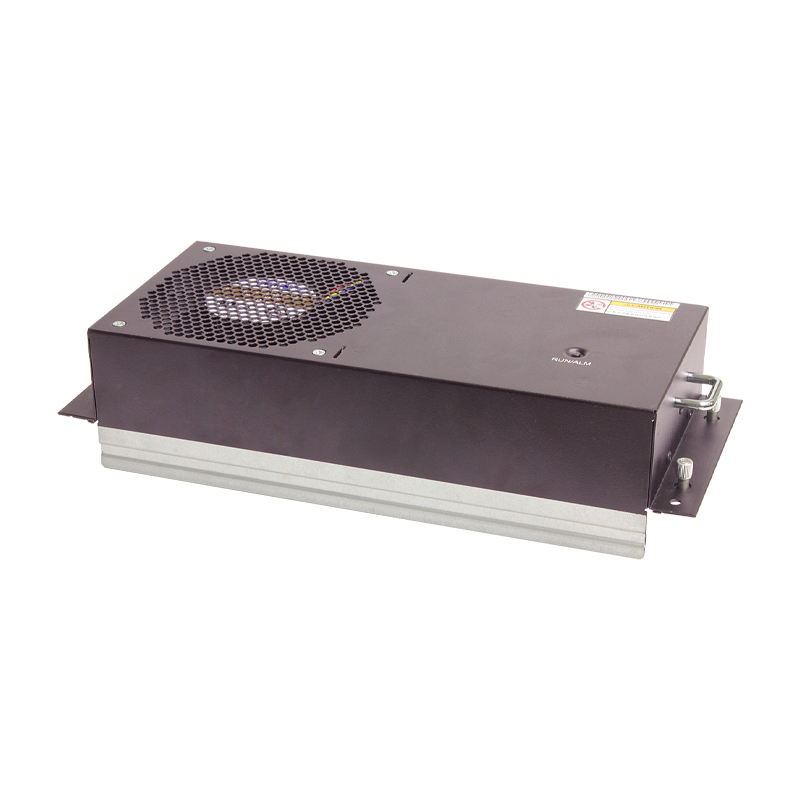

Figure 1 shows the appearance of EH1M00FBX000.

front-eh1m00fbx000-datasheet

Product Details

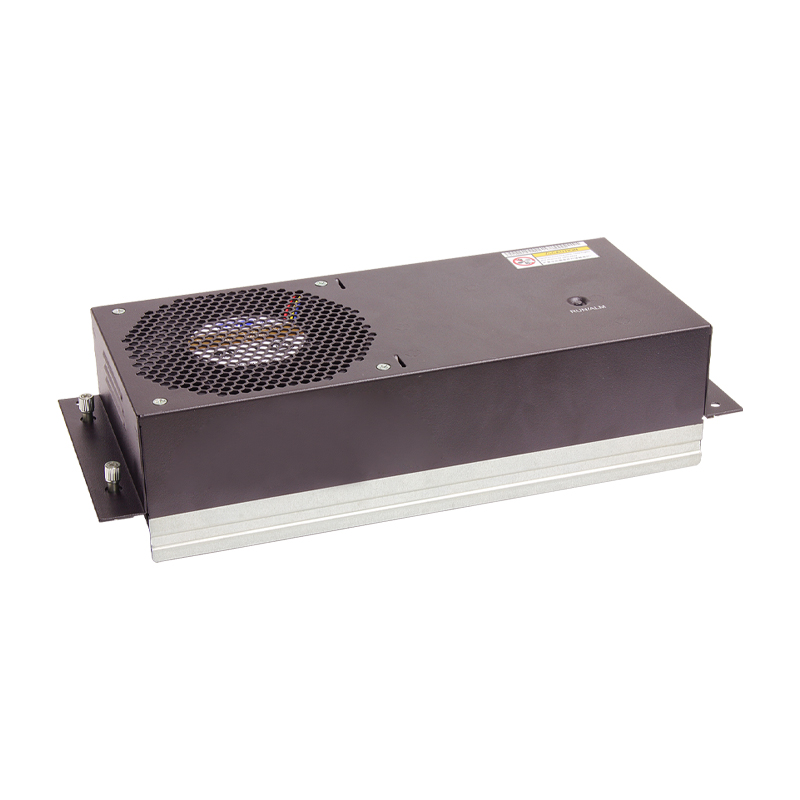

Figure 2 show the panel of EH1M00FBX000.

panel-eh1m00fbx000-datasheet

Note:

(1)	Air vent	(3)	Fan status indicator
(2)	Captive screw	(4)	Handle

Table 2 shows the Indicators on the EH1M00FBX000.

Silkscreen	Name	Color	Status	Description
RUN/ALM	Fan status indicator	Green	Slow blinking	The fan module is working properly, and the communication is normal.
		Green	Fast blinking	The fan module is working properly, but communication has not been established.
		Red	Slow blinking	An alarm was generated. You must determine whether to replace the fan module, depending on the actual situation.
		Red	Steady on	The fan module has a hardware failure and needs to be replaced.

Get more information

Do you have any question about the EH1M00FBX000 (02120666)?

Specific Data Sheet:

EH1M00FBX000 Specification
Basic Information
Model	EH1M00FBX000
Part Number	02120666
Description	Wide Voltage 74 Fan Box
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	126.6 mm x 323.9 mm x 74.8 mm (5.0 in. x 12.8 in. x 2.9 in.)
Weight without packaging [kg(lb)]	1.6 kg (3.53 lb)
Number of fans	2
Maximum power consumption [W]	116
Maximum heat dissipation [BTU/hour]	395.8
Maximum airflow [CFM]	245
Maximum noise level [dB(A)]	70
Maximum wind pressure [Pa]	692
Airflow direction	FAN panel side exhaust
