EchoLife HG8245D
  • EchoLife HG8245D

Huawei EchoLife HG8245D ONT 2 POTS 4 GE USB Wi-Fi

52
5
5/5.0
Q/A
5 Sold/Mon
Detail: Huawei EchoLife HG8245D, intelligent bridging-type ONT, 2POTS+4GE+2.4G/5G Wi-Fi+USB
Model: EchoLife HG8245D
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife HG8245D is an intelligent routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

It provides 2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB (2 POTS ports, 4 GE ports, 1 2.4G WiFi port and 1 5G WiFi port, 1 USB port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.


Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife HG8245D

Dimensions (L x W x H)

235 mm x 195 mm x 30 mm

Operating Temperature

0°C to +40°C

Operating Humidity

5% RH to 95% RH (non-condensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

System Power Supply

11–14 V DC, 2 A

Static Power Consumption

12 W

Maximum Power Consumption

21 W

NNI

GPON

UNI

2POTS+4GE+2.4G/5G Wi-Fi+1USB

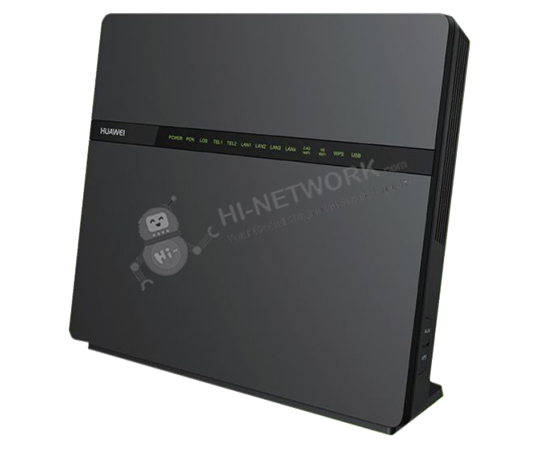

Figure 1 shows the appearance of EchoLife HG8245D.

overview-echolife-hg8245d-datasheet

Product Details


Interface Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB Port

● USB2.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n(2.4G)

● IEEE 802.11 a/n(5G)

● 3 × 3 MIMO

● Antenna gain: 2 dBi

● WMM

● Multiple SSIDs

● WPS

● 2.4G/5G concurrent


Product Function

Smart Interconnection

● Smart Wi-Fi coverage (V300R015C10)

● SIP/H.248 auto-negotiation

● Any port, any service

● Parental control (V300R015C00)

● L2/L3 forwarding: 1G uplink, 2G downlink

Smart Service

● Smart Wi-Fi sharing:

Portal/802.1x authentication (V300R015C10)

SoftGRE-based sharing (V300R015C10)

● Association of one account with two POTS ports

Smart O&M

● IPTV video quality diagnosis (V300R015C10)

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● Call emulation, and circuit test and loop-line test

Layer 3 Features

● PPPoE/DHCP simulation testing

● WLAN emulation

● PPPoE/Static IP/DHCP

● NAT/NAPT

● Port forwarding

● ALG, UPnP

● DDNS/DNS server/DNS client

● IPv6/IPv4 dual stack, and DS-Lite

● Static/Default routes

● Multiple services on one WAN port

Multicast

● IGMP v2/v3 proxy(V300R015C00)/snooping

● MLD v1/v2 snooping

● Multicast services through Wi-Fi

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

Security

● SPI firewall

● Filtering based on MAC/IP/URL addresses

Common O&M

● OMCI/Web UI/TR069

● Dual-system software backup and rollback

Power Saving

● Dynamic power saving

● Indicator power saving

● Scheduled Wi-Fi shutdown (V300R015C00)


Get More Information

Do you have any question about the EchoLife HG8245D?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife HG8245D Specification

Dimensions (L x W x H)

235 mm x 195 mm x 30 mm

Operating Temperature

0°C to +40°C

Operating Humidity

5% RH to 95% RH (non-condensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

System Power Supply

11–14 V DC, 2 A

Static Power Consumption

12 W

Maximum Power Consumption

21 W

NNI

GPON

UNI

2POTS+4GE+2.4G/5G Wi-Fi+1USB

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)

USB Port

● USB2.0

● FTP-based network storage

● File/Print sharing based on SAMBA

● DLNA DMS/UPnP AV (media server)

WLAN

● IEEE 802.11 b/g/n(2.4G)

● IEEE 802.11 a/n(5G)

● 3 × 3 MIMO

● Antenna gain: 2 dBi

● WMM

● Multiple SSIDs

● WPS

● 2.4G/5G concurrent
