Huawei EchoLife HG8012H ONT 1 GPON 1 GE 1 CATV

USD

5 5/5.0 Reviews Q/A 6 Sold/Mon
Detail:	Huawei EchoLife HG8012H ONT, 1x GPON, 1x RJ45 1000Mb/s, 1x RJ45 100Mb/s, 1x RJ11, 1x CATV
Model:	EchoLife HG8012H
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife HG8012H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.

It provides 1 GE port and 1 RF port. The high-performance forwarding capability ensures the service experience of CATV,data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife HG8012H
Dimensions (W x D x H)	134 mm x 115 mm x 30 mm
Weight	< 500 g
Operating Temperature	-40°C to +55°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11–14 V DC, 1A
Static Power Consumption	3 W
Maximum Power Consumption	6 W
NNI	1GPON
UNI	1GE + 1CATV
Indicators	POWER/PON/LOS/LAN/CATV

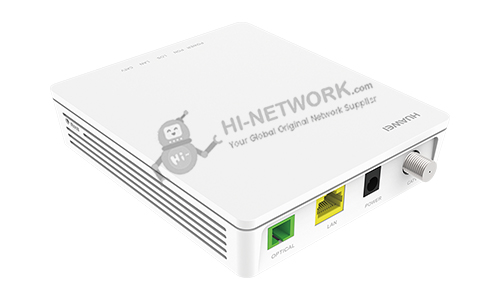

Figure 1 shows the appearance of EchoLife HG8012H.

overview-echolife-hg8012h-datasheet

Product Details

Port Parameters

GPON Ports

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Local switching/isolation based on Ethernet ports

● Transparent transmission of IPv6 packets at Layer 2

CATV Port

● Bandwidth 54-870 MHz

● Output resistance 75 ohms

Function List

Smart O&M	● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state ● COCV4
Security	● MAC address filtering
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check ● IPv6
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation

Get More Information

Do you have any question about the EchoLife HG8012H?

Specific Data Sheet:

EchoLife HG8012H Specification
Dimensions (W x D x H)	134 mm x 115 mm x 30 mm
Weight	< 500 g
Operating Temperature	-40°C to +55°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11–14 V DC, 1A
Static Power Consumption	3 W
Maximum Power Consumption	6 W
NNI	1GPON
UNI	1GE + 1CATV
Indicators	POWER/PON/LOS/LAN/CATV
GPON Ports	● Class B+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310nm, DS 1490nm ● Wavelength blocking filter (WBF) ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Local switching/isolation based on Ethernet ports ● Transparent transmission of IPv6 packets at Layer 2
CATV Port	● Bandwidth 54-870 MHz ● Output resistance 75 ohms
