Huawei EchoLife EG8245Q ONT 2 POTS 4 GE 1 USB Wi-Fi

USD

5 5/5.0 Reviews Q/A 9 Sold/Mon
Detail:	Huawei EchoLife EG8245Q ONT, 2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Model:	EchoLife EG8245Q
Condition:	Factory Sealed New
Related:
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8245Q is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. It provides 4 GE+2 POTS+1 USB+2 WiFi (4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8245Q
Dimensions (W x D x H)	32 mm x 188 mm x 143 mm (without external antenna and pads)
Weight	About 320 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11–14 V DC, 1.5 A
Static Power Consumption	5.2 W
Maximum Power Consumption	18 W
NNI	GPON
UNI	2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS

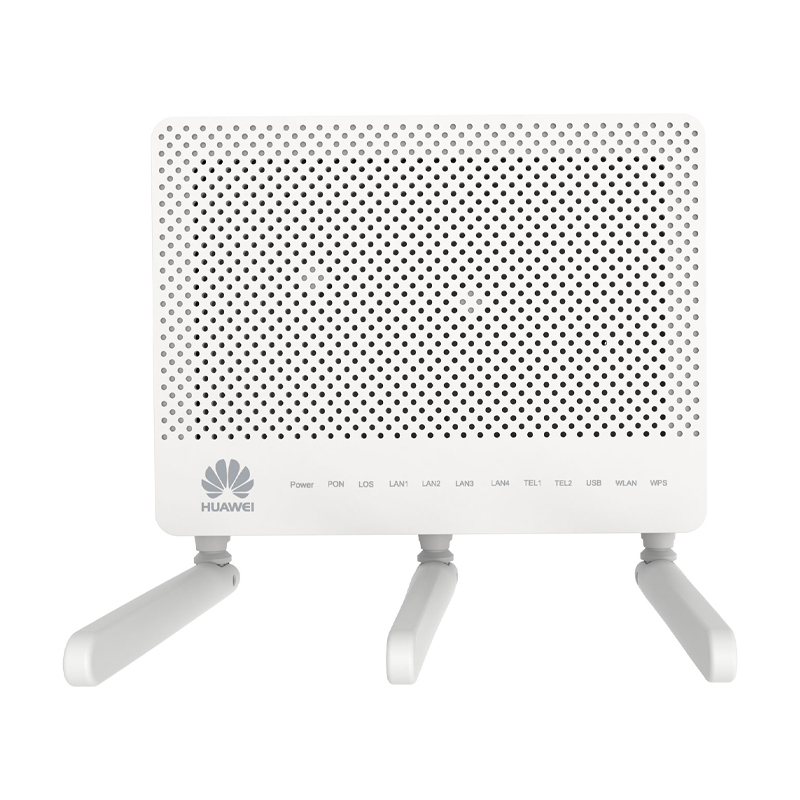

Figure 1 shows the appearance of EchoLife EG8245Q.

overview-echolife-eg8245q-datasheet

Product Details

Interface Parameters

GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 3 × 3 MIMO (2.4G&5G) ● Antenna gain: 2 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G&5G concurrent ● Air interface rate: 450 Mbit/s (2.4G); 1300 Mbit/s(5G)

Product Function

Smart Interconnection	● Smart Wi-Fi coverage ● SIP/H.248 auto-negotiation ● Any port, any service ● Parental control ● L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Smart Service	● Scheduled Wi-Fi shutdown ● Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing ● Association of one account with two POTS ports
Smart O&M	● IPTV video quality diagnosis ● eMDI ● Rogue ONT detection and isolation from the OLT ● Call emulation, and circuit test and loop-line test ● PPPoE/DHCP simulation testing ● WLAN emulation ● eSight management
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, and DS-Lite ● Static/Default routes ● Multiple services on one WAN port
Security	● SPI firewall ● Filtering based on MAC/IP/URL addresses
Multicast	● IGMP v2/v3 proxy/snooping ● MLD v1/v2 snooping
Common O&M	● OMCI/Web UI/TR069 ● Variable-length OMCI messages ● Dual-system software backup and rollback
Power Saving	● Indicator power saving ● COC V5
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation
Humanized design	● Support one button to turn off all LEDs

Get More Information

Do you have any question about the EchoLife EG8245Q?

Specific Data Sheet:

EchoLife EG8245Q Specification
Dimensions (W x D x H)	32 mm x 188 mm x 143 mm (without external antenna and pads)
Weight	About 320 g
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50–60 Hz
System Power Supply	11–14 V DC, 1.5 A
Static Power Consumption	5.2 W
Maximum Power Consumption	18 W
NNI	GPON
UNI	2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Installation mode	On the desk, or on the wall
Compliance certification	CE/WiFi
GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing & dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage ● File/Print sharing based on SAMBA ● DLNA function
WLAN	● IEEE 802.11 b/g/n (2.4G) ● IEEE 802.11 a/n/ac (5G) ● 3 × 3 MIMO (2.4G&5G) ● Antenna gain: 2 dBi ● WMM/Multiple SSIDs/WPS ● 2.4G&5G concurrent ● Air interface rate:450 Mbit/s (2.4G); 1300 Mbit/s(5G)
