Huawei EchoLife EG8240H ONT 4 GE 2 POTS

98
5
5/5.0
Q/A
8 Sold/Mon
Detail: Huawei EchoLife EG8240H ONT, 4GE + 2POTS
Model: EchoLife EG8240H
Condition: Factory Sealed New
Related:
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.24
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The Huawei EchoLife EG8240H is a bridging-type ONT used in the Huawei all-optical access solution. It implements ultra-broadband access through the GPON technology.

It provides 4 GE ports and 2 POTS ports. The high-performance forwarding capability ensures the service experience of voice, data, and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.


Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLife EG8240H

Dimensions (W x D x H)

176 mm x 138.5 mm x 28 mm

Weight

About 240 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 2 A

Static Power Consumption

4 W

Maximum Power Consumption

7.8W

Ports

4GE + 2POTS

Indicators

POWER/PON/LOS/LAN/TEL

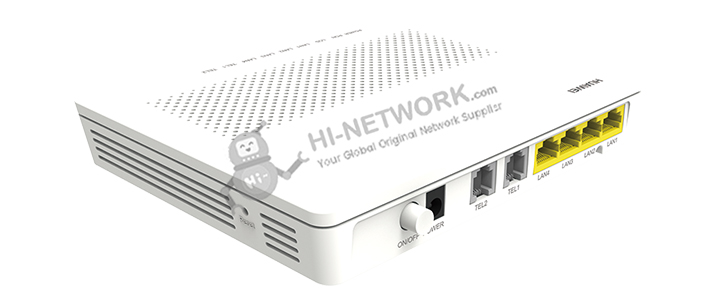

Figure 1 shows the appearance of EchoLife EG8240H.

overview-echolife-eg8240h-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Local switching/isolation based onEthernet ports

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)


Function List

Smart Service

● Association of one account with two POTS ports

● L2 forwarding: 1G uplink, 2G downlink

Smart Interconnection

● SIP/H.248 auto-negotiation

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

● Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Security

● MAC address filtering

Power Saving

● Indicator power saving

● Power consumption reduction of idle components in power-saving state

● CoC v5

Smart O&M

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● PPPoE/DHCP simulation testing

● Call emulation, and circuit test and loop-line test

Common O&M

● OMCI/Web UI

● Dual-system software backup and rollback

● 802.1ag Ethernet OAM

● Optical link measurement and diagnosis

● Loopback check

Multicast

● IGMP v2/v3 snooping

● MLD v1/v2 snooping

● Fast leave

● VLAN tag translation, transparent transmission, and removal for downstream multicast packets

● IGMP/MLD protocol packet rate limitation


Get More Information

Do you have any question about the EchoLife EG8240H?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife EG8240H Specification

Dimensions (W x D x H)

176 mm x 138.5 mm x 28 mm

Weight

About 240 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 2 A

Static Power Consumption

4 W

Maximum Power Consumption

7.8W

Ports

4GE + 2POTS

Indicators

POWER/PON/LOS/LAN/TEL

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310 nm, DS 1490 nm

● Wavelength blocking filter (WBF)

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Local switching/isolation based onEthernet ports

● Transparent transmission of IPv6 packets at Layer 2

POTS Port

● Maximum REN: 4

● G.711A/μ, G.729a/b, and G.722 encoding/decoding

● T.30/T.38/G.711 fax mode

● DTMF

● Emergency calls (with the SIP protocol)
